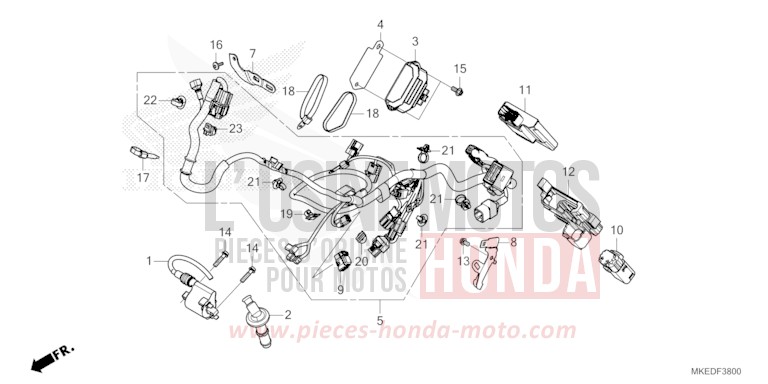

WIRE HARNESS for CRF450R EXTREME RED (R292) from 2021

WIRE HARNESS for CRF450R EXTREME RED (R292) from 2021
Reference
Product name
#1 30500-MKE-A01

COIL ASSY, IGNITION

Price €117.53
#2 30700-MKE-A01

CAP ASSY, NOISE SUPPRESSOR

Price €92.32
#3 31600-KZL-931

RECTIFIER ASSY, REGULATE

Price €174.52
#9 32606-K44-V01

CAP, DUMMY (WPC 4P 090 M) (RED)

Price €16.18
#10 38580-MKE-A61

RELAY COMP (WPC) (2P)

Price €80.86
#13 90020-GHB-610

BOLT, FLANGE, 6X10

Price €5.34
#14 90020-GHB-670

FLANGE BOLT, 6X22

Price €5.59
#15 90025-GHB-630

FLANGE BOLT, 6X14

Price €5.46
#16 90106-KSE-000

SCREW A HEAD CYLINDRICAL, 6X12

Price €6.08
#17 90650-KV6-003 i

STRIPE, CABLE 95MM

Price €9.46
#18 90679-SG9-E01

BAND, SAUGSCHLAUCH (BLACK)

Price €7.55
#19 91531-SR3-003

HOLDER, COUPLER (NATURAL) (1286MM)

Price €5.69
#20 91533-S04-003

CLIP D'ACCOUPLEMENT (NATUREL)

Price €5.05
#21 91540-S7S-003

CLIP OF STRIPE OF HARNESS (BLACK) (157.7MM)

Price €8.26
#23 91565-S0X-003

CLIP D'COUPLING (GREEN FONCE)

Price €6.83
#4 31610-MKE-AF0

BACK PLATE, REGULATOR

Price €27.36
#5 32100-MKE-AF0

HARNESS, WIRE

Price €324.71
#7 32110-MKE-AF0

STAY, CONNECTOR FR

Price €26.44
#8 32125-MKE-AF0

STAY, HARNESS (L)

Price €21.71
#11 38770-MKE-DF1 i

PGM-FI UNIT

Price €988.34
#12 38771-MKE-AF0

SUSPENSION, PGM-FI UNIT

Price €58.33
#22 91542-SWY-003

CLIP, HARNESS BAND (BLACK) (1589MM)

Price €5.80
