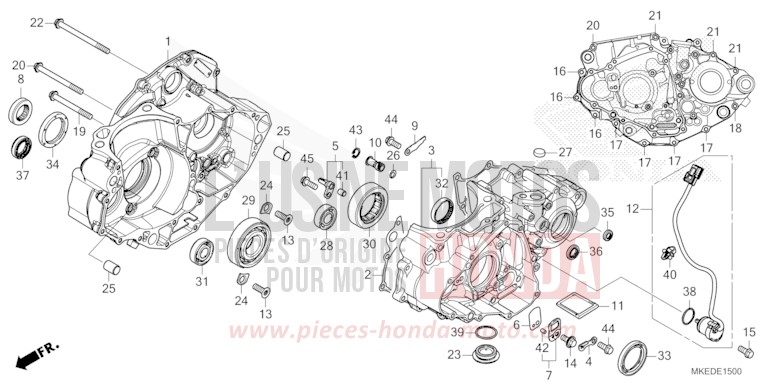

CRANKCASE for CRF450R EXTREME RED (R292) from 2021

CRANKCASE for CRF450R EXTREME RED (R292) from 2021
Reference
Product name
#1 11100-MKE-A70

CRANKCASE COMP, R

Price €1,276.22
#2 11191-MKE-A01

GASKET, CRANKCASE

Price €26.84
#4 11206-MKE-A00

PLATE, CAM CHAIN GUIDE

Price €6.53
#5 11210-MKE-A71

JET COMP, PISTON

Price €77.30
#6 11221-MKE-A00

VALVE, REED

Price €21.48
#7 11230-MKE-A00

STOPPER COMP, REED VALVE

Price €46.26
#8 13415-MKE-A00

COLLAR, CRANKSHAFT

Price €68.70
#9 15201-MKE-A00

PLATE, OIL GUIDE

Price €12.18
#10 15220-MEN-A30

VALVE ASSY, RELIEF

Price €61.07
#11 15421-MKE-A70

SCREEN, OIL FILTER

Price €9.80
#13 90001-MEN-850

SCREW, SPECIAL FLAT, 6X17

Price €7.08
#14 90019-MKE-A00

BOLT-WASHER, 6X14

Price €6.20
#15 90020-GHB-620

FLANGE BOLT, 6X12

Price €5.21
#16 90025-GHB-690

FLANGE BOLT, 6X28

Price €5.96
#17 90025-GHB-740

BOLT, FLANGE, 6X40

Price €6.58
#18 90025-GHB-760

BOLT, FLANGE, 6X50

Price €6.94
#19 90025-GHB-780

BOLT, FLANGE, 6X60

Price €7.31
#20 90025-GHB-800

BOLT, FLANGE, 6X70

Price €7.55
#21 90025-GHB-810

BOLT, FLANGE, 6X75

Price €7.91
#22 90025-GHB-820

BOLT, FLANGE, 6X80

Price €8.15
#23 90088-MKE-A70

BOLT, DRAIN, 30MM

Price €33.77
#24 90441-MEN-A30

PLATE, BEARING HOLDER

Price €13.06
#25 90701-MKE-A00

DOWEL PIN, 14X20

Price €11.34
#26 90751-GK1-003 i

O-RING, 85X17

Price €5.70
#28 91001-MEN-A31 i

BEARING, RADIAL BALL SPECIAL, 6202

Price €26.94
#29 91001-MKE-A71

BEARING, RADIAL BALL, 30X72X19

Price €86.41
#30 91002-MEY-671

BEARING, SPECIAL ROLLER (NTN)

Price €129.29
#31 91004-MKE-A01

BEARING, RADIAL BALL, 15X38X11

Price €44.80
#32 91022-KA4-741

BEARING, SHELL, 33X38X8 (NTN)

Price €28.21
#33 91201-MEB-671

OIL SEAL, 38X52X7 (ARAI)

Price €25.04
#34 91202-MKE-A01

OIL SEAL, 39X53X7

Price €26.66
#36 91203-KSP-911 i

GASKET SEALING OIL, 14X22X5 (ARAI)

Price €1.54
#37 91203-MKE-A01

OIL SEAL, 22X33X75

Price €13.81
#38 91305-KC1-850

O-RING, 16.5X2.5

Price €6.06
#40 91541-S0A-003

CLIP OF STRIPE OF HARNESS (BLACK) (145MM)

Price €6.83
#41 94301-08100 i

STUD, 8X10

Price €1.81
#42 94303-04065

STUD D'ASSEMBLAGE C, 4X6.5

Price €2.38
#43 94520-14000

CIRCLIP, INTERNAL, 14MM

Price €0.88
#44 96001-0601400 i

FLANGE BOLT, 6X14

Price €1.34
#45 96001-0601600 i

FLANGE BOLT, 6X16

Price €1.25
#3 11200-MKE-AF0 i

CRANKCASE COMP, L

Price €1,616.27
#12 35759-MKE-AF1

SWITCH ASSY, CHANGE

Price €193.08
#27 90875-733-003

PLUG, SEALING, 16 (ARAI)

Price €4.92
#35 91202-MKE-AF1

OIL SEAL, 7X145X5

Price €6.07
#39 91356-KWV-000

O-RING, 30MM

Price €3.18
