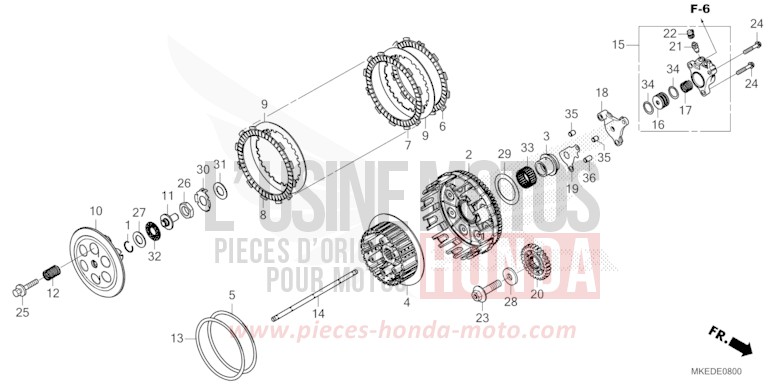

CLUTCH for CRF450R EXTREME RED (R292) from 2021

CLUTCH for CRF450R EXTREME RED (R292) from 2021
Reference
Product name
#1 13115-147-000

CLIP, PISTON PIN, 10MM

Price €7.56
#5 22125-MBN-670

SEAT, JUDDER SPRING

Price €14.33
#6 22201-MBN-670

DISK, CLUTCH FRICTION

Price €19.84
#7 22201-MEN-670 i

DISK B, CLUTCH FRICTION

Price €20.09
#8 22201-MEN-A10

DISK, CLUTCH FRICTION

Price €20.09
#9 22321-KZ3-690 i

PLATE B, CLUTCH

Price €20.74
#10 22351-MKE-A70

PLATE, CLUTCH PRESSURE

Price €86.32
#11 22352-MKE-A70

PIECE, CLUTCH LIFTER

Price €71.72
#13 22402-MBN-670

SPRING, JUDDER

Price €28.31
#20 23121-MKE-A00

GEAR, PRIMARY DRIVE (28T)

Price €146.57
#21 43352-568-003 i

SCREW, BLEEDER (NISSIN)

Price €9.41
#22 43353-461-771 i

CAP, BLEEDER

Price €9.12
#23 90013-MEY-670

BOLT, SPECIAL, 12X47

Price €18.86
#25 90024-MEN-A70

BOLT-WASHER, 6X35

Price €7.48
#26 90235-MEN-A30

NUT, 18MM

Price €18.08
#27 90401-MKE-A70

WASHER, 121X25X1

Price €6.80
#28 90402-KW6-960

WASHER, PLAIN, 12MM

Price €16.91
#30 90461-KZ3-J10

WASHER, LOCK, 18MM

Price €12.56
#31 90501-ML3-910

WASHER, 18X32X2

Price €7.48
#32 91001-147-003

BEARING, NEEDLE, 12MM (NTN)

Price €18.79
#35 94301-08100 i

DOWEL PIN, 8X10

Price €1.81
#36 94301-08140 i

DOWEL PIN, 8X14

Price €2.05
#2 22100-MKE-AF0

OUTER COMP, CLUTCH (66T)

Price €610.66
#3 22116-MKE-AF0

GUIDE, CLUTCH OUTER

Price €51.66
#4 22120-MKE-AF0

CENTER, CLUTCH

Price €140.06
#12 22401-MKE-AF0

SPRING, CLUTCH

Price €9.20
#14 22850-MKE-AF0

ROD COMP, CLUTCH LIFTER

Price €91.14
#15 22860-MKE-AF1

CYLINDER ASSY, SLAVE

Price €214.63
#16 22862-MKE-AF1

PISTON COMP, SLAVE CYLINDER

Price €135.90
#17 22863-MKE-AF1

SPRING, SLAVE CYLINDER

Price €10.28
#18 22866-MKE-AF0

HOLDER, SLAVE CYLINDER

Price €68.84
#19 22867-MKE-AF0

GASKET B, SLAVE CYLINDER

Price €6.91
#24 90020-GHB-710

BOLT, FLANGE, 6X32

Price €6.20
#29 90421-MKE-A50

WASHER, 23X43X3

Price €14.16
#33 91022-MB0-003

BEARING, NEEDLE, 30X35X17

Price €40.48
#34 91301-MKE-AF1

O-RING, 211X245

Price €5.70
