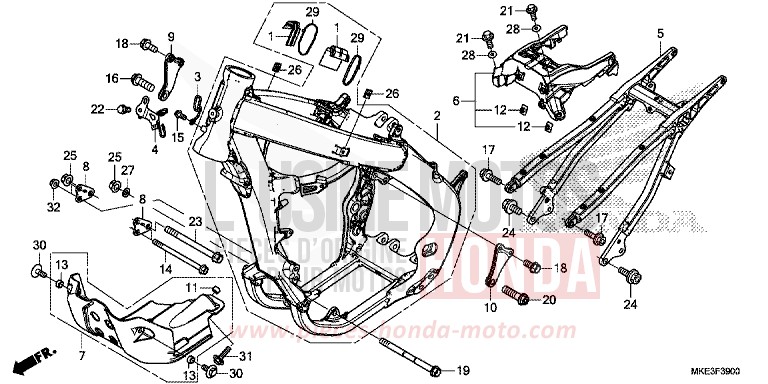

FRAME BODY for CRF450R EXTREME RED (R292) from 2017

FRAME BODY for CRF450R EXTREME RED (R292) from 2017
Reference
Product name
#1 17522-MKE-A00

RUBBER, TANK SIDE MOUNTING

Price €43.48
#3 50128-MKE-A00

GUIDE, CABLE

Price €24.68
#4 50184-MKE-A00

STAY, COUPLER

Price €27.36
#5 50200-MKE-A00

BODY COMP, RR FRAME

Price €1,129.76
#6 50250-MKE-A00

BASE ASSY, SEAT SUPPORT

Price €71.08
#7 50357-MKE-A00

GUARD, ENGINE

Price €124.08
#8 50405-MKE-A00

PLATE, FR ENGINE HANGER

Price €31.84
#9 50407-MKE-A10

PLATE, R HEAD HANGER

Price €179.29
#10 50408-MKE-A10

PLATE, L HEAD HANGER

Price €179.29
#11 61103-MGS-D30

COLLAR B, FR FENDER

Price €4.84
#12 61304-GFC-900

NUT, SPECIAL, 6X7

Price €4.48
#13 80123-MA1-640

COLLAR, MUDGUARD

Price €6.46
#14 90101-MEN-A30

BOLT, FLANGE, 8X121

Price €11.95
#15 90101-MEN-A60

BOLT, 6X12

Price €5.96
#16 90102-MEN-A30

BOLT, FLANGE, 10X30

Price €9.31
#17 90102-MKE-A00

BOLT, FLANGE, 8X28 (SH)

Price €7.96
#18 90103-MEB-670

BOLT, FLANGE, 8X18

Price €5.93
#19 90104-MKE-A00

BOLT, SPECIAL FLANGE, 10X134

Price €11.57
#20 90105-MEN-A30

BOLT, FLANGE, 10X37

Price €9.31
#21 90105-MEN-A60

BOLT, 6X18

Price €6.16
#22 90105-MKE-A00

BOLT, FLANGE, 7X14

Price €5.39
#23 90106-MEN-A30

BOLT, FLANGE, 10X123

Price €11.74
#24 90122-MEN-730

BOLT, 10X24

Price €6.96
#25 90302-KZ3-J40

NUT, FLANGE, 10MM

Price €6.32
#26 90303-MGZ-J40

NUT, CLIP, 6MM

Price €5.10
#27 90410-HC4-000

WASHER, 10MM

Price €4.80
#28 90501-KZ4-J20

COLLAR A

Price €10.15
#29 91560-MS8-600

TY-RAP, CABLE

Price €4.00
#30 93404-0601607

BOLT-WASHER, 6X16

Price €0.97
#31 93404-0602507

BOLT-WASHER, 6X25

Price €1.22
#32 94050-08000

NUT, FLANGE, 8MM

Price €2.40
#2 50010-MKE-A10

BODY SET, FRAME

Price €2,558.26
