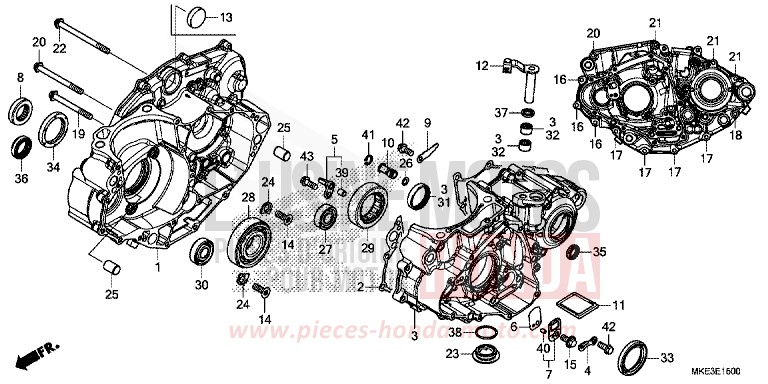

CRANKCASE for CRF450R EXTREME RED (R292) from 2017

CRANKCASE for CRF450R EXTREME RED (R292) from 2017
Reference
Product name
#10 15220-MEN-A30

VALVE ASSY, RELIEF

Price €44.92
#14 90001-MEN-850

SCREW, SPECIAL FLAT, 6X17

Price €6.01
#24 90441-MEN-A30

PLATE, BEARING HOLDER

Price €10.91
#26 90751-GK1-003

O-RING, 85X17

Price €3.83
#27 91001-MEN-A31

BEARING, RADIAL BALL SPECIAL, 6202

Price €39.25
#29 91002-MEY-671

BEARING, SPECIAL ROLLER (NTN)

Price €91.98
#31 91022-KA4-740

BEARING, SHELL, 33X38X8 (NTN)

Price €37.57
#32 91053-719-005

BEARING, NEEDLE, 12X16X10 (NTN)

Price €25.01
#33 91201-MEB-671

OIL SEAL, 38X52X7 (ARAI)

Price €22.43
#35 91203-KA4-771

OIL SEAL, 14X22X5 (NOK)

Price €7.72
#37 91205-MEB-671

OIL SEAL, 12X18X3 (ARAI)

Price €5.68
#38 91305-KF0-003

O-RING, 27X2 (ARAI)

Price €4.43
#39 94301-08100

DOWEL PIN, 8X10

Price €1.78
#40 94303-04065

PIN C, DOWEL, 4X65

Price €2.33
#41 94520-14000

CIRCLIP, INTERNAL, 14MM

Price €0.86
#42 96001-0601400

BOLT, FLANGE, 6X14

Price €1.32
#43 96001-0601600

BOLT, FLANGE, 6X16

Price €1.22
#1 11100-MKE-A01

CRANKCASE COMP, R

Price €1,174.82
#2 11191-MKE-A01

GASKET, CRANKCASE

Price €22.42
#3 11200-MKE-A00

CRANKCASE COMP, L

Price €1,095.78
#4 11206-MKE-A00

PLATE, CAM CHAIN GUIDE

Price €3.82
#5 11210-MKE-A00

JET COMP, PISTON

Price €55.46
#6 11221-MKE-A00

VALVE, REED

Price €18.60
#7 11230-MKE-A00

STOPPER COMP, REED VALVE

Price €34.33
#8 13415-MKE-A00

COLLAR, CRANKSHAFT

Price €58.21
#9 15201-MKE-A00

PLATE, OIL GUIDE

Price €11.10
#11 15421-MKE-A00

SCREEN, OIL FILTER

Price €26.27
#12 22810-MKE-A00

LEVER COMP, CLUTCH LIFTER

Price €91.85
#13 28151-MKE-A01

CAP, STARTER MOTOR

Price €18.64
#15 90019-MKE-A00

BOLT-WASHER, 6X14

Price €4.75
#16 90051-MKE-A00

BOLT, FLANGE, 6X28 (LNSH)

Price €7.27
#17 90052-MKE-A00

BOLT, FLANGE, 6X40 (LNSH)

Price €7.27
#18 90053-MKE-A00

BOLT, FLANGE, 6X50 (LNSH)

Price €7.50
#19 90054-MKE-A00

BOLT, FLANGE, 6X60 (LNSH)

Price €6.31
#20 90055-MKE-A00

BOLT, FLANGE, 6X70 (LNSH)

Price €7.90
#21 90056-MKE-A00

BOLT, FLANGE, 6X75 (LNSH)

Price €7.90
#22 90057-MKE-A00

BOLT, FLANGE, 6X80 (LNSH)

Price €7.90
#23 90088-MKE-A00

BOLT, DRAIN, 30MM

Price €27.85
#25 90701-MKE-A00

DOWEL PIN, 14X20

Price €10.03
#28 91001-MKE-A01

BEARING, RADIAL BALL, 30X72X19

Price €39.25
#30 91004-MKE-A01

BEARING, RADIAL BALL, 15X38X11

Price €39.25
#34 91202-MKE-A01

OIL SEAL, 39X53X7

Price €26.20
#36 91203-MKE-A01

OIL SEAL, 22X33X75

Price €10.60
