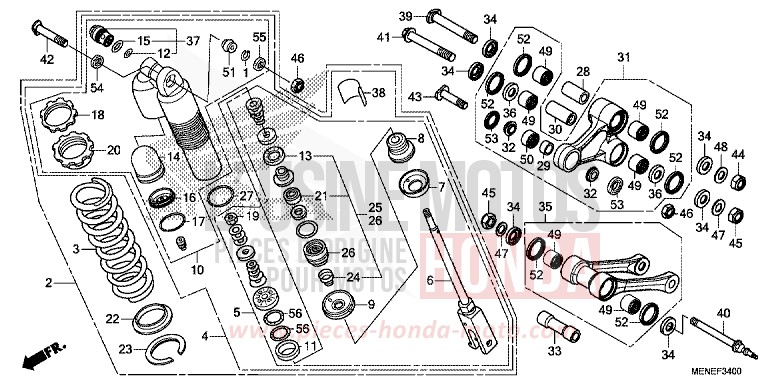

REAR CUSHION for CRF450R EXTREME RED (R292) from 2014

REAR CUSHION for CRF450R EXTREME RED (R292) from 2014
Reference
Product name
#1 41405-HA7-670

RING, STOPPER

Price €7.08
#3 52401-MEN-A31

SPRING, RR CUSHION (54N/MM)

Price €342.46
#3 52402-MEN-A31

SPRING, RR CUSHION (52N/MM)

Price €342.46
#3 52403-MEN-A31

SPRING, RR CUSHION (56N/MM)

Price €172.09
#6 52421-MEN-A41

ROD COMP

Price €323.81
#7 52422-MEN-A71

CAP, BUMPER RUBBER

Price €49.38
#8 52423-MEN-A51

RUBBER, BUMPER

Price €48.88
#9 52424-MEN-A31

CAP, CASE

Price €43.82
#11 52428-MEN-A31

RING, PISTON

Price €41.38
#12 52433-MAC-741

O-RING, 215X15

Price €5.58
#13 52434-KSR-711

RUBBER, STOPPER

Price €14.72
#14 52434-MEN-A51

BLADDER

Price €48.79
#15 52435-MAC-741

O-RING, 255X20

Price €7.57
#16 52435-MEN-A31

CAP, BLADDER

Price €83.16
#17 52436-MEN-A31

RING, SNAP

Price €9.65
#18 52437-MEN-A31

NUT, ADJUST

Price €24.36
#19 52438-KA3-731

NUT, HEX, 12MM

Price €6.53
#20 52438-MEN-A31

SEAT, SPRING UPPER

Price €25.20
#21 52439-KSR-711

SEAL, OIL

Price €24.00
#22 52439-MEN-A31

WASHER, SPRING SEAT

Price €26.24
#23 52440-MEN-A31

SEAT, SPRING LOWER

Price €50.88
#24 52441-MEN-A31

SEAL, DUST

Price €18.29
#25 52446-MEN-A31

OIL SEAL SET

Price €39.20
#26 52447-MEN-A31

CASE ASSY, ROD GUIDE

Price €142.28
#27 52448-MEN-A31

RING, SNAP

Price €9.65
#28 52463-KZ4-J40

COLLAR C, CUSHION ARM

Price €18.22
#29 52464-KRN-710

COLLAR D, CUSHION ARM

Price €28.37
#30 52464-MEN-A30

COLLAR B, CUSHION

Price €23.53
#31 52465-MEN-A70

ARM SUB ASSY, CUSHION

Price €551.30
#32 52466-KRN-710

COLLAR D, CUSHION ARM SIDE

Price €12.56
#33 52473-MEN-A30

COLLAR, CONNECTING ROD

Price €45.23
#34 52475-KZ4-J20

COLLAR, LINK SIDE

Price €19.27
#35 52475-MEN-A70

ROD SUB ASSY, CUSHION CONNECTING

Price €381.43
#36 52476-KZ4-J20

WASHER, THRUST

Price €16.66
#38 87516-MEN-E30

LABEL, RR DAMPER

Price €11.42
#39 90130-MEN-840

BOLT, LINK, 12X82

Price €24.64
#40 90131-MEN-A70

BOLT, LINK, 12X116

Price €34.16
#41 90132-MEN-A30

BOLT, LINK, 12X87

Price €26.80
#42 90152-MEB-750

BOLT, CUSHION UPPER, 10X53

Price €10.25
#43 90153-KZ4-710

BOLT, CUSHION LOWER, 10X435

Price €9.20
#44 90305-KRN-A30

NUT, U, 12MM

Price €15.83
#45 90306-KBP-901 i

NUT, U, 12MM

Price €13.76
#46 90306-KZ4-711

NUT, U, 10MM

Price €7.45
#47 90501-KRN-710

WASHER, PLAIN, 12MM

Price €14.33
#48 90501-KZ4-J40

WASHER, PLAIN, 12MM

Price €7.48
#49 91051-KSC-003

BEARING, NEEDLE, 20X26X15

Price €26.62
#50 91074-KRN-711 i

BEARING, NEEDLE, 19X26X13

Price €26.62
#51 91074-MAC-741

BEARING, SPHERICAL, 10

Price €43.39
#52 91262-KZ3-731

DUST SEAL, 25X32X4

Price €9.06
#53 91351-KRN-711 i

DUST SEAL, 175X26X3

Price €5.81
#54 91351-KZ3-731 i

DUST SEAL, RR CUSHION PIVOT

Price €4.88
#55 91351-MAC-671 i

DUST SEAL, 16X26X3

Price €5.18
#56 91351-MEN-A31

O-RING

Price €8.58
#2 52400-MEN-E81

CUSHION ASSY, RR

Price €1,165.63
#4 52410-MEN-E81

DAMPER COMP, RR

Price €1,008.77
Contact us
#5 52420-MEN-A81

ROD COMP, PISTON

Price €411.94
#10 52425-MEN-A81

CASE COMP, RR

Price €606.38
#37 52486-MEN-A81

ADJUSTER, COMPRESSION DAMPING FORCE

Price €117.90
