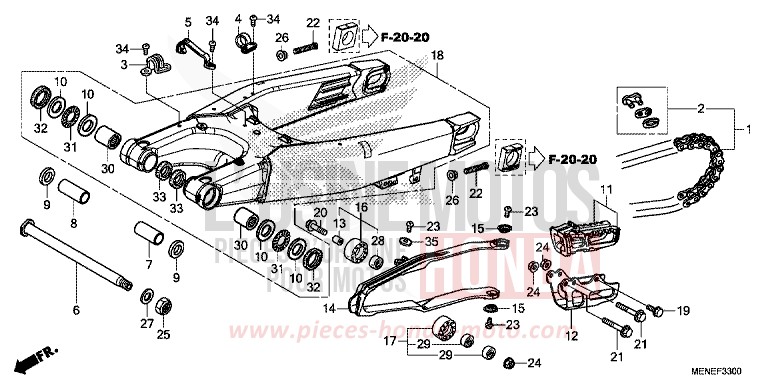

SWINGARM for CRF450R EXTREME RED (R292) from 2013

SWINGARM for CRF450R EXTREME RED (R292) from 2013
Reference
Product name
#1 40530-MEN-A31 i

CHAIN, DRIVE (DAIDO) (DID520DMA4-116RB)

Price €327.07
#1 40530-MEN-A32

CHAIN, DRIVE (RK EXCEL) (RK520TXZ-116RJ)

Price €327.07
#1 40540-KRN-A31 i

CHAIN, DRIVE (DAIDO) (DID520DMA4-120RB)...

Price €437.09
#1 40540-KRN-A32

CHAIN, DRIVE (RK EXCEL) (RK520TXZ-120RJ)...

Price €437.09
#2 40531-KRN-A12 i

JOINT, DRIVE CHAIN (RK EXCEL)

Price €19.69
#2 40531-KRN-A31

JOINT, DRIVE CHAIN (DAIDO)

Price €21.25
#3 43468-MCJ-000

GUIDE, BRAKE HOSE

Price €15.79
#6 52101-KZ4-J40 i

SHAFT, SWINGARM PIVOT

Price €66.28
#9 52143-KZ4-J40

COLLAR, SWINGARM PIVOT SIDE

Price €13.43
#10 52143-MEN-A30

WASHER, SWINGARM SIDE THRUST

Price €7.07
#11 52146-MEN-A50

GUIDE SET, CHAIN

Price €69.96
#12 52147-MEN-J00

PLATE, CHAIN GUIDE

Price €97.74
#13 52160-MEN-000

COLLAR, CHAIN TENSIONER

Price €8.26
#15 52171-KR6-000 i

WASHER, CHAIN SLIDER

Price €6.13
#17 52176-MEN-A30

ROLLER COMP, CHAIN LOWER (38MM)

Price €91.86
#19 90101-MEN-A60

BOLT, 6X12

Price €5.96
#21 90103-MEN-A60

BOLT, 6X45

Price €7.67
#22 90105-MEN-000

BOLT, HEX, 8X475

Price €8.50
#23 90115-KV3-700

SCREW, PAN, 5X8

Price €6.08
#24 90301-473-003 i

NUT, U, 6MM (FUSE RASHI)

Price €11.29
#25 90305-KZ3-B01 i

NUT, U, HEX 14MM

Price €11.29
#26 90309-357-000 i

NUT, HEX, 8MM

Price €11.54
#27 90501-GBL-730 i

WASHER, 14MM

Price €10.44
#28 91011-GCT-003 i

BEARING, RADIAL BALL, 608UU

Price €32.32
#29 91051-KRN-A31 i

BEARING, RADIAL BALL, 608UU

Price €34.30
#30 91071-MJ0-003 i

BEARING, NEEDLE, 22X29X30 (NTN)

Price €42.76
#31 91072-KZ3-861

BEARING, NEEDLE THRUST

Price €17.83
#32 91253-KZ3-861

DUST SEAL, 30X37X4

Price €10.49
#33 91283-ML7-003

DUST SEAL, 22X29X4 (ARAI)

Price €10.32
#34 93500-050080A i

SCREW, PAN, 5X8

Price €0.95
#35 94103-05700

WASHER, PLAIN, 5MM

Price €0.78
#4 43468-MEN-A70

GUIDE A, BRAKE HOSE

Price €12.14
#5 43469-MEN-A70

GUIDE B, BRAKE HOSE

Price €13.67
#7 52141-MEN-A70

COLLAR, SWINGARM, 476MM

Price €38.50
#8 52142-MEN-A70

COLLAR, SWINGARM, 524MM

Price €36.77
#14 52170-MEN-A70

SLIDER, CHAIN

Price €148.94
#16 52175-MEN-A70

ROLLER COMP, CHAIN (36MM)

Price €98.26
#18 52200-MEN-A70

SWINGARM SUB ASSY, RR

Price €1,807.68
#20 90101-MEN-A70

BOLT, FLANGE, 8X32

Price €9.55
