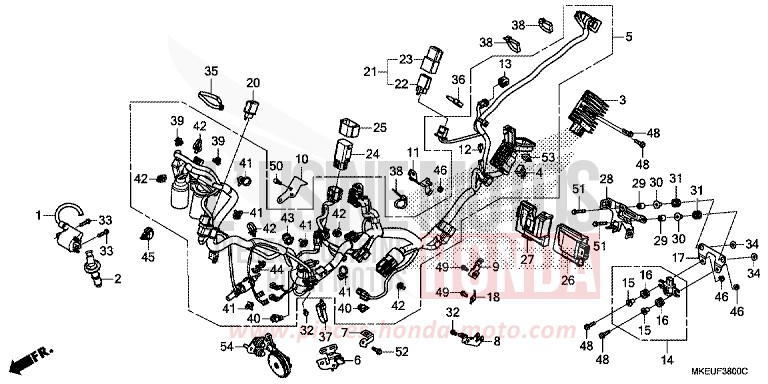

WIRE HARNESS for CRF450L EXTREME RED (R292) from 2020

WIRE HARNESS for CRF450L EXTREME RED (R292) from 2020
Reference
Product name
#1 30500-MKE-A01

COIL ASSY, IGNITION

Price €117.53
#2 30700-MKE-A01

CAP ASSY, NOISE SUPPRESSOR

Price €92.32
#3 31600-K87-A01

RECTIFIER ASSY, REGULATE

Price €149.84
#4 31730-MAS-601 i

DIODENEINHEIT, DREIWEG (SUMITOMO)

Price €22.76
#5 32100-MKE-D41 i

HARNESS, WIRE

Price €757.64
#6 32111-MKE-A50

STAY, HARNESS

Price €22.00
#7 32123-MKE-D40

STAY, RR STOP SWITCH CONNECTOR

Price €17.53
#8 32125-MKE-A50

STAY, HARNESS (L)

Price €17.53
#9 32126-MKE-A50

STAY, CONNECTOR (L)

Price €22.00
#10 32127-MKE-A50

STAY, CABLE

Price €22.00
#11 32129-MKE-A50

STAY, HARNESS

Price €22.00
#12 32146-S84-003

CONNECTION, DIODE (2P) (3A)

Price €24.08
#13 32606-GEV-761

CAP, FAUX (4P) (ROUGE)

Price €10.52
#14 35160-MKE-A51

SENSOR ASSY, BANK ANGLE

Price €194.78
#15 35161-MKE-A51

COLLAR

Price €12.44
#16 35163-MGC-003

RUBBER GROMMET

Price €10.55
#17 35165-MKE-A50

STAY, BANK ANGLE SENSOR

Price €26.44
#18 35711-MKE-A50

STAY, SIDE STAND SWITCH CORD

Price €13.00
#20 38301-KZZ-J01

RELAIS COMP. CLIGNOTANT (LED)

Price €85.42
#21 38500-GC7-612 i

RELAY ASSY, STARTER

Price €57.42
#22 38501-GN2-014 i

STARTER MOTOR RELAY COMP. (MITSUBA)

Price €52.51
#23 38506-GC7-611

STARTER MOTOR RELAY BRACKET (MITSUBA)

Price €13.60
#24 38580-HP5-601 i

RELAY, WATER PROOF (15AX2)

Price €76.36
#25 38585-MKE-A11

CUSHION, RELAY

Price €20.06
#26 38770-MKE-D42

PGM-FI UNIT

Price €1,084.22
#27 38771-MKE-A00

SUSPENSION, PGM-FI UNIT

Price €33.30
#28 50124-MKE-A00

BRACKET, ECU

Price €51.95
#29 50125-MKE-A50

COLLAR, ECU BRACKET

Price €11.70
#30 61104-MKE-A50

COLLAR

Price €11.33
#31 84703-MKE-A50

RUBBER, MOUNT

Price €12.44
#32 90020-GHB-610

BOLT, FLANGE, 6X10

Price €5.34
#33 90020-GHB-680

BOLT, FLANGE, 6X25

Price €5.96
#34 90535-MKE-A00

WASHER, 61MM

Price €7.20
#35 90620-SB2-003 i

STRIPE OF ELECTRIC HARNESS

Price €14.64
#36 90650-KV6-003 i

STRIPE, CABLE 95MM

Price €9.46
#37 90650-MA6-720

ELECTRIC HARNESS STRIPE

Price €10.44
#38 90652-KT1-771 i

WIRE BAND (BLACK)

Price €9.29
#39 91533-SDA-003

CLAMP KOPPLER (BEIGE)

Price €5.05
#40 91535-TA0-003

CLIP D'COUPLING (BROWN FONCE)

Price €11.84
#41 91540-S7S-003

CLIP OF STRIPE OF HARNESS (BLACK) (157.7MM)

Price €8.26
#42 91541-S0A-003

CLIP OF STRIPE OF HARNESS (BLACK) (145MM)

Price €6.83
#43 91542-SWY-003

CLIP, HARNESS BAND (BLACK) (1589MM)

Price €5.80
#44 91558-P5G-A01

CLIP, TUBE, 11MM (BLACK)

Price €9.37
#45 91558-SD5-003

CLIP OF HARNESS ELECTRIC (BLACK)

Price €9.10
#46 94050-06080 i

FLANGE NUT, 6MM

Price €1.20
#48 95701-0602208 i

FLANGE BOLT, 6X22

Price €1.25
#49 96001-0601000 i

FLANGE BOLT, 6X10

Price €1.42
#50 96001-0602000 i

FLANGE BOLT, 6X20

Price €1.25
#51 96001-0603800

BOLT, FLANGE, 6X38

Price €2.53
#52 96300-0601800 i

FLANGE BOLT, 6X18

Price €1.42
#53 98200-41000

MINI-FUSE (10A)

Price €1.25
#54 38100-MKE-AE0

HORN ASSY

Price €155.00
