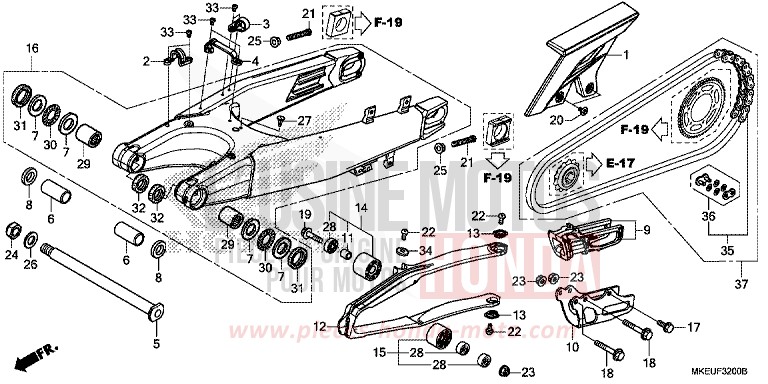

SWINGARM for CRF450L EXTREME RED (R292) from 2020

SWINGARM for CRF450L EXTREME RED (R292) from 2020
Reference
Product name
#1 40510-MKE-A50

CASE, DRIVE CHAIN

Price €145.57
#2 43468-KRN-A90

GUIDE, BRAKE HOSE

Price €17.76
#3 43468-KRN-C90

GUIDE A, BRAKE HOSE

Price €10.86
#4 43469-MKE-A00

GUIDE B, BRAKE HOSE

Price €11.63
#5 52101-KZ4-J40 i

SHAFT, SWINGARM PIVOT

Price €66.28
#6 52141-MKE-A00

COLLAR, SWINGARM, (45MM)

Price €39.30
#7 52143-MEN-A30

WASHER, SWINGARM SIDE THRUST

Price €7.07
#8 52143-MKE-A60

COLLAR, SWINGARM PIVOT SIDE

Price €21.50
#9 52146-MKE-A50

GUIDE SET, CHAIN

Price €59.56
#10 52147-MEN-J00

PLATE, CHAIN GUIDE

Price €97.74
#11 52160-MEN-000

COLLAR, CHAIN TENSIONER

Price €8.26
#12 52170-MKE-A50 i

SLIDER COMP, CHAIN

Price €158.00
#13 52171-KR6-000 i

WASHER, CHAIN SLIDER

Price €6.13
#14 52175-MKE-A00

ROLLER COMP, CHAIN (34MM)

Price €90.11
#15 52176-MKE-A00

ROLLER COMP, CHAIN LOWER (34MM)

Price €90.11
#16 52200-MKE-A50ZB

SWINGARM SUB ASSY, RR NH900L (NH900L NEUTRAL...

Price €1,871.27
#17 90020-GHB-620

BOLT, FLANGE, 6X12

Price €5.21
#18 90020-GHB-750

BOLT, FLANGE, 6X45

Price €6.82
#19 90101-MEN-A70

BOLT, FLANGE, 8X32

Price €9.55
#20 90103-MKE-A00

BOLT, SPECIAL, 6MM

Price €7.91
#21 90105-MEN-000

BOLT, HEX, 8X475

Price €8.50
#22 90115-KV3-700

SCREW, PAN, 5X8

Price €6.08
#23 90301-473-003 i

NUT, U, 6MM (FUSE RASHI)

Price €11.29
#24 90305-KZ3-B01 i

NUT, U, HEX 14MM

Price €11.29
#25 90309-357-000 i

NUT, HEX, 8MM

Price €11.54
#26 90501-GBL-730 i

WASHER, 14MM

Price €10.44
#27 90666-SA0-003M4

CLIP, TRIM, 5MM NH900L (NH900L NEUTRAL BLACK)

Price €6.97
#28 91051-KRN-A31 i

BEARING, RADIAL BALL, 608UU

Price €34.30
#29 91071-MJ0-003 i

BEARING, NEEDLE, 22X29X30 (NTN)

Price €42.76
#30 91072-KZ3-861

BEARING, NEEDLE THRUST

Price €17.83
#31 91251-MKE-A01

DUST SEAL, 30X37X3

Price €12.22
#32 91252-MKE-A01

DUST SEAL, 22X29X3

Price €10.15
#33 93500-050080G i

SCREW, PAN, 5X8

Price €0.85
#34 94103-05700

WASHER, PLAIN, 5MM

Price €0.78
#35 40540-MKE-A12

CHAIN, DRIVE (RK) (RK520EXU-120-LJFZ) (STANDARD...

Price €378.28
#36 40531-MKE-A12

JOINT, DRIVE CHAIN (RK) (SEAL TYPE)

Price €20.09
#37 06406-MKE-D40

CHAIN KIT, DRIVE (520-13&amp51T)

Price €184.86
