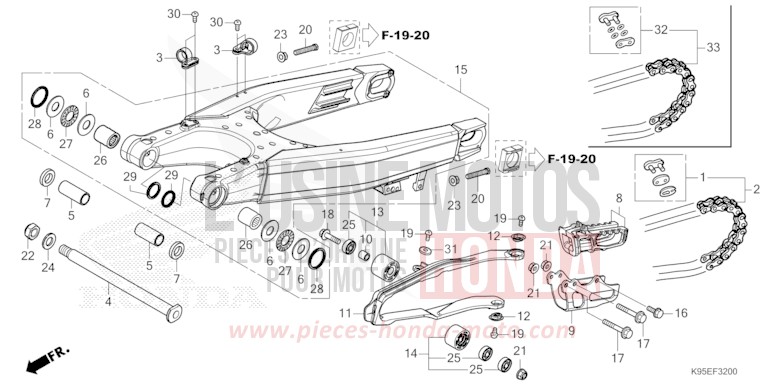

SWINGARM for CRF250RX EXTREME RED (R292) from 2022

SWINGARM for CRF250RX EXTREME RED (R292) from 2022
Reference
Product name
#3 43468-KRN-C90

GUIDE A, BRAKE HOSE

Price €10.86
#4 52101-KZ4-J40 i

SHAFT, SWINGARM PIVOT

Price €66.28
#5 52141-MKE-A70

COLLAR, SWINGARM (47MM)

Price €39.30
#6 52143-MEN-A30

WASHER, SWINGARM SIDE THRUST

Price €7.07
#7 52143-MKE-A60

COLLAR, SWINGARM PIVOT SIDE

Price €21.50
#8 52146-MKE-A01 i

GUIDE SET, CHAIN

Price €59.56
#9 52147-MEN-J00

PLATE, CHAIN GUIDE

Price €97.74
#10 52160-MEN-000

COLLAR, CHAIN TENSIONER

Price €8.26
#11 52170-MKE-AF0

SLIDER, CHAIN

Price €121.97
#12 52171-KR6-000 i

WASHER, CHAIN SLIDER

Price €6.13
#13 52175-MKE-A00

ROLLER COMP, CHAIN (34MM)

Price €90.11
#14 52176-MKE-A00

ROLLER COMP, CHAIN LOWER (34MM)

Price €90.11
#15 52200-MKE-AF0

SWINGARM SUB ASSY, RR

Price €1,843.75
#16 90020-GHB-620

BOLT, FLANGE, 6X12

Price €5.21
#17 90020-GHB-750

BOLT, FLANGE, 6X45

Price €6.82
#18 90101-MEN-A70

BOLT, FLANGE, 8X32

Price €9.55
#19 90101-MKE-A70

SCREW, PAN, 5X8

Price €2.99
#20 90105-MEN-000

BOLT, HEX, 8X475

Price €8.50
#21 90301-473-003 i

NUT, U, 6MM (FUSE RASHI)

Price €11.29
#22 90305-KZ3-B01 i

NUT, U, HEX 14MM

Price €11.29
#23 90309-357-000 i

NUT, HEX, 8MM

Price €11.54
#24 90501-GBL-730 i

WASHER, 14MM

Price €10.44
#25 91051-KRN-A31 i

BEARING, RADIAL BALL, 608UU

Price €34.30
#26 91071-MJ0-003 i

BEARING, NEEDLE, 22X29X30 (NTN)

Price €42.76
#27 91072-KZ3-861

BEARING, NEEDLE THRUST

Price €17.83
#28 91251-MKE-A01

DUST SEAL, 30X37X3

Price €12.22
#29 91252-MKE-A01

DUST SEAL, 22X29X3

Price €10.15
#30 93500-050080G i

SCREW, PAN, 5X8

Price €0.85
#31 94103-05700

WASHER, PLAIN, 5MM

Price €0.78
#32 40535-K95-A51

JOINT DE CHAINE DE COMMANDE (ZJ) (DAIDO)

Price €27.10
#33 40540-K95-A51

CHAINE DE COMMANDE (DID520MXV5-120ZB)

Price €371.58
