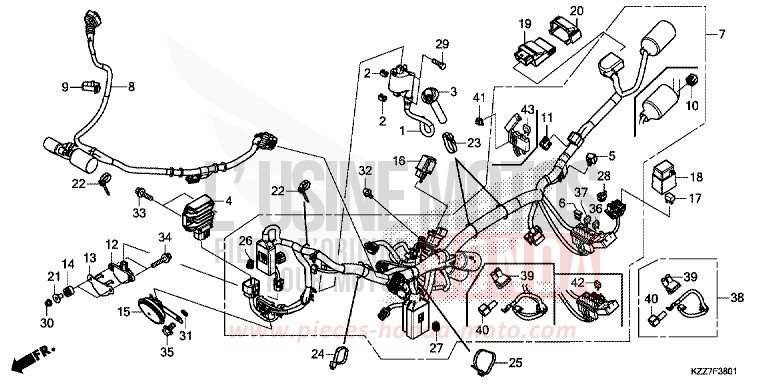

WIRE HARNESS (CRF250RL/RLA) for CRF250RLA EXTREME RED (R292) from 2019

WIRE HARNESS (CRF250RL/RLA) for CRF250RLA EXTREME RED (R292) from 2019
Reference
Product name
#1 30510-KZZ-901

COIL COMP, IGNITION

Price €43.73
#2 30520-GFM-900

SPACER OF COIL D'IGNITION

Price €9.52
#3 30700-KZZ-901

CAP ASSY, NOISE SUPPRESSOR

Price €47.51
#4 31600-KZZ-J01

RECTIFIER ASSY, REGULATE

Price €211.56
#5 31700-MM8-610

RECTIFICATEUR COMP. SILICIUM

Price €42.31
#6 31730-MAS-601 i

DIODENEINHEIT, DREIWEG (SUMITOMO)

Price €22.76
#7 32100-KZZ-J80

HARNESS, WIRE

Price €331.27
#8 32103-KZZ-J80

SUB HARNESS, FR

Price €108.29
#9 32161-404-000 i

STRIPE B1 OF CABLE

Price €9.78
#11 32606-GEV-761

CAP, FAUX (4P) (ROUGE)

Price €10.52
#12 35160-KVS-751

ASSY. SENSEUR, ANGLE D'INCLINAISON (M6)

Price €228.97
#13 35161-KZZ-900

STAY, BANK ANGLE SENSOR

Price €6.13
#14 37244-MM4-000

RUBBER OF MOUNTING OF SPEEDOMETER

Price €13.22
#15 38110-KYJ-901

HORN COMP (HIGH)

Price €37.60
#16 38301-KZZ-J01

RELAIS COMP. CLIGNOTANT (LED)

Price €85.42
#17 38501-KWN-901

RELAIS COMP. ENERGIE (MICRO ISO 4P) (OMRON)

Price €8.48
#18 38506-KZZ-900

COVER, RELAY (2P)

Price €6.76
#19 38770-KZZ-J81

PGM-FI UNIT

Price €225.26
#20 38771-KTY-D30

CUSHION, PGM-FI UNIT

Price €7.57
#21 77302-473-000

COLLAR, PILLION SEAT

Price €8.26
#22 90650-KW3-000

WIRE BAND

Price €9.46
#23 90651-KV6-003 i

STRIPE, CABLE 165MM (BLACK)

Price €9.78
#24 90651-MA6-720

ELECTRIC HARNESS STRIPE

Price €10.44
#25 90679-SG9-E01

BAND, SAUGSCHLAUCH (BLACK)

Price €7.55
#41 91533-S5A-003

CLIP, COUPLER (NATURAL)

Price €12.65
#27 91534-SWA-003

CLIP D'COUPLING (GRIS FONCE)

Price €12.65
#28 91565-S0X-003

CLIP D'COUPLING (GREEN FONCE)

Price €6.83
#29 92101-060204J i

BOLT HEX., 6X20

Price €1.81
#30 94050-06000 i

FLANGE NUT, 6MM

Price €0.79
#31 94102-08000

PLAIN WASHER, 8MM

Price €1.24
#32 95701-0601200 i

FLANGE BOLT, 6X12

Price €1.15
#33 95701-0602200 i

FLANGE BOLT, 6X22

Price €1.42
#34 95701-0603000 i

FLANGE BOLT, 6X30

Price €1.42
#35 95701-0801400 i

FLANGE BOLT, 8X14

Price €1.25
#42 98200-41000

MINI-FUSE (10A)

Price €1.25
#37 98200-42000

MINI-FUSE (20A)

Price €1.25
#39 32406-MFF-D00

COVER, STARTER MAGNETIC TERMINAL

Price €67.79
#40 32414-GAG-000

COVER, BATTERY TERMINAL

Price €3.60
#43 98200-43000

MINI-FUSE (30A)

Price €1.85
