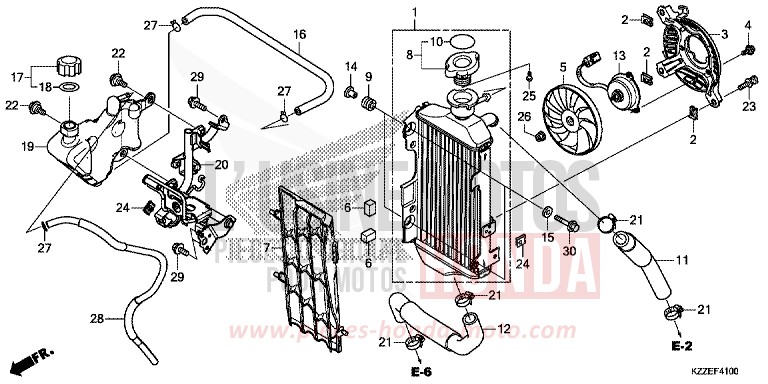

RADIATOR for CRF250RA EXTREME RED (R292) from 2017

RADIATOR for CRF250RA EXTREME RED (R292) from 2017
Reference
Product name
#1 19010-KZZ-G41

RADIATOR COMP

Price €624.43
#2 19014-KEA-003

NUT, POSE (6MM)

Price €7.20
#3 19015-KZZ-902 i

SHROUD COMP

Price €22.28
#4 19016-KEA-003

KEGELKOPFBOLT, 4X85

Price €6.52
#5 19020-KVZ-631

FAN COMP. REFROIDISSEMENT

Price €94.07
#6 19022-KZZ-900

RUBBER, RADIATOR

Price €4.14
#7 19034-KZZ-900

GRILLE, RADIATOR

Price €25.06
#8 19037-KZZ-G41

CAP COMP, RADIATOR (TRAD)

Price €40.24
#9 19051-KRN-000

RUBBER, RADIATOR MOUNTING

Price €10.15
#10 19046-MCA-G61

LABEL OF CAP OF RADIATOR (T.WHEEL)

Price €14.70
#11 19062-KZZ-900

HOSE, RADIATOR UPPER

Price €17.84
#12 19067-KZZ-900

HOSE, RADIATOR LOWER

Price €23.69
#13 19080-KZZ-J01

MOTOR ASSY, FAN (TRAD)

Price €134.87
#14 19091-KZZ-900

COLLAR, RADIATOR MOUNTING

Price €3.28
#15 19092-KZZ-900

WASHER OF MOUNTING OF RADIATOR

Price €3.28
#16 19101-KZZ-J00

TUBE, RESERVE TANK

Price €16.73
#17 19105-KZZ-900

CAP ASSY, RESERVE TANK

Price €6.80
#18 19107-MG8-000

GASKET OF TANK OF RESERVE

Price €5.45
#19 19110-KZZ-J00

TANK, RADIATOR RESERVE

Price €35.17
#20 19150-KZZ-J00

STAY COMP, RESERVE TANK

Price €85.99
#21 19517-ML7-691 i

CLIP, TUBE, 22-29MM

Price €18.73
#22 90110-KZZ-900

BOLT, FLANGE, 6MM

Price €2.98
#23 90120-KCR-003

BOLT WITH WASHER, 6X16

Price €6.82
#24 90303-KZZ-J00

NUT, CLIP, 6MM

Price €3.16
#25 93901-22020

SCREW, TAPPING, 3X6

Price €0.64
#26 90315-MFL-003

FLANGE NUT, 3MM

Price €6.38
#27 95002-02100 i

PIPE CLIP (B10)

Price €1.08
#28 19102-KZZ-J00

TUBE COMP, RESERVE TANK (DRAIN)

Price €16.31
#29 95701-0601000 i

FLANGE BOLT, 6X10

Price €1.15
#30 96001-0602800 i

FLANGE BOLT, 6X28

Price €1.50
