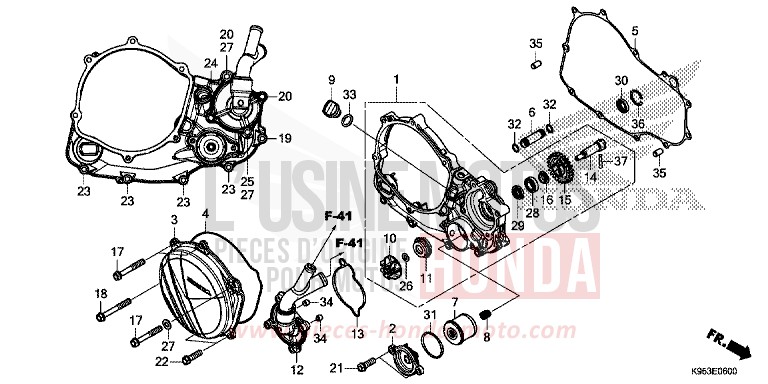

RIGHT CRANKCASE COVER/WATER PUMP for CRF250R EXTREME RED (R292) from 2018

RIGHT CRANKCASE COVER/WATER PUMP for CRF250R EXTREME RED (R292) from 2018
Reference
Product name
#2 11333-MKE-A00

COVER, OIL FILTER

Price €70.44
#7 15412-MEN-671 i

FILTER COMP, ENGINE OIL

Price €13.21
#8 15414-MEB-670

SPRING OF FILTER A OIL

Price €7.32
#9 15611-K95-A20

CAP, OIL FILLER

Price €27.20
#11 19217-KRN-A61

SEAL, MECHANICAL

Price €107.38
#19 90023-MKE-A00

BOLT, FLANGE, 6X35 (SH)

Price €6.94
#20 90103-MEN-A60

BOLT, 6X45

Price €7.67
#21 90105-MEN-A60

BOLT, 6X18

Price €5.96
#22 90106-MEN-A60

BOLT, 6X20

Price €6.20
#23 90107-MEN-A60

BOLT, 6X28

Price €6.82
#24 90108-MEN-A60

BOLT, 6X30

Price €6.82
#25 90109-MEN-A70

BOLT, 6X25

Price €7.31
#26 90447-KE1-000

WASHER SEALING, 7MM

Price €5.71
#27 90463-ML7-000 i

WASHER SEALING, 6.5MM

Price €4.62
#28 91002-MEN-A31

BEARING, BALL, 12X24X6

Price €25.33
#29 91201-148-003 i

GASKET D'ETANCHEITE D'OIL, 12X22X5 (ARAI)

Price €6.58
#31 91302-PA9-003 i

O-RING, 39.8X2.2 (ARAI)

Price €7.20
#33 91307-KRN-A41

D-RING, 14X3

Price €12.22
#34 91320-KE1-000

DOWEL PIN, 8X7

Price €7.91
#35 94301-08140 i

STUD, 8X14

Price €2.05
#1 11300-K95-A20

COVER ASSY, R CRANKCASE

Price €817.76
#3 11351-K95-A20

COVER, CLUTCH

Price €141.34
#4 11352-K95-A20

GASKET, CLUTCH COVER

Price €20.05
#5 11394-K95-A21

GASKET, R COVER

Price €46.10
#6 15104-K95-A20

PIPE, OIL PATH

Price €24.24
#10 19215-K95-A20

IMPELLER, WATER PUMP

Price €80.56
#12 19220-K95-A20

COVER COMP, WATER PUMP

Price €137.96
#13 19226-K95-A20

GASKET, WATER PUMP

Price €9.04
#14 19241-K95-A20

SHAFT, WATER PUMP

Price €106.82
#15 19242-K95-A20

GEAR, WATER PUMP DRIVEN (24T)

Price €44.10
#16 19243-K95-A20

COLLAR

Price €7.34
#17 90010-K95-A20

BOLT, FLANGE, 6X40 (SH)

Price €6.82
#18 90011-K95-A20

BOLT, FLANGE, 6X45 (SH)

Price €6.82
#30 91201-HM3-A61 i

OIL SEAL, 14X22X5 (ARAI)

Price €7.08
#32 91302-PJ4-004 i

O-RING, 96X19 (ARAI)

Price €5.29
#36 94520-24000

CIRCLIP INNER, 24MM

Price €1.25
#37 96220-40238

ROULEAU, 4X23.8

Price €0.64
