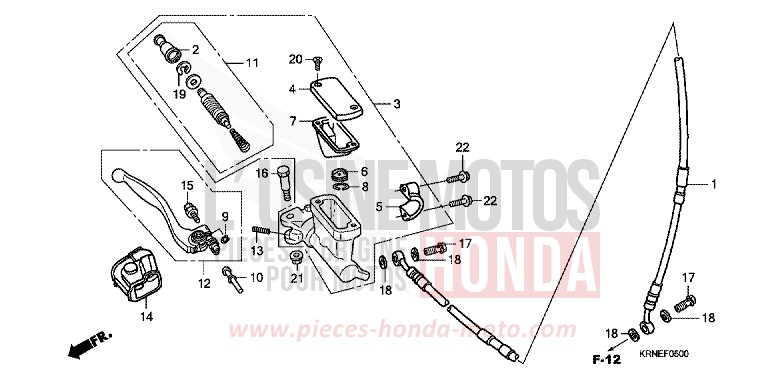

FR. BRAKE MASTER CYLINDER for CRF250R EXTREME RED (R292) from 2013

FR. BRAKE MASTER CYLINDER for CRF250R EXTREME RED (R292) from 2013
Reference
Product name
#1 45125-KRN-A31

HOSE COMP, FR BRAKE

Price €170.34
#2 45504-MEN-J01

BOOT COMP

Price €17.47
#3 45510-MEN-J01

CYLINDER SUB ASSY, FR MASTER

Price €237.43
#4 45513-KCE-671

CAP, MASTER CYLINDER

Price €40.96
#5 45517-GW0-751

HOLDER, MASTER CYLINDER

Price €24.96
#6 45518-MEN-J01

SEPARATOR COMP

Price €15.68
#7 45520-KA3-731

DIAPHRAGM

Price €19.97
#8 45523-KA3-731

RING

Price €5.58
#9 45523-MEB-003

RING

Price €2.22
#10 45525-MEN-J01

ROD, PUSH

Price €18.61
#11 45530-MEN-J01

PISTON SET, MASTER CYLINDER

Price €81.65
#12 53171-MEN-J01

LEVER COMP, R STEERING HANDLE

Price €26.29
#13 53174-KN5-006

SPRING, BRAKE LEVER

Price €4.70
#14 53176-MEN-J01

COVER, R HANDLE LEVER

Price €13.28
#15 90111-MEB-003

BOLT SET, ADJUSTING

Price €8.95
#16 90114-MEN-J01

BOLT, HANDLE LEVER

Price €9.19
#17 90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

Price €13.14
#18 90545-300-000

WASHER, OIL BOLT

Price €6.41
#19 90651-MA5-671

CIRCLIP

Price €5.83
#20 93600-040121G

SCREW, FLAT, 4X12

Price €0.76
#21 94050-06000

NUT, FLANGE, 6MM

Price €0.78
#22 90102-MEN-A60

BOLT, 6X22

Price €7.12
