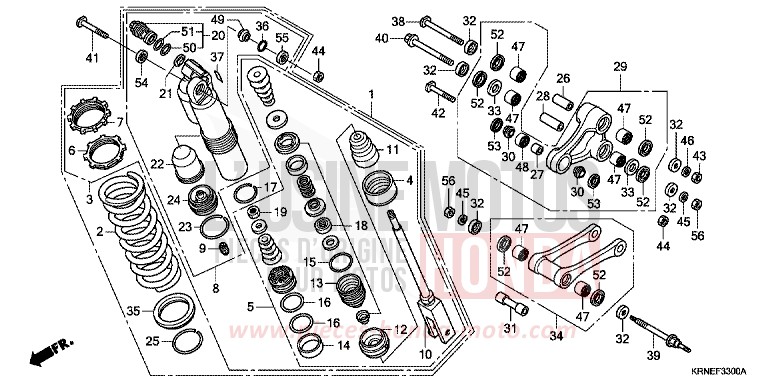

REAR CUSHION for CRF250R EXTREME RED (R292) from 2010

REAR CUSHION for CRF250R EXTREME RED (R292) from 2010
Reference
Product name
#2 52401-MEN-A21

SPRING, RR CUSHION (SHOWA) (539N/MM,55KGF/MM)

Price €172.09
#2 52403-KRN-A21

SPRING, RR CUSHION (SHOWA) (500N/MM,51KGF/MM)

Price €231.50
#2 52403-MEB-751

SPRING, RR CUSHION (SHOWA) (559N/MM,57KGF/MM)

Price €236.71
Contact us
#2 52403-MEN-A21

SPRING, RR CUSHION (SHOWA) (520N/MM,53KGF/MM)

Price €256.88
#6 52422-KRN-A41

ADJUSTER, SPRING

Price €46.63
#7 52423-KRN-A41

NUT, ADJUSTER

Price €40.22
#9 52425-381-771

CAP, AIR VALVE

Price €10.39
#11 52427-MEB-751

RUBBER, STOPPER

Price €26.82
#12 52428-KRN-711

PLATE, END

Price €22.48
#13 52429-KRN-A41

CASE COMP, ROD GUIDE

Price €75.28
#14 52431-KZ3-J31

RING, PISTON

Price €30.22
#15 52434-KZ3-J21

O-RING, 35X437

Price €8.40
#16 52434-KZ3-J31

O-RING, 425X20

Price €7.97
#17 52435-KZ3-J21

RING, STOPPER

Price €7.28
#18 52436-KRN-A41

OIL SEAL SET

Price €34.01
#19 52438-KA4-741

NUT, HEX, 12MM

Price €4.64
#25 52455-KZ3-J21

RING, STOPPER

Price €12.41
#26 52463-KZ4-J40

COLLAR C, CUSHION ARM

Price €13.33
#27 52464-KRN-710

COLLAR D, CUSHION ARM

Price €21.80
#28 52464-MEN-A30

COLLAR B, CUSHION

Price €16.34
#29 52465-MEN-A30

ARM SUB ASSY, CUSHION

Price €338.06
#30 52466-KRN-710

COLLAR D, CUSHION ARM SIDE

Price €10.67
#31 52473-MEN-A30

COLLAR, CONNECTING ROD

Price €36.05
#32 52475-KZ4-J20

COLLAR, LINK SIDE

Price €13.85
#33 52476-KZ4-J20

WASHER, THRUST

Price €10.80
#34 52479-MEN-A30

ROD SUB ASSY, CUSHION CONNECTING

Price €188.93
#35 52486-KZ3-J21

SEAT, SPRING

Price €33.53
#36 52487-KA4-831

RING, STOPPER

Price €7.73
#37 87516-MEN-E30

LABEL, RR DAMPER

Price €10.62
#38 90130-MEN-840

BOLT, LINK, 12X82

Price €19.70
#39 90131-MEN-A30

BOLT, LINK, 12X116

Price €26.12
#40 90132-MEN-A30

BOLT, LINK, 12X87

Price €18.83
#41 90152-MEB-750

BOLT, CUSHION UPPER, 10X53

Price €8.78
#42 90153-KZ4-710

BOLT, CUSHION LOWER, 10X435

Price €8.16
#56 90305-KRN-A30

NUT, U, 12MM

Price €11.84
#44 90306-KZ4-711

NUT, U, 10MM

Price €5.41
#45 90501-KRN-710

WASHER, PLAIN, 12MM

Price €11.24
#46 90501-KZ4-J40

WASHER, PLAIN, 12MM

Price €8.29
#47 91051-KSC-003

BEARING, NEEDLE, 20X26X15

Price €27.17
#48 91074-KRN-711

BEARING, NEEDLE, 19X26X13

Price €27.17
#49 91074-MAC-741

BEARING, SPHERICAL, 10

Price €38.56
#50 91256-KZ3-731

O-RING, 215X15

Price €2.92
#51 91257-KZ3-891

O-RING, 262X19

Price €3.98
#52 91262-KZ3-731

DUST SEAL, 25X32X4

Price €7.40
#53 91351-KRN-711

DUST SEAL, 175X26X3

Price €7.99
#54 91351-KZ3-731

DUST SEAL, RR CUSHION PIVOT

Price €5.58
#55 91351-MAC-671

DUST SEAL, 16X26X3

Price €7.90
#1 52400-KRN-E41

CUSHION ASSY, RR (SHOWA)

Price €1,098.74
#3 52410-KRN-E41

DAMPER COMP, RR

Contact us
#4 52419-KRN-A41

STOPPER, SPRING SEAT

Price €25.88
#5 52421-KRN-A41

ROD COMP, PISTON

Contact us
#8 52425-KRN-E41

CASE COMP, DAMPER

Contact us
#10 52426-KRN-A41

ROD COMP

Price €582.26
#20 52440-KRN-A41

ADJUSTER, COMPRESSION DAMPING FORCE

Price €123.07
Contact us
#21 52445-KRN-A41

COLLAR, ORIFICE

Price €14.52
#22 52451-KRN-A41

BLADDER

Price €34.33
#23 52452-KRN-A41

RING, STOPPER

Price €9.31
#24 52453-KRN-A41

CAP COMP, CHAMBER

Price €35.92
