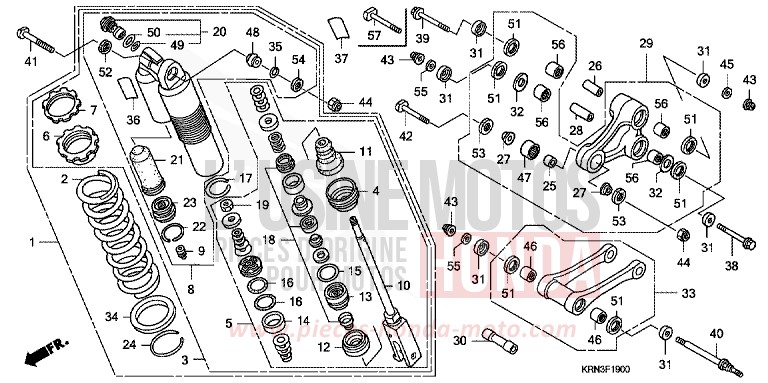

REAR CUSHION for CRF250R EXTREME RED (R292) from 2006

Reference

Product name

Unit price

# 52402-MEB-751

SPRING, RR CUSHION (SHOWA) (520N/MM,53KGF/MM)

# 52401-KZ3-J51

SPRING, RR CUSHION (SHOWA) (500N/MM,51KGF/MM)

€236.39

# 52401-MEB-751

SPRING, RR CUSHION (SHOWA) (539N/MM,55KGF/MM)

€236.71

# 52403-MEB-751

SPRING, RR CUSHION (SHOWA) (559N/MM,57KGF/MM)

€236.71

# 52419-KZ3-J21

STOPPER, SPRING SEAT

€38.69

# 52422-KZ3-J31

ADJUSTER, SPRING

€48.01

# 52423-KZ3-J21

NUT, ADJUSTER

€36.96

# 52425-KRN-731

CASE COMP, DAMPER

# 52425-381-771

CAP, AIR VALVE

€12.72

# 52426-KRN-711

ROD COMP

€647.52

# 52427-MEB-751

RUBBER, STOPPER

€34.68

# 52428-KRN-711

PLATE, END

€37.67

# 52429-KZ3-J41

CASE COMP, ROD GUIDE

€48.90

# 52431-KZ3-J31

RING, PISTON

€35.27

# 52434-KZ3-J21

O-RING, 35X437

€9.79

# 52434-KZ3-J31

O-RING, 425X20

€9.47

# 52435-KZ3-J21

RING, STOPPER

€7.91

# 52436-MEN-671

OIL SEAL SET

€38.78

# 52438-KA4-741

NUT, HEX, 12MM

€6.38

# 52440-MEN-671

ADJUSTER, COMPRESSION DAMPING FORCE

€185.48

# 52451-KRN-711

BLADDER

€45.88

# 52452-KS7-831

RING, STOPPER

€7.63

# 52453-KRN-711

CAP COMP, CHAMBER

€66.23

# 52455-KZ3-J21

RING, STOPPER

€16.85

# 52464-KRN-710

COLLAR D, CUSHION ARM

€28.37

# 52463-KZ4-J40

COLLAR C, CUSHION ARM

€18.22

# 52466-KRN-710

COLLAR D, CUSHION ARM SIDE

€12.56

# 52464-KZ4-J20

COLLAR B, CUSHION

€19.62

# 52465-KRN-710

ARM SUB ASSY, CUSHION

€509.17

# 52473-KZ4-J20

COLLAR A, CONNECTING ROD

€37.88

# 52475-KZ4-J20

COLLAR, LINK SIDE

€19.27

# 52476-KZ4-J20

WASHER, THRUST

€16.66

# 52486-KZ3-J21

SEAT, SPRING

€43.96

# 52487-KA4-831

RING, STOPPER

€8.05

# 87516-KZ1-600

LABEL, RR DAMPER WARNING

€15.01

# 87516-KZ1-881 i

LABEL, RR DAMPER WARNING (FRENCH)

€15.01

# 90131-KRN-710

BOLT, LINK, 12X120

€31.76

# 90152-MEB-750

BOLT, CUSHION UPPER, 10X53

€10.25

# 90153-KZ4-710

BOLT, CUSHION LOWER, 10X435

€9.20

# 90306-KBP-901 i

NUT, U, 12MM

€13.76

# 90306-KZ4-711

NUT, U, 10MM

€7.45

# 90501-KZ4-J40

WASHER, PLAIN, 12MM

€7.48

# 91051-KSC-003

BEARING, NEEDLE, 20X26X15

€26.62

# 91074-KRN-711 i

BEARING, NEEDLE, 19X26X13

€26.62

# 91074-MAC-741

BEARING, SPHERICAL, 10

€43.39

# 91256-KZ3-731

O-RING, 215X15

€3.48

# 91257-KZ3-891

O-RING, 262X19

€3.84

# 91262-KZ3-731

DUST SEAL, 25X32X4

€9.06

# 91351-KZ3-731 i

DUST SEAL, RR CUSHION PIVOT

€4.88

# 91351-KRN-711 i

DUST SEAL, 175X26X3

€5.81

# 91351-MAC-671 i

DUST SEAL, 16X26X3

€5.18

# 90501-KRN-710

WASHER, PLAIN, 12MM

€14.33

# 52400-KRN-851

CUSHION ASSY, RR (SHOWA)

# 52410-KRN-851

DAMPER COMP, RR

# 52421-KRN-851

ROD COMP, PISTON

# 52479-KRN-840

ROD SUB ASSY, CUSHION CONNECTING

€327.29

# 90131-MEN-840

BOLT, LINK, 12X92

€23.08

# 90130-MEN-840

BOLT, LINK, 12X82

€24.64

#1 40530-KZ3-J31 i

CHAIN, DRIVE (DAIDO) (DID520DMA2-114RB)...

€310.08

#1 40540-MEN-003 i

CHAIN, DRIVE (DAIDO) (DID520DMA2-120RB)...

€437.09

#2 40531-KZ4-J31

JOINT, DRIVE CHAIN (DAIDO)

€19.82

#3 43468-KZ3-B00

GUIDE, RR BRAKE HOSE

€11.12

#4 52101-KZ4-J40 i

SHAFT, SWINGARM PIVOT

€66.28

#5 52141-KZ3-J40

COLLAR, SWINGARM, 49MM

€34.69

#6 52141-KZ4-J40

COLLAR, SWINGARM PIVOT (59MM)

€31.07

#7 52143-KZ3-860

WASHER, SWINGARM SIDE

€6.13

#8 52143-KZ4-J40

COLLAR, SWINGARM PIVOT SIDE

€13.43

#9 52146-KRN-711 i

GUIDE, CHAIN

€63.59

#10 52148-MEN-000

COLLAR, CHAIN GUIDE

€12.44

#11 52147-KRN-710

PLATE, CHAIN GUIDE

€105.20

#12 52160-MEN-000

COLLAR, CHAIN TENSIONER

€8.26

#13 52170-KRN-710

SLIDER, CHAIN

€124.22

#14 52171-KR6-000 i

WASHER, CHAIN SLIDER

€6.13

#15 52175-MEN-000

ROLLER COMP, CHAIN (42MM)

€89.65

#16 52176-KRN-710

ROLLER COMP, CHAIN LOWER (34MM)

€87.43

#17 52200-KRN-840

SWINGARM SUB ASSY, RR

#18 90105-MEN-000

BOLT, HEX, 8X475

€8.50

#19 90115-KV3-700

SCREW, PAN, 5X8

€6.08

#20 90124-MEB-770

BOLT, FLANGE, 8X32

€6.46

#23 90301-473-003 i

NUT, U, 6MM (FUSE RASHI)

€11.29

#22 90305-KZ3-B01 i

NUT, U, HEX 14MM

€11.29

#24 90309-357-000 i

NUT, HEX, 8MM

€11.54

#25 90501-GBL-730 i

WASHER, 14MM

€10.44

#26 91011-GCT-003 i

BEARING, RADIAL BALL, 608UU

€32.32

#27 91071-MJ0-003 i

BEARING, NEEDLE, 22X29X30 (NTN)

€42.76

#28 91072-KZ3-861

BEARING, NEEDLE THRUST

€17.83

#29 91253-KZ3-861

DUST SEAL, 30X37X4

€10.49

#30 91283-ML7-003

DUST SEAL, 22X29X4 (ARAI)

€10.32

#31 93500-050080A i

SCREW, PAN, 5X8

€0.95

#32 93500-050080G i

SCREW, PAN, 5X8

€0.85

#33 94103-05700

WASHER, PLAIN, 5MM

€0.78

#34 96001-0601200 i

BOLT, FLANGE, 6X12

€1.25

#35 96001-0605000 i

BOLT, FLANGE, 6X50

€1.74

REAR CUSHION for CRF250R EXTREME RED (R292) from 2006
