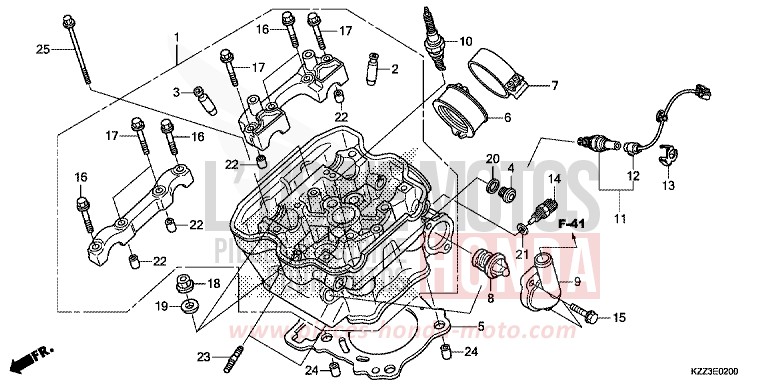

CYLINDER HEAD for CRF250L EXTREME RED (R292) from 2015

CYLINDER HEAD for CRF250L EXTREME RED (R292) from 2015
Reference
Product name
#1 12010-KZZ-921

HEAD ASSY, CYLINDER

Price €706.52
#2 12204-KYJ-305

GUIDE, IN VALVE (OS) (EXHAUST SIDE)

Price €31.15
#3 12205-KYJ-305

GUIDE, EX VALVE (OS)

Price €31.15
#4 12207-KYJ-900

BOLT, SEALING, 12MM

Price €9.14
#5 12251-KYJ-901

GASKET, CYLINDER HEAD (METAL GASKET)

Price €36.16
#6 16211-KZZ-900

INSULATOR, THROTTLE BODY

Price €32.74
#7 16217-KYJ-900

BAND, INSULATOR

Price €7.02
#8 19300-KGF-911

THERMOSTAT

Price €109.84
#9 19321-KZZ-900

COVER, THERMOSTAT

Price €56.39
#10 31916-MEH-003

PLUG, SPARK (SIMR8A9) (NGK)

Price €37.81
#11 36532-KZZ-901

SENSOR, OXYGEN

Price €267.59
#12 36533-KZZ-900

CORD COMP, OXYGEN SENSOR

Price €88.79
#13 36538-KPP-T00

COVER, O2 SENSOR

Price €12.74
#14 37870-KRJ-901

SENSOR ASSY, WATER TEMPERATURE

Price €75.68
#15 90011-KYJ-900

BOLT, FLANGE, 6X22 (NSHF)

Price €3.74
#16 90017-KYJ-900

BOLT, FLANGE, 6X32

Price €3.74
#17 90019-KYJ-900

BOLT, FLANGE, 6X395

Price €3.74
#18 90204-634-000

NUT, FLANGE, 10MM

Price €6.38
#19 90410-GCC-000

WASHER, 10MM

Price €1.36
#20 90418-KYJ-900

WASHER, 122X17X15

Price €3.96
#21 90454-MC7-000

WASHER, SPECIAL, 12MM

Price €5.53
#22 91105-KSP-910

DOWEL PIN, 8X14

Price €2.81
#22 94301-08140

DOWEL PIN, 8X14

Price €2.02
#23 92900-080223E

BOLT, STUD, 8X22

Price €2.72
#24 94301-12160

PIN A, DOWEL, 12X16

Price €2.04
#25 95701-0612000

BOLT, FLANGE, 6X120

Price €1.57
