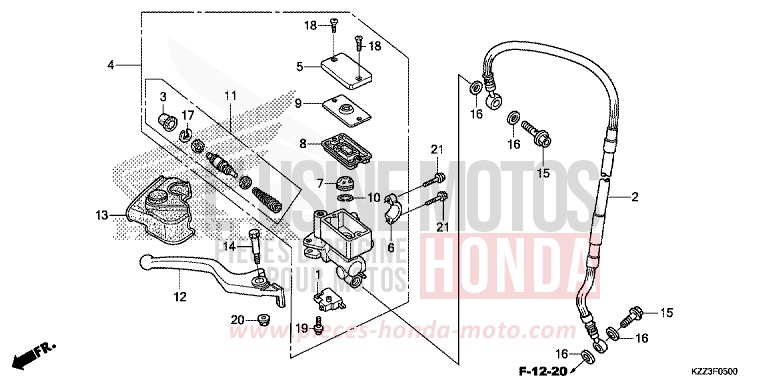

FRONT BRAKE MASTER CYLINDER for CRF250L EXTREME RED (R292) from 2013

FRONT BRAKE MASTER CYLINDER for CRF250L EXTREME RED (R292) from 2013
Reference
Product name
#1 35340-MGS-D31

ASSY. SWITCH STOP FRONT

Price €52.01
#3 45504-410-003 i

BOOT COMP.

Price €17.71
#5 45513-HA2-006 i

CAP OF MASTER CYLINDER

Price €42.83
#6 45517-166-006 i

SUPPORT OF MASTER CYLINDER

Price €28.03
#7 45518-MEN-J01

SEPARATEUR COMP.

Price €19.44
#8 45520-MG7-006 i

MEMBRANE

Price €19.44
#9 45521-HA2-006 i

PLATE, MEMBRANE

Price €18.22
#10 45523-KA3-731

RING

Price €6.80
#11 45530-471-831 i

SET OF MASTER CYLINDER

Price €81.41
#14 90114-166-006 i

BOLT OF PIVOT OF LEVER HANDLE

Price €10.25
#15 90145-MS9-612 i

BOLT OIL, 10X22 (SAGA)

Price €16.85
#16 90545-300-000 i

WASHER OF BOLT OIL

Price €5.30
#17 90651-MA5-671 i

CIRCLIP

Price €7.63
#18 93600-040121G i

SCREW A HEAD PLATE, 4X12

Price €0.77
#19 93893-0401217 i

SCREW A HEAD A WASHER, 4X12

Price €1.08
#20 94050-06000 i

FLANGE NUT, 6MM

Price €0.79
#21 96001-0602207 i

FLANGE BOLT, 6X22

Price €1.74
#2 45125-KZZ-901

HOSE COMP, FR BRAKE

Price €86.03
#4 45510-KZZ-901

CYLINDER SUB ASSY, FR BRAKE MASTER (NISSIN)

Price €160.46
#12 53175-KZZ-900

LEVER, R STEERING HANDLE

Price €23.69
#13 53176-KZZ-901

COVER, R HANDLE LEVER

Price €8.98
