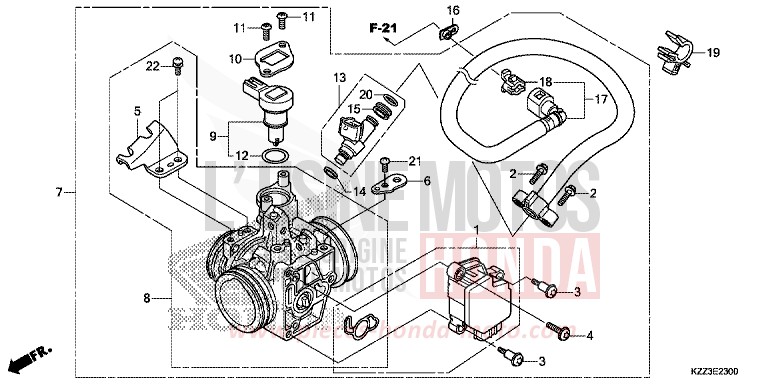

THROTTLE BODY for CRF250L EXTREME RED (R292) from 2013

THROTTLE BODY for CRF250L EXTREME RED (R292) from 2013
Reference
Product name
#2 16080-KPH-701

BOLT, FLANGE, 5X20

Price €5.21
#3 16081-KYJ-901

SCREW, TORX, 5X87

Price €6.37
#4 16082-KYJ-901

SCREW, TORX, 5X17

Price €5.35
#5 16169-MFR-671

STAY, WIRE

Price €58.37
#6 16196-HP6-A01

STAY, HARNESS CLAMPER

Price €33.91
#9 16430-KYJ-901

VALVE SET, IDLE AIR CONTROL

Price €221.80
#10 16432-MFE-641

PLATE, IDLE AIR CONTROL VALVE

Price €22.27
#11 16433-HN8-A61 i

SCREW, TORX

Price €6.94
#12 16435-HN8-A61

O-RING, 178X19

Price €33.77
#13 16450-MFE-641 i

INJECTOR ASSY, FUEL

Price €346.61
#14 16472-MCW-000

SEAL RING, INJECTOR

Price €7.13
#15 16473-P7A-004 i

CUSHION RING, INJECTOR

Price €6.85
#16 16719-MEW-920

DAMPER, CONNECTOR

Price €10.45
#18 17711-MGE-003 i

RETAINER

Price €14.57
#19 90611-KZZ-901

CLAMP, HOSE (BLACK)

Price €3.97
#20 91301-P7A-004

O-RING, 78X19

Price €5.41
#21 93500-050101H

SCREW, PAN, 5X10

Price €0.64
#22 93892-0501218 i

SCREW-WASHER, 5X12

Price €1.34
#1 16060-KYJ-901

SENSOR SET

Price €168.12
#7 16400-KZZ-901

BODY ASSY, THROTTLE (GQ32A A)

Price €528.14
#8 16410-KZZ-901

BODY SET

Price €558.29
#17 17526-KZZ-901

HOSE COMP, FUEL FEED

Price €143.88
