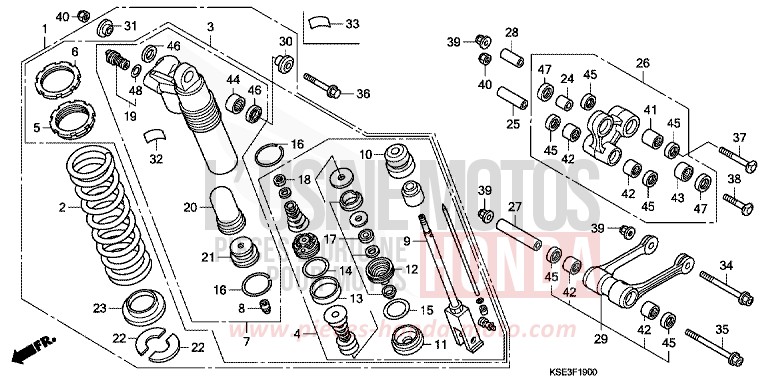

REAR CUSHION for CRF150R "Big wheels" EXTREME RED (R292) from 2007

REAR CUSHION for CRF150R "Big wheels" EXTREME RED (R292) from 2007
Reference
Product name
#2 52401-GBF-831

SPRING, RR CUSHION (51N/MM,52KGF/MM)

Price €146.50
#2 52402-GBF-831

SPRING, RR CUSHION (49N/MM,50KGF/MM)

Price €214.84
#2 52402-GBF-J01

SPRING, RR CUSHION (47N/MM,48KGF/MM)

Price €184.80
Contact us
#2 52403-GBF-831

SPRING, RR CUSHION (53N/MM,54KGF/MM)

Price €180.73
Contact us
#3 52410-KSE-671

DAMPER COMP, RR

Contact us
#4 52421-KSE-671

ROD COMP, PISTON

Contact us
#5 52422-MA0-003

ADJUSTER, SPRING

Price €35.52
#6 52423-GBF-831

NUT, ADJUSTER

Price €19.58
#7 52425-KSE-671

CASE COMP, DAMPER

Contact us
#8 52425-381-771

CAP, AIR VALVE

Price €10.39
#9 52426-KSE-671

ROD COMP

Price €383.08
Contact us
#10 52427-GBF-831

RUBBER, STOPPER

Price €23.46
#11 52428-KA4-741

CAP, CASE

Price €18.48
#12 52429-GBF-831

CASE COMP, ROD GUIDE

Price €34.44
#13 52431-MA0-771

RING, PISTON

Price €27.59
#14 52432-GBF-831

O-RING, 20X335

Price €6.12
#15 52434-KA3-681

O-RING, 35X337

Price €7.75
#16 52435-MA0-771

RING, STOPPER

Price €9.28
#17 52436-KSE-680

OIL SEAL SET

Price €19.33
#18 52438-KA4-741

NUT, HEX, 12MM

Price €4.64
#19 52440-GBF-A01

ADJUSTER, COMPRESSION DAMPING FORCE

Price €101.74
#20 52451-GBF-831

DIAPHRAGM

Price €28.26
#21 52453-KSE-671

CAP COMP, CHAMBER

Price €26.30
#22 52455-GBF-831

STOPPER, SPRING SEAT

Price €17.66
#23 52459-GBF-831

SEAT, SPRING

Price €18.48
#24 52462-KSE-000

COLLAR D, CUSHION ARM

Price €15.34
#25 52463-KSE-000

COLLAR B, CUSHION ARM

Price €20.84
#26 52465-KSE-000

ARM SUB ASSY, CUSHION

Price €218.00
#27 52473-KSE-000

COLLAR A, CONNECTING ROD

Price €19.55
#28 52473-KZ9-710

COLLAR, CUSHION CONNECTING ROD

Price €13.56
#29 52479-KSE-000

ROD SUB ASSY, CUSHION CONNECTING

Price €147.67
#30 52486-GBF-830

COLLAR A, CUSHION UPPER

Price €9.70
#31 52487-GBF-830

COLLAR B, CUSHION UPPER

Price €8.59
#32 87516-KZ1-600

LABEL, RR DAMPER WARNING

Price €14.92
#33 87516-KZ1-881

LABEL, RR DAMPER WARNING (FRENCH)

Price €14.72
#34 90101-KK6-000

BOLT, FLANGE, 10X85

Price €11.28
#35 90101-KSE-000

BOLT, FLANGE, 10X105

Price €12.58
#36 90128-KSE-000

BOLT, FLANGE, 10X67

Price €13.18
#37 90153-KSE-000

BOLT, LINK, 10X73

Price €11.28
#38 90153-KZ4-710

BOLT, CUSHION LOWER, 10X435

Price €8.16
#39 90304-GE8-003

NUT, U, 10MM (FUSE RASHI)

Price €6.53
#40 90306-KZ4-711

NUT, U, 10MM

Price €5.41
#41 91071-KV3-005

BEARING, NEEDLE (KOYO)

Price €27.85
#42 91072-KT7-003

BEARING, NEEDLE, 17X24X20 (NTN)

Price €27.85
#43 91074-KRN-711

BEARING, NEEDLE, 19X26X13

Price €27.17
#44 91077-GS2-702

BEARING, NEEDLE, 16X22X12

Price €39.18
#45 91262-KV3-831

DUST SEAL, 17X24X5 (ARAI)

Price €6.26
#46 91351-GS2-701

DUST SEAL, RR CUSHION UPPER

Price €5.95
#47 91351-KSE-003

DUST SEAL, 19X26X3

Price €6.10
#48 91356-GBF-831

O-RING, 168X19

Price €5.69
#1 52400-KSE-841

CUSHION ASSY, RR

Price €701.29
Contact us
