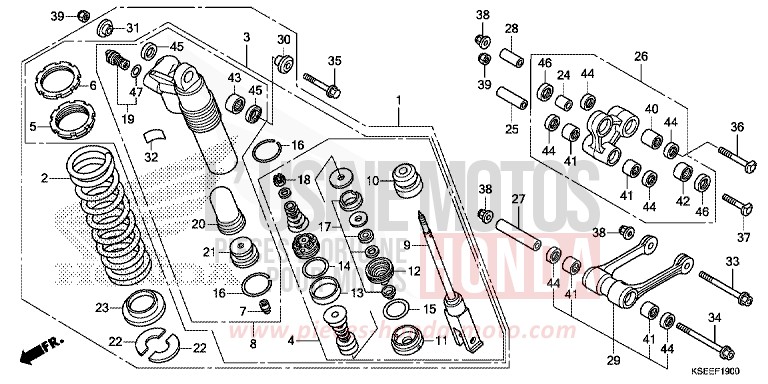

REAR CUSHION for CRF150R EXTREME RED (R292) from 2013

REAR CUSHION for CRF150R EXTREME RED (R292) from 2013
Reference
Product name
#1 52400-KSE-E71

CUSHION ASSY, RR

Price €799.34
Contact us
#2 52401-KSE-A31 i

SPRING, RR CUSHION (SHOWA) (490N/MM,50KGF/MM)

Price €282.55
#2 52401-KSE-A41 i

SPRING, RR CUSHION (SHOWA) (510N/MM,52KGF/MM)

Price €282.55
#2 52402-KSE-A31

SPRING, RR CUSHION (SHOWA) (470N/MM,48KGF/MM)

Price €173.27
Contact us
#3 52410-KSE-E71

DAMPER COMP, RR

Price €1,125.20
#4 52421-KSE-A71

ROD COMP, PISTON

Price €515.28
#5 52422-MA0-003

ADJUSTER, SPRING

Price €41.12
#6 52423-GBF-831

NUT, ADJUSTER

Price €29.22
#7 52425-381-771

CAP, AIR VALVE

Price €12.72
#8 52425-KSE-E31

CASE COMP, DAMPER

Price €402.95
#9 52426-KSE-A71

ROD COMP

Price €431.11
#10 52427-GBF-831

RUBBER, STOPPER

Price €26.70
#11 52428-KA4-741

CAP, CASE

Price €29.90
#12 52429-KSE-A71

CASE COMP, ROD GUIDE

Price €65.52
#13 52431-MA0-771

RING, PISTON

Price €30.25
#14 52432-GBF-831

O-RING, 20X335

Price €7.57
#15 52434-KA3-681 i

O-RING, 35X337

Price €10.98
#16 52435-MA0-771

RING, STOPPER

Price €9.12
#17 52436-KSE-680

OIL SEAL SET

Price €21.31
#18 52438-KA4-741

NUT, HEX, 12MM

Price €6.38
#19 52440-GBF-A01

ADJUSTER, COMPRESSION DAMPING FORCE

Price €100.30
#20 52451-GBF-831

DIAPHRAGM

Price €32.94
#21 52453-KSE-671

CAP COMP, CHAMBER

Price €40.55
#22 52455-GBF-831

STOPPER, SPRING SEAT

Price €12.68
#23 52459-GBF-831

SEAT, SPRING

Price €29.90
#24 52462-KSE-000

COLLAR D, CUSHION ARM

Price €20.08
#25 52463-KSE-000

COLLAR B, CUSHION ARM

Price €26.24
#26 52465-KSE-000

ARM SUB ASSY, CUSHION

Price €320.74
#27 52473-KSE-000

COLLAR A, CONNECTING ROD

Price €31.36
#28 52473-KZ9-710

COLLAR, CUSHION CONNECTING ROD

Price €18.68
#29 52479-KSE-000

ROD SUB ASSY, CUSHION CONNECTING

Price €278.87
#30 52486-GBF-830

COLLAR A, CUSHION UPPER

Price €10.44
#31 52487-GBF-830

COLLAR B, CUSHION UPPER

Price €8.26
#32 87516-MEN-E30

LABEL, RR DAMPER

Price €11.42
#33 90101-KK6-000 i

BOLT, FLANGE, 10X85

Price €15.07
#34 90101-KSE-000

BOLT, FLANGE, 10X105

Price €17.57
#35 90128-KSE-000

BOLT, FLANGE, 10X67

Price €18.86
#36 90153-KSE-000

BOLT, LINK, 10X73

Price €15.07
#37 90153-KZ4-710

BOLT, CUSHION LOWER, 10X435

Price €9.20
#38 90304-GE8-003 i

NUT, U, 10MM (FUSE RASHI)

Price €6.92
#39 90306-KZ4-711

NUT, U, 10MM

Price €7.45
#40 91071-KV3-005 i

BEARING, NEEDLE (KOYO)

Price €26.09
#41 91072-KT7-003 i

BEARING, NEEDLE, 17X24X20 (NTN)

Price €26.09
#42 91074-KRN-711 i

BEARING, NEEDLE, 19X26X13

Price €26.62
#43 91077-GS2-702

BEARING, NEEDLE, 16X22X12

Price €44.39
#44 91262-KV3-831 i

DUST SEAL, 17X24X5 (ARAI)

Price €7.37
#45 91351-GS2-701

DUST SEAL, RR CUSHION UPPER

Price €5.63
#46 91351-KSE-003

DUST SEAL, 19X26X3

Price €5.81
#47 91356-GBF-831

O-RING, 168X19

Price €6.65
