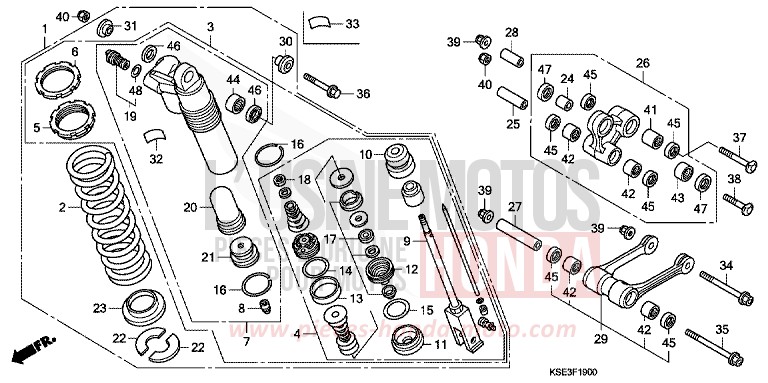

REAR CUSHION for CRF150R EXTREME RED (R292) from 2007

REAR CUSHION for CRF150R EXTREME RED (R292) from 2007
Reference
Product name
#2 52401-GBF-831

SPRING, RR CUSHION (51N/MM,52KGF/MM)

Price €276.41
#2 52402-GBF-831

SPRING, RR CUSHION (49N/MM,50KGF/MM)

Price €214.84
#2 52402-GBF-J01

SPRING, RR CUSHION (47N/MM,48KGF/MM)

Price €184.80
Contact us
#5 52422-MA0-003

ADJUSTER, SPRING

Price €41.12
#6 52423-GBF-831

NUT, ADJUSTER

Price €29.22
#8 52425-381-771

CAP, AIR VALVE

Price €12.72
#10 52427-GBF-831

RUBBER, STOPPER

Price €26.70
#11 52428-KA4-741

CAP, CASE

Price €29.90
#12 52429-GBF-831

CASE COMP, ROD GUIDE

Price €42.94
#13 52431-MA0-771

RING, PISTON

Price €30.25
#14 52432-GBF-831

O-RING, 20X335

Price €7.57
#15 52434-KA3-681 i

O-RING, 35X337

Price €10.98
#16 52435-MA0-771

RING, STOPPER

Price €9.12
#18 52438-KA4-741

NUT, HEX, 12MM

Price €6.38
#19 52440-GBF-A01

ADJUSTER, COMPRESSION DAMPING FORCE

Price €100.30
#20 52451-GBF-831

DIAPHRAGM

Price €32.94
#22 52455-GBF-831

STOPPER, SPRING SEAT

Price €12.68
#23 52459-GBF-831

SEAT, SPRING

Price €29.90
#30 52486-GBF-830

COLLAR A, CUSHION UPPER

Price €10.44
#31 52487-GBF-830

COLLAR B, CUSHION UPPER

Price €8.26
#32 87516-KZ1-600

LABEL, RR DAMPER WARNING

Price €15.01
#33 87516-KZ1-881 i

LABEL, RR DAMPER WARNING (FRENCH)

Price €15.01
#38 90153-KZ4-710

BOLT, CUSHION LOWER, 10X435

Price €9.20
#39 90304-GE8-003 i

NUT, U, 10MM (FUSE RASHI)

Price €6.92
#40 90306-KZ4-711

NUT, U, 10MM

Price €7.45
#41 91071-KV3-005 i

BEARING, NEEDLE (KOYO)

Price €26.09
#42 91072-KT7-003 i

BEARING, NEEDLE, 17X24X20 (NTN)

Price €26.09
#43 91074-KRN-711 i

BEARING, NEEDLE, 19X26X13

Price €26.62
#44 91077-GS2-702

BEARING, NEEDLE, 16X22X12

Price €44.39
#45 91262-KV3-831 i

DUST SEAL, 17X24X5 (ARAI)

Price €7.37
#46 91351-GS2-701

DUST SEAL, RR CUSHION UPPER

Price €5.63
#48 91356-GBF-831

O-RING, 168X19

Price €6.65
#1 52400-KSE-671

CUSHION ASSY, RR

Contact us
#3 52410-KSE-671

DAMPER COMP, RR

Contact us
#4 52421-KSE-671

ROD COMP, PISTON

Contact us
#7 52425-KSE-671

CASE COMP, DAMPER

Contact us
#9 52426-KSE-671

ROD COMP

Price €383.08
Contact us
#17 52436-KSE-680

OIL SEAL SET

Price €21.31
#21 52453-KSE-671

CAP COMP, CHAMBER

Price €40.55
#24 52462-KSE-000

COLLAR D, CUSHION ARM

Price €20.08
#25 52463-KSE-000

COLLAR B, CUSHION ARM

Price €26.24
#26 52465-KSE-000

ARM SUB ASSY, CUSHION

Price €320.74
#27 52473-KSE-000

COLLAR A, CONNECTING ROD

Price €31.36
#28 52473-KZ9-710

COLLAR, CUSHION CONNECTING ROD

Price €18.68
#29 52479-KSE-000

ROD SUB ASSY, CUSHION CONNECTING

Price €278.87
#34 90101-KK6-000 i

BOLT, FLANGE, 10X85

Price €15.07
#35 90101-KSE-000

BOLT, FLANGE, 10X105

Price €17.57
#36 90128-KSE-000

BOLT, FLANGE, 10X67

Price €18.86
#37 90153-KSE-000

BOLT, LINK, 10X73

Price €15.07
#47 91351-KSE-003

DUST SEAL, 19X26X3

Price €5.81
# 40530-KSE-671

CHAIN, DRIVE (DAIDO) (DID420DS3-120RB)

Price €169.33
# 40540-KSE-003

CHAIN, DRIVE (DAIDO) (DID420DS3-130RB)...

Price €176.74
# 40531-KSE-671

JOINT, DRIVE CHAIN (DAIDO)

Price €18.65
# 43435-392-000

COLLAR, LINK

Price €12.07
# 43468-MEB-000

GUIDE, RR BRAKE HOSE

Price €9.56
# 52101-KSE-000

SHAFT, SWINGARM PIVOT

Price €40.76
# 52141-GBF-J00

COLLAR, R SWINGARM

Price €30.72
# 52142-GBF-J00

COLLAR, L SWINGARM

Price €27.53
# 52143-GBF-J00

COLLAR, THRUST PIVOT

Price €13.43
# 52146-KSE-000

GUIDE, CHAIN

Price €51.76
# 52147-GM7-701

SLIDER, CHAIN GUIDE

Price €24.04
# 52147-KSE-000

PLATE, CHAIN GUIDE

Price €41.14
# 52158-GBF-830

ROLLER, CHAIN TENSIONER

Price €27.88
# 52170-KSE-000

SLIDER, CHAIN

Price €74.58
# 52171-KR6-000 i

WASHER, CHAIN SLIDER

Price €6.13
# 52200-KSE-000

SWINGARM SUB ASSY, RR

Price €600.11
Contact us
# 90105-MEN-000

BOLT, HEX, 8X475

Price €8.50
# 90115-KV3-700

SCREW, PAN, 5X8

Price €6.08
# 90301-473-003 i

NUT, U, 6MM (FUSE RASHI)

Price €11.29
# 90306-KF0-003 i

NUT, FLANGE, 12MM (FUSE RASHI)

Price €8.11
# 90309-357-000 i

NUT, HEX, 8MM

Price €11.54
# 90485-KSE-000

WASHER, 8MM

Price €6.54
# 90520-134-000

WASHER, HEADLIGHT CASE SETTING

Price €7.61
# 91070-GC4-601 i

BEARING, NEEDLE, 20X26X20 (NTN)

Price €26.09
# 91254-KS6-003 i

DUST SEAL, 20X26X45 (ARAI)

Price €10.64
# 93500-050080A i

SCREW, PAN, 5X8

Price €0.95
# 93500-050100G i

SCREW, PAN, 5X10

Price €0.72
# 93600-060400A i

SCREW, FLAT, 6X40

Price €1.00
# 95701-0803500 i

BOLT, FLANGE, 8X35

Price €1.50
# 96001-0603500 i

BOLT, FLANGE, 6X35

Price €1.50
