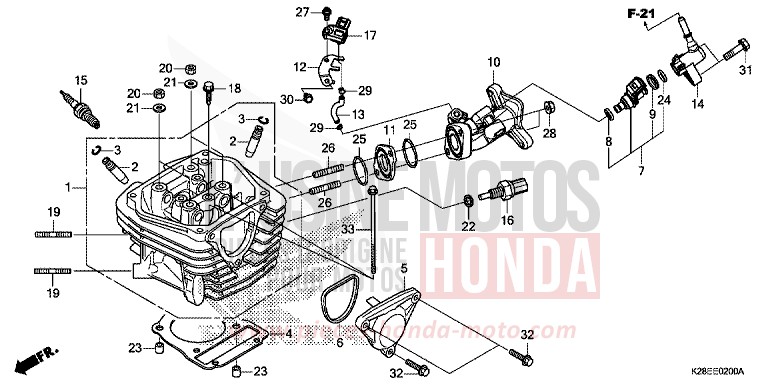

CYLINDER HEAD for CRF125FB EXTREME RED (R292) from 2023

CYLINDER HEAD for CRF125FB EXTREME RED (R292) from 2023
Reference
Product name
#1 12200-K28-A60

HEAD COMP, CYLINDER

Price €591.78
#2 12204-KVY-305

GUIDE, VALVE (OS)

Price €22.09
#3 12206-KPL-900

CLIP, VALVE GUIDE

Price €1.25
#4 12251-KYY-901

GASKET, CYLINDER HEAD

Price €18.84
#5 12341-KYY-900

COVER, CYLINDER HEAD L SIDE

Price €15.89
#6 12395-KYY-900

GASKET, CYLINDER HEAD L SIDE COVER

Price €6.42
#7 16450-K28-A61

INJECTOR ASSY, FUEL

Price €265.51
#8 16472-KPC-D50

RING, SEAL

Price €5.21
#9 16473-HR3-A42

SEAL RING, DUST

Price €7.79
#10 17111-K28-A60

PIPE COMP, IN

Price €103.73
#11 17113-KYY-901

INSULATOR, INLET PIPE A

Price €12.80
#12 17535-K28-A60

STAY, PB

Price €28.76
#13 17537-K28-A60

TUBE, PB

Price €2.72
#14 17565-K28-A60

JOINT COMP, INJECTOR

Price €43.91
#15 31916-KPH-901

PLUG, SPARK (CPR6EA-9) (NGK)

Price €10.90
#16 37750-KPH-701

SENSOR ASSY, THERMOSTAT OIL (PANASONIC)

Price €156.02
#17 46401-TM8-A01

SENSOR A, MASTER POWER PRESSURE

Price €331.27
#18 90014-KYY-900

BOLT, SPECIAL, 6X21

Price €1.78
#19 90035-KRM-840

BOLT, STUD, 8X22

Price €16.64
#20 90201-GCC-000

NUT, HEX, 7MM

Price €3.96
#21 90401-GFM-900

WASHER, 72X16X25

Price €1.36
#22 90443-MB0-000

WASHER, SEALING, 102MM

Price €5.98
#23 90701-KVR-C00

DOWEL PIN, SPECIAL, 8X14

Price €1.93
#24 91301-GGL-J01

O-RING, 63X22

Price €13.78
#25 91313-KVR-C00

O-RING, 27X20

Price €4.21
#26 92900-060250B

BOLT, STUD, 6X25

Price €1.74
#27 93893-0602018

SCREW-WASHER, 6X20

Price €1.49
#28 94050-06000

NUT, FLANGE, 6MM

Price €0.78
#29 95002-02070

CLIP, TUBE (B7)

Price €0.86
#30 95701-0601000

BOLT, FLANGE, 6X10

Price €1.13
#31 95701-0602200

BOLT, FLANGE, 6X22

Price €1.39
#32 96001-0602500

BOLT, FLANGE, 6X25

Price €1.48
#33 96001-0611000

BOLT, FLANGE, 6X110

Price €3.35
