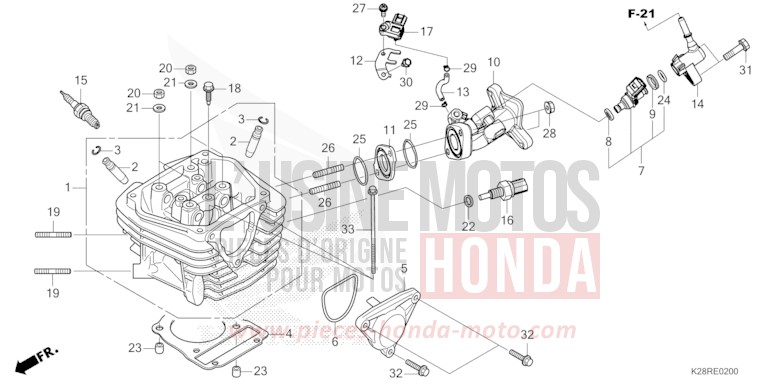

CYLINDER HEAD for CRF125F EXTREME RED (R292) from 2025

CYLINDER HEAD for CRF125F EXTREME RED (R292) from 2025
Reference
Product name
#1 12200-K28-A60

HEAD COMP, CYLINDER

Price €315.91
#2 12204-KVY-305 i

GUIDE, VALVE (OS)

Price €24.78
#3 12206-KPL-900

CLIP, VALVE GUIDE

Price €3.74
#4 12251-KYY-901

GASKET, CYLINDER HEAD

Price €12.84
#5 12341-KYY-900

COVER, CYLINDER HEAD L SIDE

Price €9.40
#6 12395-KYY-900

GASKET, CYLINDER HEAD L SIDE COVER

Price €3.26
#7 16450-K28-A61

INJECTOR ASSY, FUEL

Price €221.99
#8 16472-KPC-D50

RING, SEAL

Price €6.80
#9 16473-HR3-A42 i

SEAL RING, DUST

Price €16.39
#10 17111-K28-A60

PIPE COMP, IN

Price €151.90
#11 17113-KYY-901

INSULATOR, INLET PIPE A

Price €7.54
#12 17535-K28-A60

STAY, PB

Price €25.75
#13 17537-K28-A60

TUBE, PB

Price €2.69
#14 17565-K28-A60

JOINT COMP, INJECTOR

Price €70.43
#15 31916-KPH-901 i

PLUG, SPARK (CPR6EA-9) (NGK)

Price €11.29
#16 37750-KPH-701

SENSOR ASSY, THERMOSTAT OIL (PANASONIC)

Price €114.04
#17 46401-TM8-A01

SENSOR A, MASTER POWER PRESSURE

Price €247.42
#18 90014-KYY-900

BOLT, SPECIAL, 6X21

Price €1.68
#19 90035-KRM-840 i

BOLT, STUD, 8X22

Price €23.70
#20 90201-GCC-000

NUT, HEX, 7MM

Price €1.27
#21 90401-GFM-900

WASHER, 72X16X25

Price €1.69
#22 90443-MB0-000

WASHER, SEALING, 102MM

Price €6.13
#23 90701-KVR-C00

DOWEL PIN, SPECIAL, 8X14

Price €1.91
#24 91301-GGL-J01

O-RING, 63X22

Price €21.91
#25 91313-KVR-C00

O-RING, 27X20

Price €3.84
#26 92900-060250B i

BOLT, STUD, 6X25

Price €1.78
#27 93893-0602018

SCREW-WASHER, 6X20

Price €1.51
#28 94050-06000 i

NUT, FLANGE, 6MM

Price €0.79
#29 95002-02070 i

CLIP, TUBE (B7)

Price €0.88
#30 95701-0601000 i

BOLT, FLANGE, 6X10

Price €1.15
#31 95701-0602200 i

BOLT, FLANGE, 6X22

Price €1.42
#32 96001-0602500 i

BOLT, FLANGE, 6X25

Price €1.50
#33 96001-0611000 i

BOLT, FLANGE, 6X110

Price €3.42
