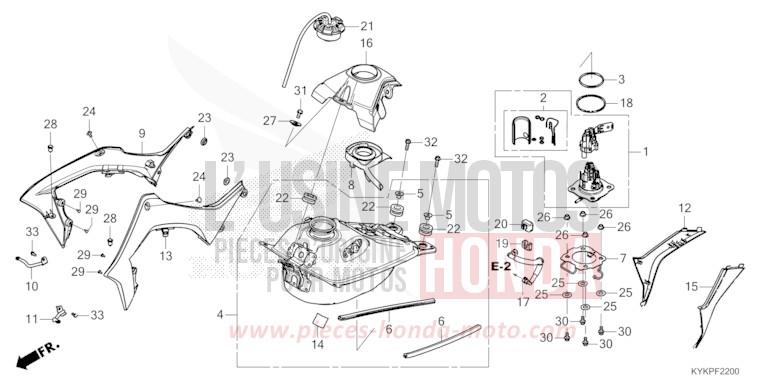

FUEL TANK for CRF110F EXTREME RED (R292) from 2023

FUEL TANK for CRF110F EXTREME RED (R292) from 2023
Reference
Product name
#1 16700-K28-A61

FUEL PUMP UNIT ASSY.

Price €502.38
#2 16707-K45-N01

ENSEMBLE FILTRE

Price €74.03
#3 16711-K99-A01

GASKET TORIQUE, 3.7X62.9

Price €41.22
#4 17500-K28-A60

FUEL TANK ASSY.

Price €379.79
#5 17509-KYK-910

FUEL TANK MOUNTING BAND

Price €2.03
#6 17515-MJE-D00

REVETEMENT DE TANK FUEL

Price €30.59
#7 17527-KYK-D10

PLATE COMP, SETTING

Price €28.70
#8 17530-K28-A60

PLATEAU FUEL

Price €18.60
#10 17541-KYK-D10

STAY, R SHROUD

Price €19.28
#11 17542-KYK-D10

STAY, L SHROUD

Price €19.28
#12 17546-K28-A60

COLLECTEUR AIR B, D.

Price €30.16
#14 17556-K28-910

FILM, PROTECTEUR

Price €8.60
#15 17556-K28-A60

COLLECTEUR AIR B, G.

Price €30.16
#16 17560-K28-A60

COVER, TANK CENTRE

Price €33.35
#17 17571-KYK-D11

HOSE COMP, FUEL FEED

Price €126.08
#18 17574-K99-A01

CACHE, POUSSIERE

Price €14.47
#19 17575-K99-A00

COVER, RACCORD DE FUEL

Price €15.00
#20 17576-KRN-A90

RUBBER, CONNECTEUR FUEL

Price €18.07
#21 17620-K28-M21 i

BOUCHON COMP. REMPLISSAGE FUEL

Price €276.32
#22 50329-KYA-B00

RUBBER, SUPPORT PORTE-BAGAGES AR.

Price €3.01
#23 83551-376-000

RING OF COVER SIDE

Price €5.71
#24 90126-K99-A00

BOLT SPECIAL, 6MM

Price €1.21
#25 90502-MEN-A30

WASHER, PUMP A FUEL RESSORT CONIQUE

Price €8.76
#26 90503-K99-A00

BAND, PUMP DE FUEL

Price €4.60
#27 90504-K28-A60

BAND, FRONT. TANK

Price €3.73
#28 90653-HC4-900

CLIP OF BAVETTE

Price €1.32
#29 93913-24120

SELF-TAPPING SCREW, 4X10

Price €0.78
#30 95701-0601600 i

FLANGE BOLT, 6X16

Price €1.18
#31 95701-0801600 i

FLANGE BOLT, 8X16

Price €1.33
#32 95701-0802500 i

FLANGE BOLT, 8X25

Price €1.61
#33 96001-0601207 i

FLANGE BOLT, 6X12

Price €1.25
#9 17540-KYK-H10ZA

SHROUD SET A, R TANK (WL) R292R (R292R EXTREME...

Price €376.73
#13 17550-KYK-H10ZA

SHROUD SET A, L TANK (WL) R292R (R292R EXTREME...

Price €376.73
