RIGHT CRANKCASE COVER 🏍️ CRF110F
CLUTCH 🏍️ CRF110F

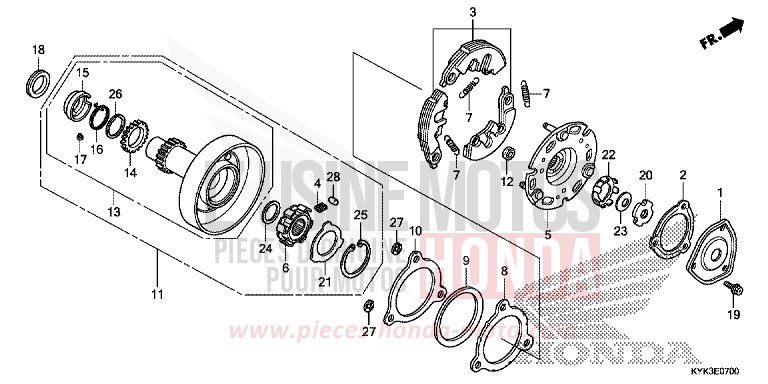

ONE WAY CLUTCH for CRF110F EXTREME RED (R292) from 2022

ONE WAY CLUTCH for CRF110F EXTREME RED (R292) from 2022
Reference
Product name
#1 15431-KVR-C00

COVER, OIL FILTER

Price €7.60
#3 22535-KWW-P00

WEIGHT SET, PRIMARY CLUTCH (FCC)

Price €108.01
#4 22606-KVR-C00

SPRING, ONE WAY RETAINER

Price €2.08
#5 22610-KWW-741

PLATE COMP, PRIMARY DRIVE (FCC)

Price €56.26
#6 22630-KWW-C00

INNER COMP, ONE-WAY CLUTCH

Price €21.05
#7 22641-KPH-900

SPRING, PRIMARY CLUTCH

Price €4.19
#8 22642-KWW-741

WASHER, CLUTCH SIDE (FCC)

Price €9.31
#9 22643-KWW-741

SPRING, SIDE FRICTION (FCC)

Price €13.36
#10 22644-KWW-741

PLATE, CLUTCH SIDE (FCC)

Price €9.11
#11 22660-KWW-C00

OUTER ASSY, PRIMARY CLUTCH

Price €105.86
#12 22804-GB2-000

RUBBER, CLUTCH DAMPER

Price €5.36
#13 23120-KWW-C00

GEAR COMP, PRIMARY CLUTCH

Price €85.74
#14 23122-KWW-C00

SUB GEAR (17T)

Price €18.56
#15 23123-KWW-C00

RETAINER, SPRING

Price €14.68
#16 23124-KWW-C00

SPRING, SUB GEAR

Price €2.08
#17 23125-KVR-C00

PIN, STOPPER

Price €0.59
#18 23126-KWW-740

COLLAR, 191X30X4

Price €4.46
#19 90083-KFL-850

BOLT, SPECIAL FLANGE, 5X8

Price €3.74
#20 90231-KVR-C00

NUT, LOCK, 14MM

Price €5.62
#21 90401-KVR-C00

WASHER, 30X45X08

Price €2.52
#22 90431-KVR-C00

WASHER, LOCK

Price €4.00
#23 90432-KVR-C00

WASHER B, LOCK

Price €7.66
#24 90433-KWW-C00

WASHER, 17X23X15

Price €5.05
#25 90455-KVR-C00

CIRCLIP, INTERNAL, 45MM

Price €1.66
#26 90603-KWW-C00

SET RING, 23MM

Price €1.46
#27 90605-166-720

CIRCLIP, 7MM

Price €4.19
#28 91106-KVR-C00

ROLLER, 5X8

Price €30.79
#2 15439-KYK-D10

GASKET, OIL FILTER

Price €4.42
#12 22804-K69-601

RUBBER, CLUTCH DAMPER (FCC)
