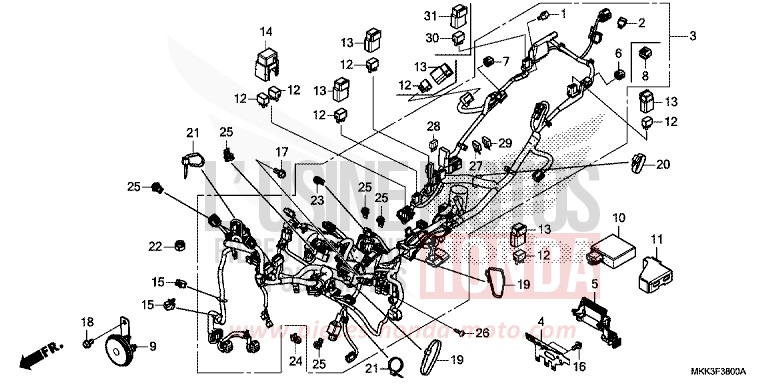

WIRE HARNESS for CRF1000 VICTORY RED (R334B) from 2018

WIRE HARNESS for CRF1000 VICTORY RED (R334B) from 2018
Reference
Product name
#1 31700-GFZ-J01

RESISTOR COMP

Price €21.43
#2 31700-MM8-610

RECTIFICATEUR COMP. SILICIUM

Price €42.31
#3 32100-MKK-D00

HARNESS, WIRE

Price €1,127.11
#4 32155-MKK-D00

STAY, HARNESS CLIP

Price €39.72
#5 32159-MJP-G50

COVER D'COUPLING

Price €23.12
#7 32606-GEV-761

CAP, FAUX (4P) (ROUGE)

Price €10.52
#8 32606-MEL-D01

CAP, FAUX (6P) (NATUREL)

Price €14.86
#9 38110-KCR-J01

AVERTISSEUR SONORE COMP. (TOP)

Price €69.96
#10 38301-MKK-D01

RELAY COMP, WINKER (LED)

Price €306.34
#11 38306-MGH-640

DAMPER, TURN SIGNAL RELAY

Price €23.87
#12 38501-KWN-901

RELAIS COMP. ENERGIE (MICRO ISO 4P) (OMRON)

Price €8.48
#13 38506-KVS-600

SUSPENSION, RELAIS PUISSANCE

Price €18.46
#14 38506-KZZ-900

COVER, RELAY (2P)

Price €6.76
#16 90025-GHB-620

FLANGE BOLT, 6X12

Price €5.46
#17 90030-GHB-630

FLANGE BOLT, 6X14

Price €5.46
#18 90036-GHB-630

FLANGE BOLT, 8X14

Price €5.46
#19 90620-SB2-003 i

STRIPE OF ELECTRIC HARNESS

Price €14.64
#20 90650-KV6-003 i

STRIPE, CABLE 95MM

Price €9.46
#21 90652-KT1-771 i

WIRE BAND (BLACK)

Price €9.29
#23 91535-TA0-003

CLIP D'COUPLING (BROWN FONCE)

Price €11.84
#24 91541-S0A-003

CLIP OF STRIPE OF HARNESS (BLACK) (145MM)

Price €6.83
#25 91565-SEL-003

CLIP D'COUPLING (BLACK)

Price €6.83
#26 93913-25280

SCREW, TAPPING, 5X12 (PO)

Price €0.64
#27 98200-41000

MINI-FUSE (10A)

Price €1.25
#28 98200-41500

FUSIBLE, MINI (15A)

Price €1.25
#29 98200-42000

MINI-FUSE (20A)

Price €1.25
