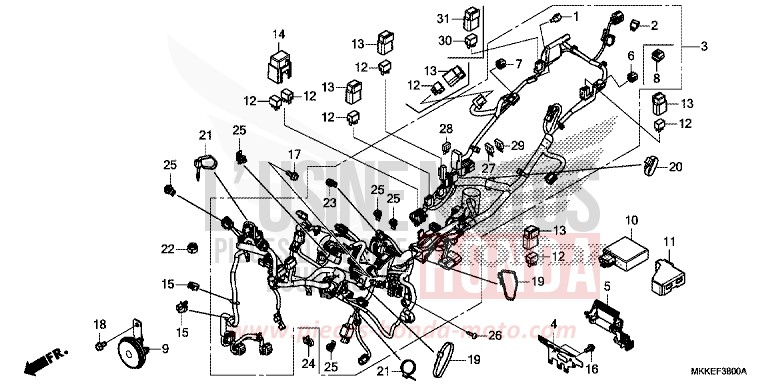

WIRE HARNESS for CRF1000 GRAND PRIX RED (R380B) from 2019

WIRE HARNESS for CRF1000 GRAND PRIX RED (R380B) from 2019
Reference
Product name
#1 31700-GFZ-J01

RESISTOR COMP

Price €21.43
#2 31700-MM8-610

RECTIFIER COMP, SILICON

Price €42.31
#3 32100-MKK-D00

HARNESS, WIRE

Price €1,127.11
#4 32155-MKK-D00

STAY, HARNESS CLIP

Price €39.72
#5 32159-MJP-G50

COVER, COUPLER

Price €23.12
#7 32606-GEV-761

CAP, DUMMY (4P) (RED)

Price €10.52
#8 32606-MEL-D01

CAP, DUMMY (6P) (NATURAL)

Price €14.86
#9 38110-KCR-J01

HORN COMP (HIGH)

Price €69.96
#10 38301-MKK-D01

RELAY COMP, WINKER (LED)

Price €306.34
#11 38306-MGH-640

CUSHION, WINKER RELAY

Price €23.87
#12 38501-KWN-901

RELAY COMP, POWER (MICRO ISO 4P) (OMRON)

Price €8.48
#13 38506-KVS-600

SUSPENSION, POWER RELAY

Price €18.46
#14 38506-KZZ-900

COVER, RELAY (2P)

Price €6.76
#16 90025-GHB-620

BOLT, FLANGE, 6X12

Price €5.46
#17 90030-GHB-630

BOLT, FLANGE, 6X14

Price €5.46
#18 90036-GHB-630

BOLT, FLANGE, 8X14

Price €5.46
#19 90620-SB2-003 i

BAND, WIRE HARNESS

Price €14.64
#20 90650-KV6-003 i

BAND, WIRE, 95MM

Price €9.46
#21 90652-KT1-771 i

BAND, WIRE (BLACK)

Price €9.29
#23 91535-TA0-003

CLIP, COUPLER (DARK BROWN)

Price €11.84
#24 91541-S0A-003

CLIP, HARNESS BAND (BLACK) (145MM)

Price €6.83
#25 91565-SEL-003

CLIP, COUPLER (BLACK)

Price €6.83
#26 93913-25280

SCREW, TAPPING, 5X12 (PO)

Price €0.64
#27 98200-41000

FUSE, MINI (10A)

Price €1.25
#28 98200-41500

FUSE, MINI (15A)

Price €1.25
#29 98200-42000

FUSE, MINI (20A)

Price €1.25
