SWINGARM 🏍️ CR85R

REAR FENDER 🏍️ CR85R

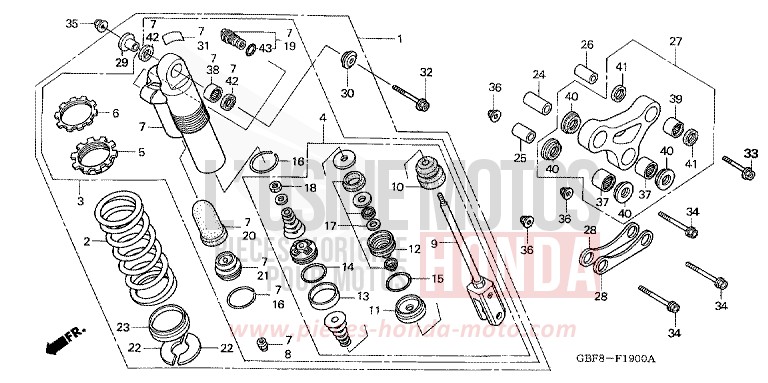

REAR CUSHION for CR85R EXTREME RED (R292) from 2006

Reference

Product name

Unit price

#5 52422-MA0-003

ADJUSTER, SPRING

€35.52

#8 52425-169-003

CAP, AIR VALVE

€8.45

#11 52428-KA4-741

CAP, CASE

€18.48

#13 52431-MA0-771

RING, PISTON

€27.59

#16 52435-MA0-771

RING, STOPPER

€9.28

#17 52436-MN1-680

OIL SEAL SET

€33.30

#18 52438-KA4-741

NUT, HEX, 12MM

€4.64

#24 52463-GBF-830

COLLAR, CUSHION ARM

€15.91

#26 52464-KW3-000

COLLAR, DAMPER LOWER

€14.75

#31 87516-KZ1-600

LABEL, RR DAMPER WARNING

€14.92

#31 87516-KZ1-881

LABEL, RR DAMPER WARNING (FRENCH)

€14.72

#35 90304-GA6-003

NUT, AXLE, 10MM

€6.53

#36 90306-KF0-003

NUT, FLANGE, 12MM (FUSE RASHI)

€7.40

#37 91075-GBF-831

BEARING, NEEDLE, 20X26X20

€27.85

#39 91079-KN5-003

BEARING, CONNECTING ROD

€35.46

#40 91262-GBF-831

DUST SEAL, 20X26X4

€5.09

#42 91351-GS2-701

DUST SEAL, RR CUSHION UPPER

€5.95

#1 52400-GBF-B41

CUSHION ASSY, RR (SHOWA)

#2 52402-GBF-J01

SPRING, RR CUSHION (47N/MM,48KGF/MM)

€184.80

#2 52401-GBF-831

SPRING, RR CUSHION (51N/MM,52KGF/MM)

€146.50

#2 52402-GBF-831

SPRING, RR CUSHION (49N/MM,50KGF/MM)

€214.84

#2 52403-GBF-J01

SPRING, RR CUSHION (45N/MM,46KGF/MM)

#2 52403-GBF-831

SPRING, RR CUSHION (53N/MM,54KGF/MM)

€180.73

#3 52410-GBF-B41

DAMPER COMP, RR

#4 52421-GBF-B41

ROD COMP, PISTON

#6 52423-GBF-831

NUT, ADJUSTER

€19.58

#7 52425-GBF-A01

CASE COMP, DAMPER

#9 52426-GBF-B01

ROD COMP

#10 52427-GBF-831

RUBBER, STOPPER

€23.46

#12 52429-GBF-831

CASE COMP, ROD GUIDE

€34.44

#14 52432-GBF-831

O-RING, 20X335

€6.12

#15 52434-KA3-681

O-RING, 35X337

€7.75

#19 52440-GBF-A01

ADJUSTER, COMPRESSION DAMPING FORCE

€101.74

#20 52451-GBF-831

DIAPHRAGM

€28.26

#21 52453-GBF-831

CAP COMP, CHAMBER

€34.38

#22 52455-GBF-831

STOPPER, SPRING SEAT

€17.66

#23 52459-GBF-831

SEAT, SPRING

€18.48

#25 52464-GBF-830

COLLAR, CUSHION ARM PIVOT

€15.85

#27 52465-GBF-K00

ARM SUB ASSY, CUSHION

€181.49

#28 52471-GBF-J20

PLATE, CUSHION CONNECTING

€40.63

#29 52486-GBF-830

COLLAR A, CUSHION UPPER

€9.70

#30 52487-GBF-830

COLLAR B, CUSHION UPPER

€8.59

#32 90128-GC5-000

BOLT, FLANGE, 10X70

€15.42

#33 90153-KW3-003

BOLT, FLANGE, 10X45

€9.04

#34 90155-GBF-830

BOLT, FLANGE, 12X65

€9.60

#38 91077-GS2-702

BEARING, NEEDLE, 16X22X12

€39.18

#41 91263-GBF-831

DUST SEAL, 15X22X5

€4.90

#43 91356-GBF-831

O-RING, 168X19

€5.69

# 40530-GBF-B01

CHAIN, DRIVE (RK) (RK420 MSZ1-130RJ)

€64.18

# 40530-GBF-K01

CHAIN, DRIVE (RK) (RK420 MSZ1-116RJ) (STANDARD...

€62.35

# 40531-GM7-641

JOINT, DRIVE CHAIN (RK EXCEL)

€7.08

# 43435-392-000

COLLAR, LINK

€10.96

# 43468-KAE-000

GUIDE, RR BRAKE HOSE

€8.83

# 52141-GBF-J00

COLLAR, R SWINGARM

€27.77

# 52142-GBF-J00

COLLAR, L SWINGARM

€25.75

# 52143-GBF-J00

COLLAR, THRUST PIVOT

€11.40

# 52147-GM7-701

SLIDER, CHAIN GUIDE

€22.91

# 52156-GM7-700

GUIDE, CHAIN

€42.19

# 52157-GS2-770

PLATE, CHAIN GUIDE

€31.80

# 52158-GBF-830

ROLLER, CHAIN TENSIONER

€33.52

# 52170-GBF-831

SLIDER, CHAIN

€53.48

# 52200-GBF-J00

SWINGARM SUB ASSY, RR

€380.68

# 80103-192-600

PLUG, RR FENDER

€5.41

# 90104-ML7-920

SCREW, PAN, 5X10

€6.24

# 90121-GBF-830

BOLT, SWINGARM PIVOT

€43.27

# 90201-GC4-000

NUT, FLANGE, 14MM

€8.00

# 90301-473-003

NUT, U, 6MM (FUSE RASHI)

€7.24

# 90309-KF0-003

NUT, FLANGE, 8MM

€6.34

# 90485-040-000

WASHER, 8MM

€5.70

# 90520-134-000

WASHER, HEADLIGHT CASE SETTING

€5.29

# 91070-GC4-601

BEARING, NEEDLE, 20X26X20 (NTN)

€27.85

# 91254-KS6-003

DUST SEAL, 20X26X45 (ARAI)

€6.50

# 90115-GBF-K40

SCREW, PAN, 5X10

€7.34

# 93600-060350A

SCREW, FLAT, 6X35

€0.97

# 96001-0602200

BOLT, FLANGE, 6X22

€1.48

REAR CUSHION for CR85R EXTREME RED (R292) from 2006
