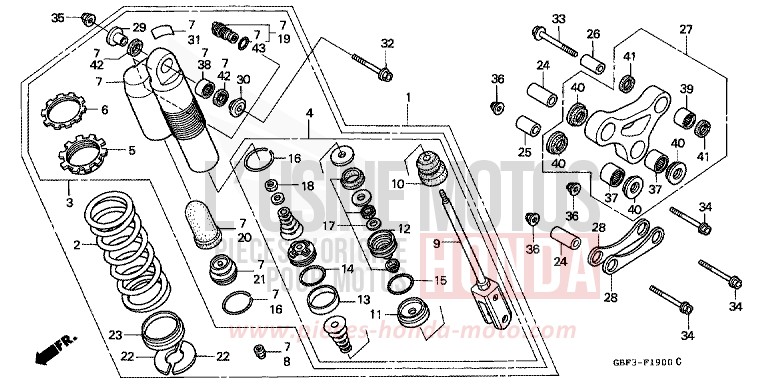

REAR CUSHION for CR80RB NEUCLEAR RED (R177) from 1997

REAR CUSHION for CR80RB NEUCLEAR RED (R177) from 1997
Reference
Product name
#1 52400-GBF-841

CUSHION ASSY, RR (SHOWA)

Contact us
#2 52402-GBF-831

SPRING, RR CUSHION (49N/MM,50KGF/MM)

Price €214.84
#2 52401-GBF-831

SPRING, RR CUSHION (51N/MM,52KGF/MM)

Price €146.50
#2 52403-GBF-831

SPRING, RR CUSHION (53N/MM,54KGF/MM)

Price €180.73
Contact us
#2 52403-GBF-861

SPRING, RR CUSHION (55N/MM,56KGF/MM)

Contact us
#3 52410-GBF-841

DAMPER COMP, RR

Contact us
#4 52421-GBF-831

ROD COMP, PISTON

Contact us
#5 52422-MA0-003

ADJUSTER, SPRING

Price €35.52
#6 52423-GBF-831

NUT, ADJUSTER

Price €19.58
#7 52425-GBF-831

CASE COMP, DAMPER

Contact us
#8 52425-169-003

CAP, AIR VALVE

Price €8.45
#9 52426-GBF-831

ROD COMP

Contact us
#10 52427-GBF-831

RUBBER, STOPPER

Price €23.46
#11 52428-KA4-741

CAP, CASE

Price €18.48
#12 52429-GBF-831

CASE COMP, ROD GUIDE

Price €34.44
#13 52431-MA0-771

RING, PISTON

Price €27.59
#14 52432-GBF-831

O-RING, 20X335

Price €6.12
#15 52434-KA3-681

O-RING, 35X337

Price €7.75
#16 52435-MA0-771

RING, STOPPER

Price €9.28
#17 52436-MN1-680

OIL SEAL SET

Price €33.30
#18 52438-KA4-741

NUT, HEX, 12MM

Price €4.64
#19 52440-GBF-831

ADJUSTER, COMPRESSION DAMPING FORCE

Contact us
#20 52451-GBF-831

DIAPHRAGM

Price €28.26
#21 52453-GBF-831

CAP COMP, CHAMBER

Price €34.38
#22 52455-GBF-831

STOPPER, SPRING SEAT

Price €17.66
#23 52459-GBF-831

SEAT, SPRING

Price €18.48
#24 52463-GBF-830

COLLAR, CUSHION ARM

Price €15.91
#25 52464-GBF-830

COLLAR, CUSHION ARM PIVOT

Price €15.85
#26 52464-KW3-000

COLLAR, DAMPER LOWER

Price €14.75
#27 52465-GBF-830

ARM SET, CUSHION

Contact us
#28 52471-GBF-830

PLATE, CUSHION CONNECTING

Contact us
#29 52486-GBF-830

COLLAR A, CUSHION UPPER

Price €9.70
#30 52487-GBF-830

COLLAR B, CUSHION UPPER

Price €8.59
#31 87516-KZ1-600

LABEL, RR DAMPER WARNING

Price €14.92
#32 90128-GE2-000

BOLT, FLANGE, 10X61

Price €12.58
Contact us
#33 90153-KW3-003

BOLT, FLANGE, 10X45

Price €9.04
#34 90155-GBF-830

BOLT, FLANGE, 12X65

Price €9.60
#35 90304-GA6-003

NUT, AXLE, 10MM

Price €6.53
#36 90306-KF0-003

NUT, FLANGE, 12MM (FUSE RASHI)

Price €7.40
#37 91075-GBF-831

BEARING, NEEDLE, 20X26X20

Price €27.85
#38 91077-GS2-702

BEARING, NEEDLE, 16X22X12

Price €39.18
#39 91079-KN5-003

BEARING, CONNECTING ROD

Price €35.46
#40 91262-GBF-831

DUST SEAL, 20X26X4

Price €5.09
#41 91263-GBF-831

DUST SEAL, 15X22X5

Price €4.90
#42 91351-GS2-701

DUST SEAL, RR CUSHION UPPER

Price €5.95
#43 91356-GBF-831

O-RING, 168X19

Price €5.69
