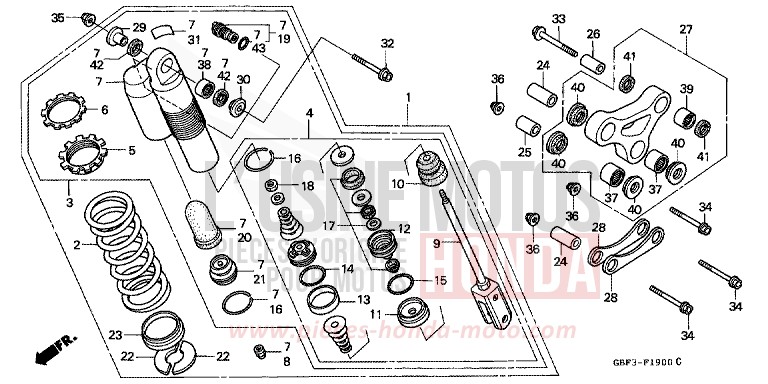

REAR CUSHION for CR80RB NEUCLEAR RED (R177) from 1996

REAR CUSHION for CR80RB NEUCLEAR RED (R177) from 1996
Reference
Product name
#2 52402-GBF-831

SPRING, RR CUSHION (49N/MM,50KGF/MM)

Price €214.84
#2 52401-GBF-831

SPRING, RR CUSHION (51N/MM,52KGF/MM)

Price €276.41
#2 52403-GBF-831

SPRING, RR CUSHION (53N/MM,54KGF/MM)

Price €180.73
Contact us
#2 52403-GBF-861

SPRING, RR CUSHION (55N/MM,56KGF/MM)

Contact us
#5 52422-MA0-003

ADJUSTMENT OF SPRING

Price €41.12
#6 52423-GBF-831

NUT, ADJUSTER

Price €29.22
#8 52425-169-003

CAP, AIR VALVE

Price €8.32
#10 52427-GBF-831

RUBBER, STOPPER

Price €26.70
#11 52428-KA4-741

CAP, CASE

Price €29.90
#12 52429-GBF-831

CASE COMP, ROD GUIDE

Price €42.94
#13 52431-MA0-771

RING, PISTON

Price €30.25
#14 52432-GBF-831

O-RING, 20X335

Price €7.57
#15 52434-KA3-681 i

O-RING, 35X337

Price €10.98
#16 52435-MA0-771

RING, STOPPER

Price €9.12
#17 52436-MN1-680

OIL SEAL SET

Price €41.28
#18 52438-KA4-741

NUT, HEX, 12MM

Price €6.38
#20 52451-GBF-831

DIAPHRAGM

Price €32.94
#21 52453-GBF-831

CAP COMP, CHAMBER

Price €64.60
#22 52455-GBF-831

STOPPER, SPRING SEAT

Price €12.68
#23 52459-GBF-831

SEAT, SPRING

Price €29.90
#24 52463-GBF-830

COLLAR, CUSHION ARM

Price €23.64
#25 52464-GBF-830

COLLAR, CUSHION ARM PIVOT

Price €23.41
Contact us
#26 52464-KW3-000

BAND LOWER D'DAMPER

Price €21.12
#29 52486-GBF-830

COLLAR A, CUSHION UPPER

Price €10.44
#30 52487-GBF-830

COLLAR B, CUSHION UPPER

Price €8.26
#31 87516-KZ1-600

LABEL, RR DAMPER WARNING

Price €15.01
#33 90153-KW3-003 i

FLANGE BOLT, 10X45

Price €10.25
#34 90155-GBF-830

BOLT, FLANGE, 12X65

Price €11.74
#35 90304-GA6-003 i

NUT, ESSIEU WHEEL, 10MM

Price €6.92
#36 90306-KF0-003 i

FLANGE NUT, 12MM (FUSE RASHI)

Price €8.11
#37 91075-GBF-831

BEARING, NEEDLE, 20X26X20

Price €26.09
#38 91077-GS2-702

NEEDLE BEARING, 16X22X12

Price €44.39
#39 91079-KN5-003

BEARING

Price €28.18
#40 91262-GBF-831

DUST SEAL, 20X26X4

Price €12.13
#41 91263-GBF-831

DUST SEAL, 15X22X5

Price €8.47
#42 91351-GS2-701

COVER-POUSSIERE SUPERIERE OF DAMPER

Price €5.63
#43 91356-GBF-831

O-RING, 168X19

Price €6.65
#1 52400-GBF-841

CUSHION ASSY, RR (SHOWA)

Contact us
#3 52410-GBF-841

DAMPER COMP, RR

Contact us
#4 52421-GBF-831

ROD COMP, PISTON

Contact us
#7 52425-GBF-831

CASE COMP, DAMPER

Contact us
#9 52426-GBF-831

ROD COMP

Contact us
#19 52440-GBF-831

ADJUSTER, COMPRESSION DAMPING FORCE

Contact us
#27 52465-GBF-830

ARM SET, CUSHION

Contact us
#28 52471-GBF-830

PLATE, CUSHION CONNECTING

Contact us
#32 90128-GE2-000 i

BOLT, FLANGE, 10X61

Price €17.57
