SWINGARM 🏍️ CR500R

REAR FENDER 🏍️ CR500R

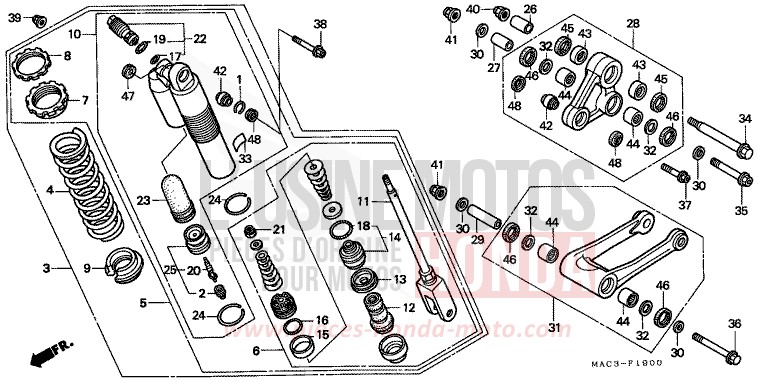

REAR CUSHION for CR500R NEUCLEAR RED (R177) from 1999

Reference

Product name

Unit price

#1 41405-HA7-670

RING, STOPPER

€7.08

#2 51453-KK0-004

CAP, AIR VALVE

€8.05

#3 52400-MAC-741

CUSHION ASSY, RR

#4 52401-MAC-681

SPRING, RR CUSHION (550N/MM,56KGF/MM)

#4 52402-MAC-681

SPRING, RR CUSHION (570N/MM,58KGF/MM)

#4 52403-MAC-681

SPRING, RR CUSHION (530N/MM,54KGF/MM)

#5 52410-MAC-741

DAMPER COMP, RR

#6 52421-MAC-741

ROD COMP, PISTON

#7 52422-KS6-701

SEAT, UPPER SPRING

€45.96

#8 52423-KS6-701

NUT, ADJUSTER

€38.16

#9 52424-KZ3-731

SEAT, SPRING

#10 52425-MAC-741

CASE ASSY, SUB

#11 52426-MAC-681

ROD COMP

#12 52427-KZ4-901

RUBBER, BUMPER

€27.95

#13 52428-KZ4-901

CAP, CASE

€29.80

#14 52429-KZ4-901

CASE COMP, ROD GUIDE

€49.91

#15 52431-MAC-681

RING, PISTON

€29.89

#16 52432-KZ4-901

O-RING, 375X20

€11.18

#17 52433-MAC-741

O-RING, 215X15

€5.58

#18 52434-KZ4-901

O-RING, 397X35

€10.76

#19 52435-MAC-741

O-RING, 255X20

€7.57

#20 52437-KA3-731

CORE, VALVE

€22.72

#21 52438-KA3-731

NUT, HEX, 12MM

€6.53

#22 52440-MAC-741

ADJUSTER, COMPRESSION DAMPING FORCE

#23 52451-KZ4-003

BLADDER

€40.09

#24 52452-KZ4-003

RING, SNAP

€7.86

#25 52453-KZ4-003

CAP, BLADDER

€81.67

#26 52463-ML3-600

COLLAR, CUSHION ARM PIVOT

€30.70

#27 52464-KZ3-730

COLLAR, CUSHION ARM

€17.88

#28 52465-MAC-740

ARM SET, CUSHION

#29 52473-KZ3-730

COLLAR, CONNECTING ROD

€19.37

#30 52475-KZ3-730

COLLAR, CONNECTING ROD SIDE

€16.32

#31 52475-MAC-680

ROD SET, CUSHION CONNECTING

#32 52476-KZ3-730

WASHER, THRUST

€8.14

#33 87516-KZ1-881 i

LABEL, RR DAMPER WARNING (FRENCH)

€15.01

#33 87516-KZ1-600

LABEL, RR DAMPER WARNING

€15.01

#34 90128-ML3-600

BOLT, CUSHION ARM PIVOT, 15X202

€29.84

#35 90129-KZ4-010 i

BOLT, FLANGE, 12X945

€24.32

#36 90130-KZ3-700

BOLT, FLANGE, 12X1185

€19.86

#37 90153-KS7-830

BOLT, FLANGE, 10X38

€7.26

#38 90182-KA3-730 i

BOLT, FLANGE, 10X57

€11.28

#39 90304-GA6-003 i

NUT, AXLE, 10MM

€6.92

#40 90305-MA1-003 i

NUT, U, 14MM

€10.28

#41 90306-181-761 i

NUT, FLANGE, 12MM

€9.91

#42 91074-MAC-741

BEARING, SPHERICAL, 10

€43.39

#43 91078-KZ3-731

BEARING, NEEDLE, 22X28X16

€32.52

#44 91079-KZ3-731

BEARING, NEEDLE, 20X26X20

€29.46

#45 91254-KS7-831

DUST SEAL, 22X28X5

€10.57

#46 91262-KZ3-731

DUST SEAL, 25X32X4

€9.06

#47 91351-KZ3-731 i

DUST SEAL, RR CUSHION PIVOT

€4.88

#48 91351-MAC-671 i

DUST SEAL, 16X26X3

€5.18

REAR CUSHION for CR500R NEUCLEAR RED (R177) from 1999
