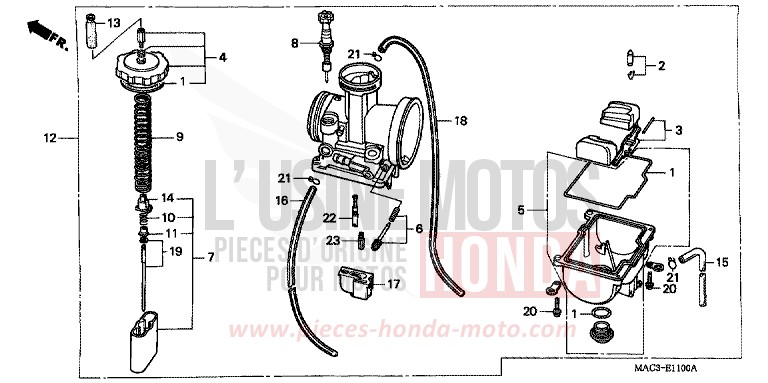

CARBURETOR for CR500R NEUCLEAR RED (R177) from 1998

CARBURETOR for CR500R NEUCLEAR RED (R177) from 1998
Reference
Product name
#1 16010-KA5-691

GASKET SET

Price €64.21
#2 16011-KA3-741 i

VALVE SET, FLOAT (CARBURETOR NO)

Price €80.56
#3 16013-KA3-741 i

FLOAT SET

Price €73.28
#4 16014-KA5-691

TOP SET

Price €59.33
Contact us
#5 16015-VM0-004

CHAMBER SET, FLOAT

Price €162.53
Contact us
#6 16016-ML3-910

SCREW SET A

Price €47.18
#7 16022-ML3-670

VALVE SET, THROTTLE

Price €176.88
Contact us
#8 16046-KA5-691

VALVE SET, STARTER

Price €81.47
#9 16050-KA5-691

SPRING, COMPRESSION COIL

Price €20.92
Contact us
#10 16051-KA3-761

SPRING, COMPRESSION COIL

Price €27.25
Contact us
#11 16066-KA3-761

COLLAR, SPRING SETTING

Price €7.34
Contact us
#12 16100-MAC-680

CARBURETOR ASSY (PJ27N A)

Contact us
#13 16118-GHB-600 i

CAP, CABLE SEALING

Price €14.81
#14 16137-KA3-761

HOLDER, CABLE

Price €12.84
Contact us
#15 16143-MAC-880 i

TUBE, OVERFLOW

Price €6.53
Contact us
#16 16144-MAC-880 i

TUBE, AIR VENT

Price €7.06
#17 16185-KA3-761

PLATE, BUFFER

Price €16.13
Contact us
#18 16198-MAC-880 i

TUBE, AIR VENT

Price €7.06
#19 16202-ML3-681

NEEDLE SET, JET (R1368NS)

Price €46.32
Contact us
#20 93892-0401618 i

SCREW-WASHER, 4X16

Price €0.85
#21 95002-02079

CLIP, TUBE (B7)

Price €0.88
#22 99103-4400550

JET, SLOW, 55

Price €13.45
#23 99113-GHB1700 i

JET, MAIN, 170

Price €14.78
