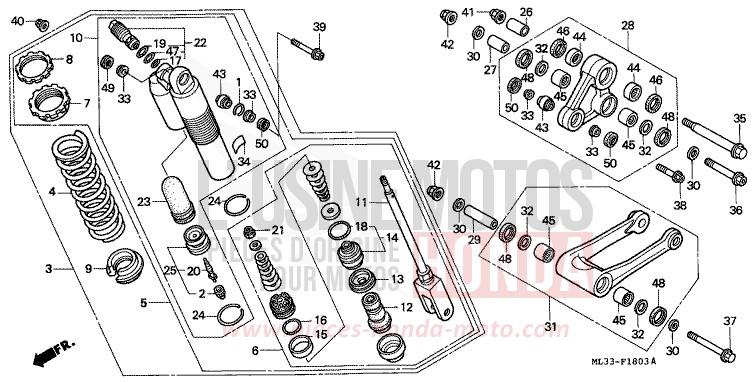

REAR CUSHION (CR500RS/RT/RV) for CR500R NEUCLEAR RED (R177) from 1995

REAR CUSHION (CR500RS/RT/RV) for CR500R NEUCLEAR RED (R177) from 1995
Reference
Product name
#1 41405-HA7-670

RING, STOPPER

Price €6.00
#2 51453-KK0-004

CAP, AIR VALVE

Price €6.37
#4 52402-KZ4-601

SPRING, RR CUSHION (KAYABA) (510N/MM,52KGF/MM)

Contact us
#4 52403-MAC-681

SPRING, RR CUSHION (530N/MM,54KGF/MM)

Contact us
#4 52401-MAC-681

SPRING, RR CUSHION (550N/MM,56KGF/MM)

Contact us
#4 52402-MAC-681

SPRING, RR CUSHION (570N/MM,58KGF/MM)

Contact us
#7 52422-KS6-701

SEAT, UPPER SPRING

Price €25.93
#8 52423-KS6-701

NUT, ADJUSTER

Price €33.30
#9 52424-KZ3-731

SEAT, SPRING

Contact us
#11 52426-MAC-681

ROD COMP

Contact us
#12 52427-KZ4-901

RUBBER, BUMPER

Price €22.56
#13 52428-KZ4-901

CAP, CASE

Price €18.43
Contact us
#14 52429-KZ4-901

CASE COMP, ROD GUIDE

Price €42.89
#15 52431-MAC-681

RING, PISTON

Price €27.40
#16 52432-KZ4-901

O-RING, 375X20

Price €7.85
#17 52433-MAC-681

O-RING, 215X15

Contact us
#18 52434-KZ4-901

O-RING, 397X35

Price €7.64
Contact us
#19 52435-MAC-681

O-RING, 219X20

Contact us
#20 52437-KA3-731

CORE, VALVE

Price €20.02
#21 52438-KA3-731

NUT, HEX, 12MM

Price €4.37
#22 52440-MAC-681

ADJUSTER, COMPRESSION DAMPING FORCE

Contact us
#23 52451-KZ4-901

BLADDER

Price €38.66
#24 52452-KZ4-003

RING, SNAP

Price €10.31
Contact us
#25 52453-KZ4-003

CAP, BLADDER

Price €59.74
#26 52463-ML3-600

COLLAR, CUSHION ARM PIVOT

Price €19.28
Contact us
#27 52464-KZ3-730

COLLAR, CUSHION ARM

Price €17.88
Contact us
#29 52473-KZ3-730

COLLAR, CONNECTING ROD

Price €19.37
Contact us
#30 52475-KZ3-730

COLLAR, CONNECTING ROD SIDE

Price €12.47
#31 52475-MAC-680

ROD SET, CUSHION CONNECTING

Contact us
#32 52476-KZ3-730

WASHER, THRUST

Price €8.14
Contact us
#33 52486-ML3-790

COLLAR, CUSHION PIVOT

Price €6.77
Contact us
#34 87516-KZ1-600

LABEL, RR DAMPER WARNING

Price €14.92
#34 87516-KZ1-880

LABEL, RR DAMPER WARNING (FRENCH)

Price €14.72
#35 90128-ML3-600

BOLT, CUSHION ARM PIVOT, 15X202

Price €29.84
Contact us
#36 90129-KZ4-010

BOLT, FLANGE, 12X945

Price €15.96
Contact us
#37 90130-KZ3-700

BOLT, FLANGE, 12X1185

Price €19.86
Contact us
#38 90153-KS7-830

BOLT, FLANGE, 10X38

Price €7.26
Contact us
#39 90182-KA3-730

BOLT, FLANGE, 10X57

Price €10.96
#40 90304-GA6-003

NUT, AXLE, 10MM

Price €6.53
#41 90305-MA1-003

NUT, U, 14MM

Price €9.30
#42 90306-181-761

NUT, FLANGE, 12MM

Price €7.51
#43 91074-MAC-681

BEARING, SPHERICAL, 10

Price €37.26
Contact us
#44 91078-KZ3-731

BEARING, NEEDLE, 22X28X16

Price €31.24
#45 91079-KZ3-731

BEARING, NEEDLE, 20X26X20

Price €29.46
Contact us
#46 91254-KS7-831

DUST SEAL, 22X28X5

Price €11.28
#47 91256-KZ4-711

O-RING, 218X24

Price €6.02
#48 91262-KZ3-731

DUST SEAL, 25X32X4

Price €7.40
#49 91351-KZ3-731

DUST SEAL, RR CUSHION PIVOT

Price €5.58
#50 91351-MAC-671

DUST SEAL, 16X26X3

Price €7.90
#3 52400-MAC-681

CUSHION ASSY, RR

Contact us
#5 52410-MAC-681

DAMPER COMP, RR

Contact us
#6 52421-MAC-681

ROD COMP, PISTON

Contact us
#10 52425-MAC-681

CASE ASSY, SUB

Contact us
#28 52465-MAC-680

ARM SET, CUSHION

Contact us
