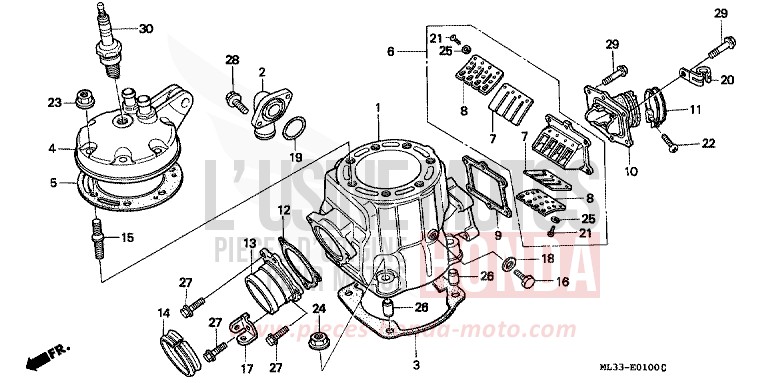

CYLINDER HEAD/CYLINDER for CR500R NEUCLEAR RED (R177) from 1991

CYLINDER HEAD/CYLINDER for CR500R NEUCLEAR RED (R177) from 1991
Reference
Product name
#1 12100-ML3-680

CYLINDER COMP

Price €772.55
Contact us
#2 12103-ML3-680

JOINT, WATER HOSE

Price €66.11
Contact us
#3 12191-ML3-680

GASKET, CYLINDER

Price €12.91
#4 12200-ML3-760

HEAD COMP, CYLINDER

Price €273.17
Contact us
#5 12254-ML3-680

GASKET, CYLINDER HEAD

Price €50.56
#6 14100-ML3-681

VALVE ASSY, REED

Price €276.41
Contact us
#9 14132-KA5-740

GASKET A, REED VALVE

Price €8.95
#10 16221-ML3-681

INSULATOR, CARBURETOR

Price €113.24
#11 16223-KA5-690

BAND, INSULATOR

Price €32.69
#12 18291-KA5-690

GASKET, EX MANIFOLD

Contact us
#13 18352-KA5-691

JOINT, EX PIPE

Price €148.99
Contact us
#14 18359-KA5-690

SEAL, EX MANIFOLD

Price €16.64
#15 90032-KA5-690

BOLT, STUD (SPECIAL)

Price €7.38
#16 90037-360-000

BOLT, OIL CHECK

Price €4.70
#17 90445-ML3-681

PLATE, SPRING HANGER

Price €10.79
#18 90543-273-000

PACKING, FR FORK DRAIN COCK

Price €2.18
#19 91356-GC4-731

O-RING, 221X35

Price €6.49
#20 91406-657-671

CLIP, WIRE HARNESS

Price €6.23
#22 93500-050250A

SCREW, PAN, 5X25

Price €1.04
#23 94050-08000

NUT, FLANGE, 8MM

Price €2.40
#24 94050-10000

NUT, FLANGE, 10MM

Price €2.88
#26 94301-12200

DOWEL PIN, 12X20

Price €2.04
#27 96001-0601807

BOLT, FLANGE, 6X18

Price €1.22
#28 96001-0602000

BOLT, FLANGE, 6X20

Price €1.22
#29 96300-0602200

BOLT, FLANGE, 6X22

Price €1.62
#30 98079-58649

PLUG, SPARK (BR8EG NGK)

Price €11.04
#30 98079-58659

PLUG, SPARK (W24ESR-V) (DENSO)

Price €11.04
#30 98079-58669

PLUG, SPARK (QN86 CHAMPION)

Price €11.04
