SWINGARM 🏍️ CR500R
REAR FENDER (CR500RM-) 🏍️ CR500R

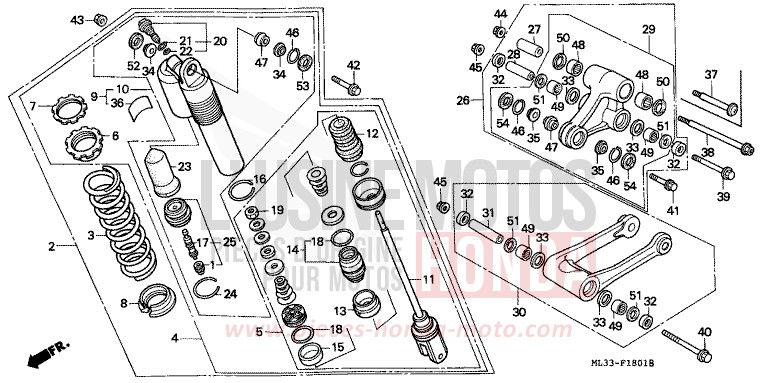

REAR CUSHION (CR500RM/RN/RP) for CR500R FLASH RED (R119) from 1992

REAR CUSHION (CR500RM/RN/RP) for CR500R FLASH RED (R119) from 1992
Reference
Product name
#1 51453-KK0-004

CAP, AIR VALVE

Price €8.05
#2 52400-ML3-971

CUSHION ASSY, RR (KAYABA)

Contact us
#3 52401-KZ4-731

SPRING, RR CUSHION (KAYABA) (470N/MM,48KGF/MM)

Contact us
#3 52401-ML3-791

SPRING, RR CUSHION (KAYABA) (51N/MM,52KGF/MM)

Contact us
#4 52410-ML3-791

DAMPER COMP, RR (KAYABA)

Contact us
#5 52421-ML3-791

ROD COMP, PISTON (KAYABA)

Contact us
#6 52422-KS6-701

SEAT, UPPER SPRING

Price €45.96
#7 52423-KS6-701

NUT, ADJUSTER

Price €38.16
#8 52424-KZ3-731

SEAT, SPRING

Contact us
#10 52425-ML3-791

CASE ASSY, SUB (KAYABA)

Contact us
#11 52426-ML3-791

ROD COMP (KAYABA)

Contact us
#12 52427-KZ4-701

RUBBER, BUMPER

Price €27.82
#13 52428-KS6-701

CAP, CASE

Price €29.69
Contact us
#14 52429-KS6-831 i

CASE COMP, ROD GUIDE

Price €45.88
#15 52431-KS6-831

RING, PISTON

Price €26.34
#16 52435-ML3-791

RING, SNAP (KAYABA)

Price €8.32
Contact us
#17 52437-KA3-731

CORE, VALVE

Price €22.72
#18 52437-KS6-305

O-RING SET

Contact us
#19 52438-KA3-731

NUT, HEX, 12MM

Price €6.53
#20 52440-ML3-791

ADJUSTER, COMPRESSION DAMPING FORCE (KAYABA)

Contact us
#21 52447-KS6-701

O-RING, 178X24 (KAYABA)

Price €5.82
#22 52448-KZ4-003

O-RING, 175X15

Contact us
#23 52451-KZ4-003

BLADDER

Price €40.09
#24 52452-KZ4-003

RING, SNAP

Price €7.86
Contact us
#25 52453-KZ4-003

CAP, BLADDER

Price €81.67
#26 52460-ML3-790

ARM ASSY, CUSHION

Price €421.40
Contact us
#27 52463-KZ3-730

COLLAR, CUSHION ARM PIVOT

Contact us
#28 52464-KZ3-730

COLLAR, CUSHION ARM

Price €17.88
Contact us
#30 52470-KZ3-730

ROD ASSY, CUSHION CONNECTING

Price €319.43
Contact us
#31 52473-KZ3-730

COLLAR, CONNECTING ROD

Price €19.37
Contact us
#32 52475-KZ3-730

COLLAR, CONNECTING ROD SIDE

Price €16.32
#33 52476-KZ3-730

WASHER, THRUST

Price €8.14
Contact us
#34 52486-KZ3-730

COLLAR, CUSHION PIVOT

Contact us
#35 52486-ML3-790

COLLAR, CUSHION PIVOT

Price €6.77
Contact us
#36 87516-KZ4-671

LABEL, RR DAMPER WARNING

Contact us
#36 87516-ML3-970

LABEL, RR DAMPER WARNING (FRENCH)

Price €5.54
Contact us
#37 90128-KZ4-010 i

BOLT, FLANGE, 14X108

Price €35.56
Contact us
#39 90129-KZ4-010 i

BOLT, FLANGE, 12X945

Price €24.32
Contact us
#40 90130-KZ3-700

BOLT, FLANGE, 12X1185

Price €19.86
Contact us
#41 90153-KS7-830

BOLT, FLANGE, 10X38

Price €7.26
Contact us
#42 90182-KA3-730 i

BOLT, FLANGE, 10X57

Price €11.28
#43 90304-GA6-003 i

NUT, AXLE, 10MM

Price €6.92
#45 90306-KA4-003 i

NUT, FLANGE, 12MM

Price €9.91
#46 90613-PF4-300

RING, SNAP, 26MM

Price €6.11
#47 91074-KZ3-731 i

BEARING, SPHERICAL, 10

Price €36.26
Contact us
#48 91078-KZ3-731

BEARING, NEEDLE, 22X28X16

Price €32.52
#49 91079-KZ3-731

BEARING, NEEDLE, 20X26X20

Price €29.46
Contact us
#50 91254-KS7-831

DUST SEAL, 22X28X5

Price €10.57
#51 91262-KZ3-731

DUST SEAL, 25X32X4

Price €9.06
#52 91351-GS2-701

DUST SEAL, RR CUSHION UPPER

Price €5.63
#53 91351-KZ3-730 i

DUST SEAL, RR CUSHION PIVOT

Price €4.88
#54 91351-KZ3-731 i

DUST SEAL, RR CUSHION PIVOT

Price €4.88
