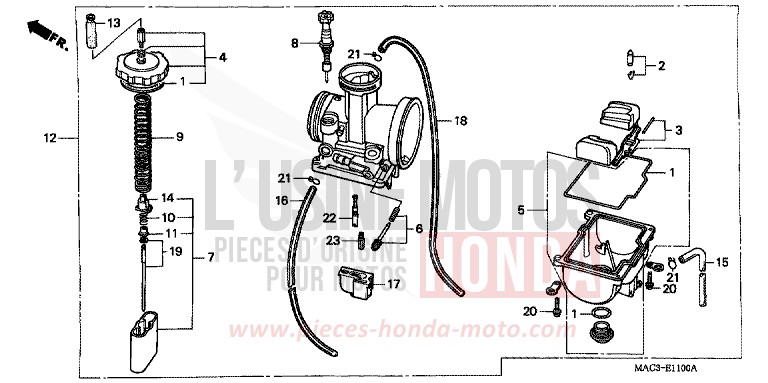

CARBURETOR for CR500R EXPLOSION RED (R254) from 2001

CARBURETOR for CR500R EXPLOSION RED (R254) from 2001
Reference
Product name
#1 16010-KA5-691

GASKET SET

Price €57.16
#2 16011-KA3-741

VALVE SET, FLOAT (CARBURETOR NO)

Price €67.06
#3 16013-KA3-741

FLOAT SET

Price €60.31
#4 16014-KA5-691

TOP SET

Price €59.33
Contact us
#5 16015-VM0-004

CHAMBER SET, FLOAT

Price €162.53
Contact us
#6 16016-ML3-910

SCREW SET A

Price €48.10
#9 16050-KA5-691

SPRING, COMPRESSION COIL

Price €20.92
Contact us
#10 16051-KA3-761

SPRING, COMPRESSION COIL

Price €27.25
Contact us
#11 16066-KA3-761

COLLAR, SPRING SETTING

Price €8.48
Contact us
#13 16118-GHB-600

CAP, CABLE SEALING

Price €15.34
#14 16137-KA3-761

HOLDER, CABLE

Price €12.84
Contact us
#15 16143-MAC-880

TUBE, OVERFLOW

Price €9.67
Contact us
#16 16144-MAC-880

TUBE, AIR VENT

Price €6.32
#17 16185-KA3-761

PLATE, BUFFER

Price €16.13
Contact us
#18 16198-MAC-880

TUBE, AIR VENT

Price €6.32
#19 16202-ML3-681

NEEDLE SET, JET (R1368NS)

Price €46.32
Contact us
#20 93892-0401618

SCREW-WASHER, 4X16

Price €0.84
#21 95002-02079

CLIP, TUBE (B7)

Price €0.86
#22 99103-4400550

JET, SLOW, 55

Price €13.19
#23 99113-GHB1700

JET, MAIN, 170

Price €14.50
#7 16022-ML3-670

VALVE SET, THROTTLE

Price €176.88
Contact us
#8 16046-KA5-691

VALVE SET, STARTER

Price €84.38
#12 16100-MAC-680

CARBURETOR ASSY (PJ27N A)

Contact us
