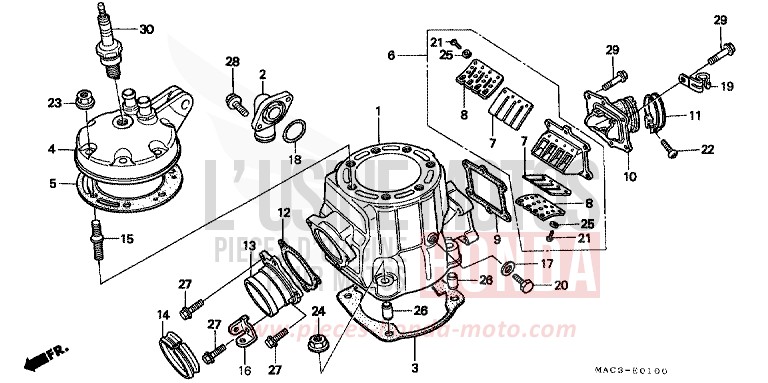

CYLINDER HEAD/CYLINDER for CR500R EXPLOSION RED (R254) from 2000

CYLINDER HEAD/CYLINDER for CR500R EXPLOSION RED (R254) from 2000
Reference
Product name
#1 12110-MAC-690

CYLINDER COMP A

Price €1,106.14
Contact us
#1 12120-MAC-690

CYLINDER COMP B

Contact us
#1 12130-MAC-690

CYLINDER COMP C

Contact us
#2 12103-ML3-680

JOINT, WATER HOSE

Price €66.11
Contact us
#3 12191-MAC-680 i

GASKET, CYLINDER

Price €23.86
#4 12200-ML3-760

HEAD COMP, CYLINDER

Price €273.17
Contact us
#5 12254-ML3-680

GASKET, CYLINDER HEAD

Price €57.97
#6 14100-ML3-681

VALVE ASSY, REED

Price €276.41
Contact us
#7 14111-ML3-681

REED VALVE ONLY

Price €37.94
#8 14121-ML3-681

STOPPER, REED VALVE

Price €27.29
Contact us
#9 14132-MAC-680 i

GASKET, REED VALVE

Price €9.34
#10 16221-ML3-681 i

INSULATOR, CARBURETOR

Price €137.11
#11 16223-KA5-690

BAND, INSULATOR

Price €55.48
#12 18291-ML3-791 i

GASKET, EX FLANGE

Price €11.78
#13 18352-KA5-691

JOINT, EX PIPE

Price €148.99
Contact us
#14 18359-KA5-690

SEAL, EX MANIFOLD

Price €13.22
#15 90032-KA5-690

BOLT, STUD (SPECIAL)

Price €7.31
#16 90445-ML3-681 i

PLATE, SPRING HANGER

Price €12.82
#17 90463-ML7-000 i

WASHER, SEALING, 65MM

Price €4.62
#18 91356-GC4-731

O-RING, 221X35

Price €8.36
#19 91406-657-671

CLIP, WIRE HARNESS

Price €3.36
#20 92301-060100A i

BOLT, RECESSED, 6X10

Price €1.00
#21 93500-030080H i

SCREW, PAN, 3X8

Price €0.95
#22 93500-050250A i

SCREW, PAN, 5X25

Price €1.07
#23 94050-08000 i

NUT, FLANGE, 8MM

Price €2.45
#24 94050-10000 i

NUT, FLANGE, 10MM

Price €2.94
#25 94111-03800 i

WASHER, SPRING, 3MM

Price €0.78
#26 94301-12200 i

DOWEL PIN, 12X20

Price €2.08
#27 96001-0601807 i

BOLT, FLANGE, 6X18

Price €1.25
#28 96001-0602000 i

BOLT, FLANGE, 6X20

Price €1.25
#29 96300-0602200 i

BOLT, FLANGE, 6X22

Price €1.66
#30 98079-58659

PLUG, SPARK (W24ESR-V) (DENSO)

Price €11.04
#30 98079-58679

PLUG, SPARK (BR8EG) (NGK)

Price €11.04
