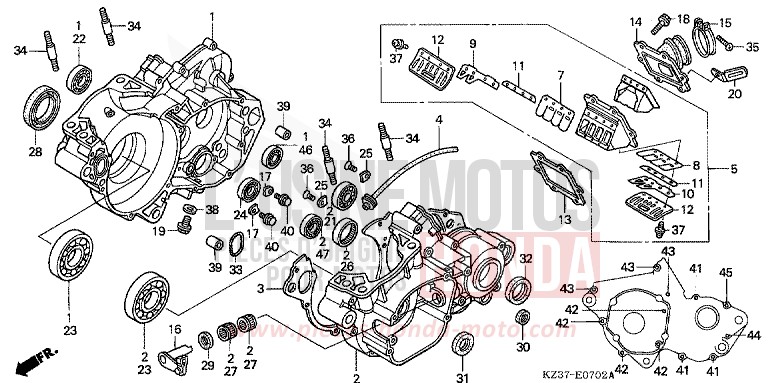

CRANKCASE (CR250R4) for CR250R EXTREME RED (R292) from 2004

CRANKCASE (CR250R4) for CR250R EXTREME RED (R292) from 2004
Reference
Product name
#4 11211-ML3-910

TUBE, BREATHER

Price €13.63
#13 14132-KZ3-L20

GASKET, REED VALVE

Price €17.22
#15 16223-KA5-690

BAND, INSULATOR

Price €32.69
#16 22810-KS7-000

LIFTER COMP, CLUTCH

Price €118.86
#17 23521-KW3-000

PLATE A, BEARING SETTING

Price €8.94
#18 90004-GHB-660

BOLT, FLANGE, 6X22 (NSHF)

Price €4.03
#19 90015-KA3-711

BOLT, SPECIAL, 12MM

Price €8.23
#20 90601-KJ9-000

CLIP, 4X50

Price €5.95
#21 91001-ML3-873

BEARING, RADIAL BALL, 24X56X14 (NTN)

Price €42.18
#22 91002-KZ3-L21

BEARING, RADIAL BALL, 25X52X135

Price €37.26
#23 91003-KA4-771

BEARING, BALL, 63/28-CS30 (KOYO)

Price €37.26
#24 91004-KZ3-L11

BEARING, RADIAL BALL, 6905U

Price €37.26
#25 91012-KA3-710

PLATE, COUNTERSHAFT BEARING

Price €8.77
#26 91022-KA4-740

BEARING, SHELL, 33X38X8 (NTN)

Price €37.57
#27 91053-719-005

BEARING, NEEDLE, 12X16X10 (NTN)

Price €25.01
#28 91201-KA4-004

OIL SEAL, 38X58X11 (NOK)

Price €17.48
#29 91201-951-003

OIL SEAL, 12X18X3 (ARAI)

Price €9.20
#30 91203-KA4-771

OIL SEAL, 14X22X5 (NOK)

Price €7.72
#30 91203-KA4-772

OIL SEAL, 14X22X5 (ARAI)

Price €4.13
#31 91205-KZ3-861

OIL SEAL, 20X37X7

Price €18.29
#32 91207-ML3-871

OIL SEAL, 31X40X7 (ARAI)

Price €12.89
#33 91301-KZ3-L20

O-RING, 372X27

Price €11.10
Contact us
#34 92900-100400B

BOLT, STUD, 10X40

Price €2.04
#35 93500-050250A

SCREW, PAN, 5X25

Price €1.04
#36 93600-060120A

SCREW, FLAT, 6X12

Price €1.04
#37 93892-0300808

SCREW-WASHER, 3X8

Price €0.86
#38 94109-12000

WASHER, DRAIN PLUG, 12MM

Price €1.74
#39 94301-14200

DOWEL PIN, 14X20

Price €2.04
#40 96001-0601400

BOLT, FLANGE, 6X14

Price €1.32
#41 96001-0604000

BOLT, FLANGE, 6X40

Price €1.70
#42 96001-0605000

BOLT, FLANGE, 6X50

Price €1.70
#43 96001-0606000

BOLT, FLANGE, 6X60

Price €1.70
#44 96001-0607500

BOLT, FLANGE, 6X75

Price €1.78
#45 96001-0608000

BOLT, FLANGE, 6X80

Price €1.78
#46 96100-6203000

BEARING, RADIAL BALL, 6203

Price €16.01
#47 96140-6203000

BEARING, RADIAL BALL, 6203U

Price €19.12
#47 91001-KSK-671

BEARING, RADIAL BALL, 6203U

Price €38.10
#1 04921-KSK-670

CRANKCASE COMP, R

Price €940.87
Contact us
#2 04922-KSK-670

CRANKCASE COMP, L

Price €1,059.73
Contact us
#3 11191-KSK-670

GASKET, CRANKCASE

Price €30.26
Contact us
#5 14100-KSK-671

VALVE ASSY, REED

Price €358.20
Contact us
#7 14111-KSK-671

REED VALVE ONLY, UPPER

Price €86.94
#8 14112-KSK-671

REED VALVE ONLY, LOWER

Price €120.49
#9 14113-KSK-671

SUB REED VALVE ONLY, UPPER

Price €13.58
Contact us
#10 14114-KSK-671

SUB REED VALVE ONLY, LOWER

Contact us
#11 14115-KSK-671

SPACER, REED VALVE

Price €14.70
#12 14121-KZ3-L31

STOPPER, REED VALVE

Price €29.14
#14 16221-KSK-670

INSULATOR, CARBURETOR

Price €66.70
Contact us
