SWINGARM (CR125RP/RR/RS/RT) 🏍️ CR125R

REAR FENDER (EXCEPT CR125RL) 🏍️ CR125R

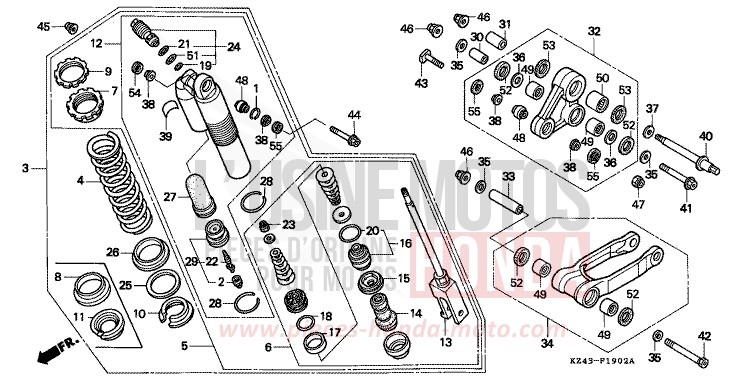

REAR CUSHION (CR125RS/RT) for CR125R NEUCLEAR RED (R177) from 1995

Reference

Product name

Unit price

#1 41405-HA7-670

RING, STOPPER

€6.00

#2 51453-KK0-004

CAP, AIR VALVE

€6.37

#4 52403-MAC-681

SPRING, RR CUSHION (530N/MM,54KGF/MM)

#4 52401-MAC-681

SPRING, RR CUSHION (550N/MM,56KGF/MM)

#4 52402-KZ4-601

SPRING, RR CUSHION (KAYABA) (510N/MM,52KGF/MM)

#7 52422-KS6-701

SEAT, UPPER SPRING

€25.93

#9 52423-KS6-701

NUT, ADJUSTER

€33.30

#10 52424-KS6-701

SEAT, SPRING LOWER

€15.91

#14 52427-KZ4-901

RUBBER, BUMPER

€22.56

#15 52428-KZ4-901

CAP, CASE

€18.43

#16 52429-KZ4-901

CASE COMP, ROD GUIDE

€42.89

#17 52431-MAC-681

RING, PISTON

€27.40

#18 52432-KZ4-901

O-RING, 375X20

€7.85

#19 52433-MAC-681

O-RING, 215X15

#20 52434-KZ4-901

O-RING, 397X35

€7.64

#21 52435-MAC-681

O-RING, 219X20

#22 52437-KA3-731

CORE, VALVE

€20.02

#23 52438-KA3-731

NUT, HEX, 12MM

€4.37

#24 52440-MAC-681

ADJUSTER, COMPRESSION DAMPING FORCE

#25 52445-KA3-831

WASHER, SPRING SEAT

€14.87

#26 52445-KT1-671

WASHER, SPRING SEAT

#27 52451-KZ4-901

BLADDER

€38.66

#28 52452-KZ4-003

RING, SNAP

€10.31

#29 52453-KZ4-003

CAP, BLADDER

€59.74

#30 52464-KZ3-860

COLLAR, CUSHION ARM

€22.27

#31 52464-KZ4-710

COLLAR, CUSHION ARM

€54.35

#32 52465-KZ3-600

ARM SET, CUSHION

#33 52473-KZ3-860

COLLAR, CONNECTING ROD

€24.08

#34 52475-KZ3-600

ROD SET, CUSHION CONNECTING

#35 52475-KZ3-860

COLLAR, CONNECTING ROD SIDE

€13.10

#36 52476-KZ3-860

WASHER, THRUST

€13.10

#37 52477-KZ4-710

COLLAR, 152X24X35

€13.10

#38 52486-ML3-790

COLLAR, CUSHION PIVOT

€6.77

#39 87516-KZ1-600

LABEL, RR DAMPER WARNING

€14.92

#39 87516-KZ1-880

LABEL, RR DAMPER WARNING (FRENCH)

€14.72

#40 90128-KZ4-710

BOLT, CUSHION ARM PIVOT

#41 90129-KZ3-861

BOLT, CUSHION ARM, 15X875

€27.52

#42 90130-KZ4-710

BOLT, CUSHION CONNECTING ROD, 15X113

€31.63

#43 90153-KZ4-710

BOLT, CUSHION LOWER, 10X435

€8.16

#44 90182-KA3-730

BOLT, FLANGE, 10X57

€10.96

#45 90304-GA6-003

NUT, AXLE, 10MM

€6.53

#46 90305-MA1-003

NUT, U, 14MM

€9.30

#47 90306-KZ4-711

NUT, U, 10MM

€5.41

#48 91074-MAC-681

BEARING, SPHERICAL, 10

€37.26

#49 91078-KZ3-731

BEARING, NEEDLE, 22X28X16

€31.24

#50 91078-KZ4-711

BEARING, NEEDLE, 25X32X27

€37.26

#51 91256-KZ4-711

O-RING, 218X24

€6.02

#52 91261-KZ3-861

DUST SEAL, 27X34X4

€9.23

#53 91262-KZ3-731

DUST SEAL, 25X32X4

€7.40

#54 91351-KZ3-731

DUST SEAL, RR CUSHION PIVOT

€5.58

#55 91351-MAC-671

DUST SEAL, 16X26X3

€7.90

#3 52400-KZ4-611

CUSHION ASSY, RR (KAYABA)

#5 52410-KZ4-611

DAMPER COMP, RR (KAYABA)

#6 52421-KZ4-611

ROD COMP, PISTON

#12 52425-KZ4-611

CASE ASSY, SUB

#13 52426-KZ4-601

ROD COMP

REAR CUSHION (CR125RS/RT) for CR125R NEUCLEAR RED (R177) from 1995
