REAR FORK/DRIVE CHAIN (3) 🏍️ CR125R

REAR FENDER 🏍️ CR125R

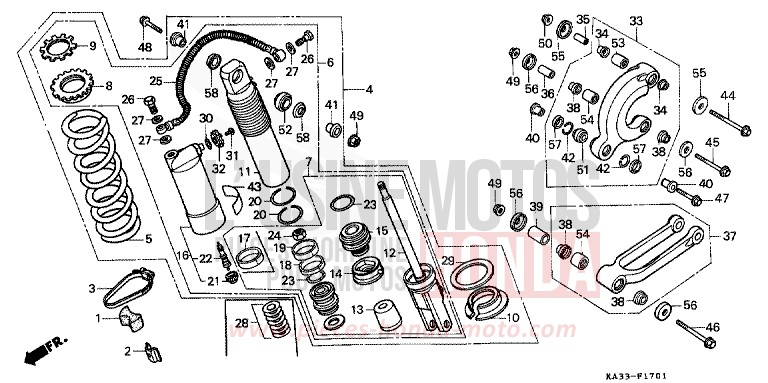

REAR CUSHION (2) for CR125R FLASH RED (R119) from 1986

Reference

Product name

Unit price

#1 50250-KA3-830

RUBBER, SUB TANK MOUNTING

#2 50251-KS7-000

RUBBER, SUB TANK

#3 50252-KA3-830

BAND, SUB TANK

#10 52424-KA3-831

SEAT, SPRING LOWER (KAYABA)

#13 52427-KA3-731

RUBBER, BUMPER

#14 52428-KA3-731

CAP, CASE

#21 52436-KA3-731

CAP, AIR VALVE

€12.07

#22 52437-KA3-731

CORE, VALVE

€20.02

#23 52437-KA3-832

O-RING SET

€7.93

#24 52438-KA3-731

NUT, HEX, 12MM

€4.37

#26 52441-KA3-731

BOLT, OIL

#27 52442-KA3-731

WASHER, OIL BOLT

€3.67

#29 52445-KA3-831

WASHER, SPRING SEAT

€14.87

#30 52447-KA3-731

O-RING, 24X108

#32 52449-KA3-831

DIAL, ADJUSTING

#33 52460-KA3-831

ARM ASSY, CUSHION

#34 52462-KA3-831

BUSH, CUSHION ARM

#35 52463-KA3-830

COLLAR, CUSHION ARM PIVOT

#36 52464-KA3-830

COLLAR, CUSHION ARM

#38 52472-KA3-831

BUSH, CUSHION CONNECTING ROD THRUST

€34.44

#39 52473-KA3-830

COLLAR, CONNECTING ROD PIVOT

#40 52486-KA3-731

COLLAR, DAMPER UPPER

#42 52487-KA3-731

RING, STOPPER

€6.18

#43 87516-KA3-741

LABEL, RR DAMPER CAUTION

#43 87516-KF0-621

LABEL, RR DAMPER CAUTION (FRENCH)

#44 90128-KA3-831

BOLT, FLANGE, 12X105

€25.67

#45 90129-KF0-000

BOLT, FLANGE, 10X77

€18.08

#47 90153-KA3-730

BOLT, FLANGE, 10X48

#48 90154-KA3-830

BOLT, FLANGE, 10X52

€9.72

#49 90304-GA6-003

NUT, AXLE, 10MM

€6.53

#50 90306-KA4-003

NUT, FLANGE, 12MM

€7.51

#51 91077-KA3-731

BEARING, SPHERICAL, 14MM

€37.55

#52 91077-KA3-831

BEARING, SPHERICAL, 14MM

€39.08

#53 91078-KA3-831

BEARING, NEEDLE, 191X261X27 (NTN)

#54 91079-KA3-831

BEARING, NEEDLE, 175X245X22

€41.18

#55 91261-KA3-831

SEAL, CUSHION ARM PIVOT (ARAI)

#56 91262-KA3-831

SEAL, CUSHION CONNECTING ROD PIVOT (ARAI)

€13.66

#57 91351-KA3-731

DUST SEAL, RR CUSHION UPPER

#58 91351-KA3-831

DUST SEAL, RR CUSHION UPPER

€10.94

#4 52400-KS6-671

CUSHION ASSY, RR (KAYABA)

#5 52401-KS6-004

SPRING, RR CUSHION (KAYABA) (4315N/MM,44KGF/MM)

#5 52402-KS6-305

SPRING, RR CUSHION (KAYABA) (3923N/MM,40KGF/MM)

#5 52403-KS6-305

SPRING, RR CUSHION (KAYABA) (4707N/MM,48KGF/MM)

#6 52410-KS6-671

DAMPER COMP, RR (KAYABA)

#7 52421-KS6-004

ROD COMP, PISTON (KAYABA)

#8 52422-KS6-004

SEAT, SPRING UPPER

#9 52423-KS6-004

NUT, ADJUSTER

#11 52425-KS6-004

CASE, RR DAMPER

#12 52426-KS6-004

ROD COMP (KAYABA)

#15 52429-KS6-004

CASE COMP, ROD GUIDE (KAYABA)

€34.97

#16 52430-KS6-004

SUB TANK ASSY (KAYABA)

#18 52431-KS6-014

RING A, PISTON (KAYABA)

#19 52433-KS6-004

RING B, PISTON (KAYABA)

#20 52435-KS6-004

RING, SNAP

#25 52440-KS6-004

HOSE COMP, JOINT (KAYABA)

#28 52442-KS6-810

VALVE KIT, RR DAMPER (KAYABA)

#31 52448-KS6-004

SCREW, PAN, 3X8

#37 52470-KS6-000

ROD ASSY, CUSHION CONNECTING

#41 52486-KS6-004

COLLAR, DAMPER UPPER

€13.96

#46 90130-KS6-000

BOLT, FLANGE, 10X83

REAR CUSHION (2) for CR125R FLASH RED (R119) from 1986
