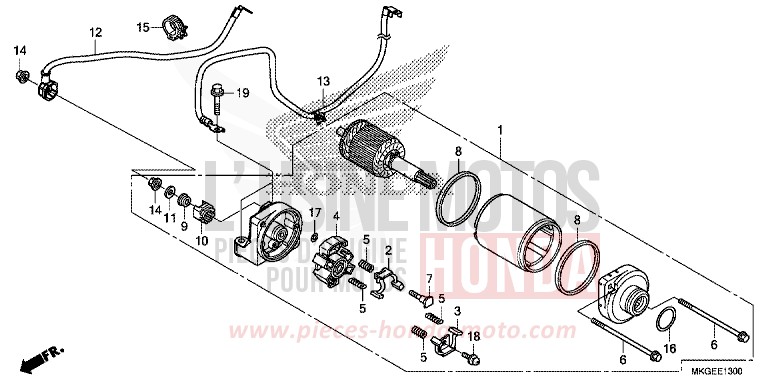

STARTER MOTOR for CMX500 MILLENNIUM RED (R263) from 2020

STARTER MOTOR for CMX500 MILLENNIUM RED (R263) from 2020
Reference
Product name
#1 31200-MGZ-J01

MOTOR ASSY, STARTER (MITSUBA)

Price €399.31
#2 31201-MEW-921

BRUSH SET A, CARBON

Price €18.88
#3 31202-MEW-921

BRUSH SET B, CARBON

Price €18.88
#4 31203-MEW-921

HOLDER, BRUSH

Price €13.49
#5 31204-MEW-921

SPRING, CARBON BRUSH

Price €6.92
#6 31205-HP5-601

BOLT, SETTING

Price €7.91
#7 31206-MEW-921

BOLT, TERMINAL

Price €6.38
#8 31207-HP5-601

RING

Price €6.80
#9 31208-MEW-921

INSULATOR

Price €5.58
#10 31209-MEW-921

STOPPER, TERMINAL

Price €12.14
#11 31210-MEW-921

WASHER

Price €5.44
#12 32410-MKG-A00

CABLE, STARTER MOTOR

Price €28.58
#13 32601-MKG-A00

CABLE, BATTERY EARTH

Price €27.65
#14 90071-MB0-000 i

NUT-WASHER, 6MM

Price €6.12
#15 90690-GHB-651 i

CLIP, CABLE, 15MM

Price €2.08
#16 91309-425-003 i

O-RING, 244X31 (ARAI)

Price €12.66
#17 91320-MB0-000

O-RING, 4X2

Price €5.34
#18 93892-0501208 i

SCREW-WASHER, 5X12

Price €1.34
#19 95801-0602800 i

BOLT, FLANGE, 6X28

Price €1.34
