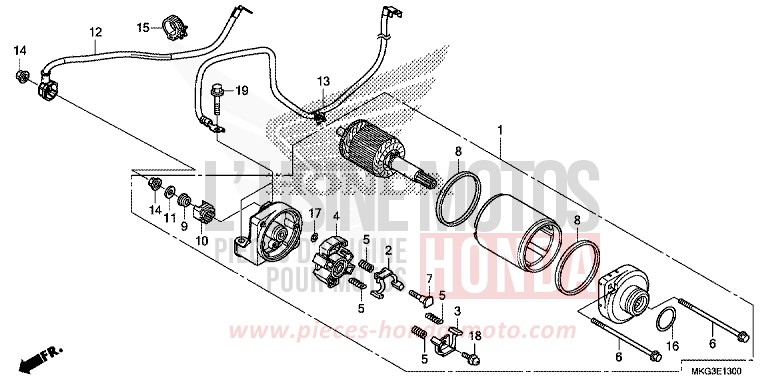

STARTER MOTOR for CMX500 MILLENNIUM RED (R263) from 2019

STARTER MOTOR for CMX500 MILLENNIUM RED (R263) from 2019
Reference
Product name
#1 31200-MGZ-J01

MOTOR ASSY, STARTER (MITSUBA)

Price €1,453.50
#2 31201-MEW-921

BRUSH SET A, CARBON

Price €18.38
#3 31202-MEW-921

BRUSH SET B, CARBON

Price €18.44
#4 31203-MEW-921

HOLDER, BRUSH

Price €10.15
#5 31204-MEW-921

SPRING, CARBON BRUSH

Price €4.56
#6 31205-HP5-601

BOLT, SETTING

Price €7.67
#7 31206-MEW-921

BOLT, TERMINAL

Price €8.65
#8 31207-HP5-601

RING

Price €4.56
#9 31208-MEW-921

INSULATOR

Price €3.98
#10 31209-MEW-921

STOPPER, TERMINAL

Price €9.94
#11 31210-MEW-921

WASHER

Price €3.40
#12 32410-MKG-A00

CABLE, STARTER MOTOR

Price €42.35
#13 32601-MKG-A00

CABLE, BATTERY EARTH

Price €42.86
#14 90071-MB0-000

NUT-WASHER, 6MM

Price €5.28
#15 90690-GHB-651

CLIP, CABLE, 15MM

Price €2.04
#16 91309-425-003

O-RING, 244X31 (ARAI)

Price €8.52
#17 91320-MB0-000

O-RING, 4X2

Price €5.23
#18 93892-0501208

SCREW-WASHER, 5X12

Price €1.32
#19 95801-0602800

BOLT, FLANGE, 6X28

Price €1.32
