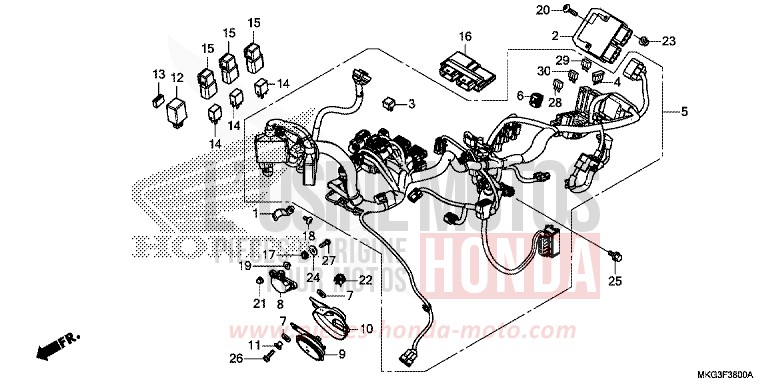

WIRE HARNESS for CMX500 MILLENNIUM RED (R263) from 2017

WIRE HARNESS for CMX500 MILLENNIUM RED (R263) from 2017
Reference
Product name
#1 19136-K87-A00

STAY, MAIN HARNESS

Price €6.49
#2 31600-MGZ-J01

RECTIFIER ASSY, REGULATE

Price €422.24
#3 31700-MM8-610

RECTIFIER COMP, SILICON

Price €47.05
#4 31730-MAS-601

DIODE ASSY, THREE WAY (SUMITOMO)

Price €48.62
#5 32100-MKG-L50

HARNESS, WIRE

Price €507.04
#6 32606-K44-V01

CAP, DUMMY (WPC 4P 090 M) (RED)

Price €16.82
#7 33714-KL3-620

RUBBER, TAILLIGHT BRACKET

Price €6.62
#8 35160-KVS-751

SENSOR ASSY, BANK ANGLE (M6)

Price €229.55
#9 38110-MGZ-J01

HORN COMP (HIGH)

Price €68.24
#10 38111-MGZ-J00

GUARD, HORN HEAT

Price €32.60
#11 38117-MGZ-J00

COLLAR, HORN SETTING

Price €6.52
#12 38301-MJE-D02

RELAY COMP, WINKER (MITSUBA)

Price €101.38
#13 38306-MGZ-K00

SUSPENSION, WINKER RELAY

Price €21.40
#14 38501-MCS-G01

RELAY COMP, POWER (MICRO ISO 4P)

Price €26.11
#15 38506-MCS-G00

SUSPENSION, POWER RELAY

Price €17.83
#16 38770-MKG-D52

PGM-FI UNIT

Price €464.15
#17 64535-MFJ-D00

RUBBER, SIDE COVER

Price €5.56
#18 90118-MGZ-D80

SCREW, PAN, 6X14

Price €3.83
#19 90129-MGZ-J00

COLLAR, BANK ANGLE SENSOR

Price €3.17
#20 90130-KYJ-900

SCREW, PAN, 6X22

Price €3.49
#21 90202-KCW-870

NUT, CAP, 6MM

Price €5.93
#22 90690-GHB-631

CLIP, CABLE, 8MM

Price €2.04
#23 94050-06070

NUT, FLANGE, 6MM

Price €1.06
#24 94103-06800

WASHER, PLAIN, 6MM

Price €0.77
#25 95701-0601408

BOLT, FLANGE, 6X14

Price €1.13
#26 95701-0602007

BOLT, FLANGE, 6X20

Price €1.13
#27 95701-0602208

BOLT, FLANGE, 6X22

Price €1.22
#28 98200-40750

FUSE, MINI (75A)

Price €1.22
#29 98200-41500

FUSE, MINI (15A)

Price €1.22
#30 98200-43000

FUSE, MINI (30A)

Price €1.81
