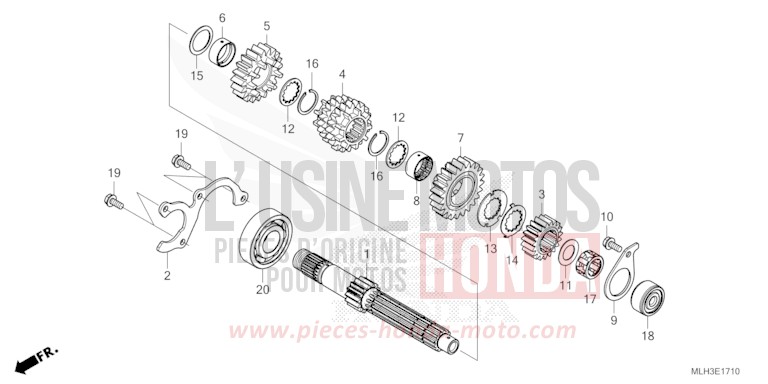

TRANSMISSION (MAINSHAFT) for CMX500 MAT LAUREL GREEN METALLIC (G207) from 2024

TRANSMISSION (MAINSHAFT) for CMX500 MAT LAUREL GREEN METALLIC (G207) from 2024
Reference
Product name
#1 23211-MKP-D00

MAINSHAFT (14T)

Price €608.69
#2 23212-MGZ-J00

PLATE, BEARING SETTING

Price €16.45
#3 23431-MKP-D00

GEAR, MAINSHAFT SECOND (19T)

Price €76.10
#4 23451-MKP-D00

GEAR, MAINSHAFT THIRD &amp FOURTH (20T/20T)

Price €108.44
#5 23491-MKP-D00

GEAR, MAINSHAFT FIFTH (20T)

Price €84.41
#6 23492-MGZ-J00

COLLAR, 25X28X12

Price €16.30
#7 23511-MKP-D00

GEAR, MAINSHAFT SIXTH (23T)

Price €84.14
#8 23512-MV9-670

COLLAR, SPLINE, 25X28X13

Price €38.28
#9 23531-MGZ-J00

PLATE, BEARING SETTING

Price €9.42
#10 90005-MGZ-J00

BOLT, FLANGE, 6X14 (NSHF)

Price €3.74
#11 90403-KE7-000

WASHER, THRUST, 172MM

Price €8.48
#12 90451-KY2-000

WASHER, SPLINE, 25X31X15

Price €5.34
#13 90454-KYJ-900

WASHER, SPLINE, 25X42X16

Price €8.84
#14 90455-KYJ-900

WASHER, LOCK, 25MM

Price €19.24
#15 90456-MA6-000

WASHER, THRUST, 25MM

Price €3.02
#16 90601-107-000

CIRCLIP, 25MM

Price €5.35
#17 91022-MN4-003

BEARING, NEEDLE, 17X27X148 (TOYO)

Price €27.85
#18 91023-MN4-003

OUTER, NEEDLE BEARING

Price €58.60
#19 95701-0601400

BOLT, FLANGE, 6X14

Price €1.13
#20 96100-6305000

BEARING, RADIAL BALL, 6305

Price €27.77
