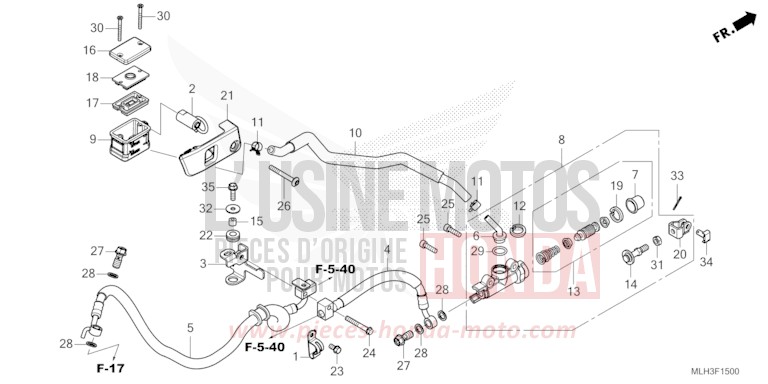

REAR BRAKE MASTER CYLINDER for CMX500 MAT GUNPOWDER BLACK METALLIC (NH436) from 2024

REAR BRAKE MASTER CYLINDER for CMX500 MAT GUNPOWDER BLACK METALLIC (NH436) from 2024
Reference
Product name
#1 43155-K2Y-A00

CLAMPER, BRAKE HOSE

Price €5.33
#2 43156-K87-A00

COLLAR COMP, OIL CUP

Price €21.59
#3 43160-K87-L50

STAY COMP, RR BRAKE HOSE

Price €16.84
#4 43314-K87-L51

HOSE COMP A, RR BRAKE

Price €90.64
#5 43317-K2Y-A01

HOSE COMP D, RR BRAKE

Price €75.54
#6 43503-KCY-671

CONNECTOR

Price €25.48
#7 43504-MB2-006

BOOT COMP

Price €13.19
#8 43510-K87-A01

CYLINDER SUB ASSY, RR MASTER (NISSIN)

Price €200.60
#9 43511-KV3-831

CUP COMP, OIL

Price €52.86
#10 43512-K87-A01

HOSE COMP, RR MASTER CYLINDER

Price €33.22
#11 43514-KS6-701

CLAMP, MASTER CYLINDER OIL HOSE

Price €15.61
#12 43517-KS6-701

CIRCLIP, RR MASTER CYLINDER

Price €5.99
#13 43520-MJ6-315

PISTON SET, MASTER CYLINDER (NISSIN)

Price €97.67
#14 43530-KZZ-901

ROD COMP, PUSH

Price €18.10
#15 45161-K87-L50

COLLAR, BRAKE HOSE STAY

Price €5.68
#16 45513-KK1-771

CAP, MASTER CYLINDER

Price €54.41
#17 45520-MG7-006

DIAPHRAGM

Price €24.06
#18 45521-HA2-006

PLATE, DIAPHRAGM

Price €13.94
#19 46182-MEL-D21

CIRCLIP

Price €5.16
#20 46504-KV6-702

JOINT, BRAKE ROD

Price €8.86
#21 50328-K87-A00

COVER, OIL CUP

Price €8.44
#22 64312-KWW-640

GROMMET, MAIN PIPE COVER

Price €5.09
#23 90013-GHB-610

BOLT, FLANGE, 6X12

Price €5.98
#24 90013-GHB-720

BOLT, FLANGE, 6X45

Price €3.74
#25 90111-GHB-660

BOLT, SOCKET, 6X22

Price €4.30
#26 90113-K87-A00

BOLT, SOCKET SPECIAL, 6X50

Price €4.48
#27 90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

Price €13.14
#28 90545-300-000

WASHER, OIL BOLT

Price €6.41
#29 91212-422-006

O-RING, 148X24

Price €5.78
#30 93600-040401G

SCREW, FLAT, 4X40

Price €0.62
#31 94002-080000S

NUT, HEX, 8MM

Price €1.04
#32 94103-06000

WASHER, PLAIN, 6MM

Price €0.84
#33 94201-20150

PIN, SPLIT, 20X15

Price €0.77
#34 95015-54000

PIN D, JOINT

Price €2.94
#35 95701-0602000

BOLT, FLANGE, 6X20

Price €1.06
