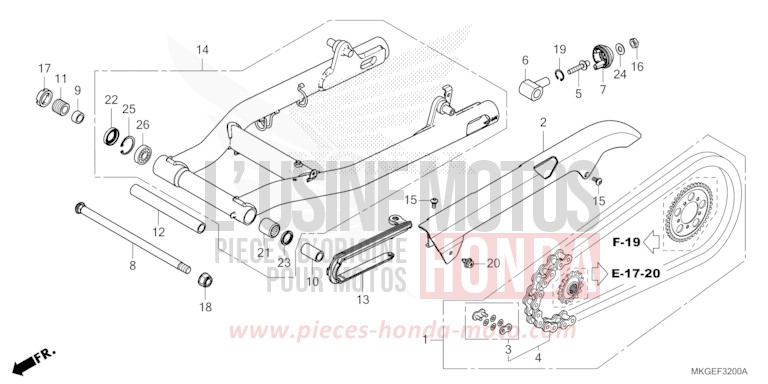

SWINGARM for CMX500 MAT AXIS GRAY METALLIC (NH303) from 2020

SWINGARM for CMX500 MAT AXIS GRAY METALLIC (NH303) from 2020
Reference
Product name
#1 06406-MKG-D80

CHAIN KIT, DRIVE (520-15&amp40T) (STANDARD LINK...

Price €271.42
#2 40510-K87-A00 i

CASE, DRIVE CHAIN

Price €20.09
#3 40531-K87-A01

JOINT, DRIVE CHAIN (RK)

Price €32.92
#3 40545-KYJ-902 i

JOINT, DRIVE CHAIN (DAIDO)

Price €23.30
#4 40540-K87-A02

CHAIN, DRIVE (RK) (RK520KLO2-120LJFZ) (STANDARD...

Price €183.08
#4 40540-KYJ-902 i

CHAIN, DRIVE (DAIDO) (DID520VF-120ZB) (STANDARD...

Price €223.68
#5 40542-K87-A00

BOLT, CHAIN ADJUSTING

Price €4.70
#6 40543-K87-A00

ADJUSTER COMP, CHAIN

Price €26.59
#7 40546-K87-A00

CAP, SWINGARM END

Price €23.44
#8 52101-K87-A00

BOLT, SWINGARM PIVOT

Price €19.61
#9 52105-K87-A00

COLLAR B, SWINGARM PIVOT

Price €6.46
#10 52106-KYJ-900

COLLAR, PIVOT

Price €12.17
#11 52109-K87-A00

BOLT, PIVOT ADJUSTING

Price €14.86
#12 52141-K87-A00

COLLAR, PIVOT DISTANCE

Price €12.04
#13 52170-K87-A00

SLIDER, CHAIN

Price €10.60
#14 52200-K87-A00

SWINGARM SUB ASSY, RR

Price €1,153.82
#15 90115-MGZ-J00

SCREW, SPECIAL, 6X14

Price €3.97
#16 90301-K87-A01

NUT, U, 10MM

Price €5.03
#17 90302-K87-A00

NUT, LOCK, 26X15

Price €18.32
#18 90305-KCJ-951

NUT, U, 14MM (FUJI SEIMITSU)

Price €7.32
#19 90651-K87-A00

CIRCLIP, INTERNAL, 20MM

Price €4.75
#20 90683-MBW-003 i

CLIP, BODY

Price €7.36
#21 91071-MJ0-003 i

BEARING, NEEDLE, 22X29X30 (NTN)

Price €42.76
#22 91213-MB2-006 i

DUST SEAL, 22X35X7 (NOK)

Price €8.64
#23 91283-ML7-003

DUST SEAL, 22X29X4 (ARAI)

Price €10.32
#24 94101-10700

WASHER, PLAIN, 10MM

Price €1.24
#25 94520-35000

CIRCLIP, INTERNAL, 35MM

Price €1.74
#26 96100-6202010

BEARING, RADIAL BALL, 6202

Price €13.20
