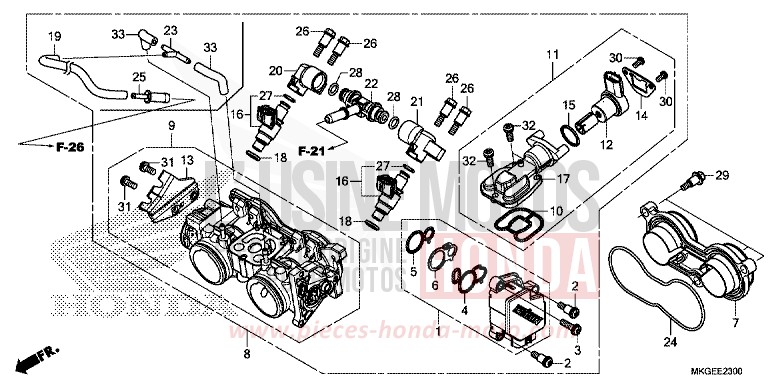

THROTTLE BODY for REBEL MAT AXIS GRAY METALLIC (NH303) from 2020

THROTTLE BODY for REBEL MAT AXIS GRAY METALLIC (NH303) from 2020
Reference
Product name
#1 16060-MKG-L01

ASSY. OF SENSOR

Price €135.29
#2 16081-KPH-701 i

SCREW OF CLAMP 5X8.7

Price €7.08
#3 16082-KPH-701 i

SCREW OF CLAMP 5X17

Price €7.08
#4 16083-MGZ-D01

O-RING, SENSOR

Price €36.72
#5 16084-MGZ-D01

O-RING, SENSOR

Price €34.39
#6 16085-MGZ-D01

PLATE

Price €44.39
#7 16188-MKG-A00

PLATE, FUNNEL SETTING

Price €21.35
#8 16400-MKG-D81

BODY ASSY, THROTTLE (GQB9A A)

Price €506.26
#9 16410-MKG-D81

BODY SET

Price €317.92
#10 16428-MGZ-D01

O-RING, VALVE OF CONTROL INJECTION AIR

Price €37.08
#11 16430-MJW-J01

ASSY. CLAPET, CONTROL AIR RALENTI

Price €349.44
#12 16431-MJP-G51

ASSY. ENGINE

Price €297.94
#13 16432-MGZ-D01

SUPPORT OF CABLE

Price €62.32
#14 16433-MEW-921

PLATE, CLAPET OF CONTROL D' AIR OF RALENTI

Price €24.89
#15 16435-MFJ-D01

O-RING, 17.8X1.9

Price €7.34
#16 16450-MKP-T02

ASSY. INJECTEUR FUEL

Price €115.55
#17 16451-MGZ-D01

COMP. BODY, CLAPET OF CONTROL AIR OF RALENTI

Price €165.59
#18 16472-MKP-T00

RING SEALING

Price €31.39
#19 16482-MKG-L01

TUBE, PURGE

Price €26.75
#20 16610-MKP-T01

PIPE FUEL (A)

Price €33.01
#21 16620-MKP-T01

PIPE FUEL (B)

Price €33.01
#22 16630-MFJ-D00

CONNECTOR EN T, FUEL

Price €54.25
#23 17201-MG9-000

CONNECTOR A OF PIPE OF DIDE

Price €27.36
#24 17215-MGZ-D00

GASKET SEALING, BODY DU PAPILLON DES THROTTLE

Price €3.37
#25 19126-KM1-010 i

CONNECTOR OF TUBE

Price €6.80
#26 90021-MGZ-D02 i

BOLT, EPAULE

Price €6.58
#27 91301-MKP-T01

O-RING

Price €12.46
#28 91301-PLC-000

O-RING, 7.47X3.6

Price €5.29
#29 91508-MM5-000

CYLINDRICAL HEAD SCREW, 5MM

Price €8.32
#30 93500-040081H

CYLINDRICAL HEAD SCREW, 4X8

Price €0.78
#31 93892-0501218 i

SCREW A HEAD A WASHER, 5X12

Price €1.34
#32 93892-0501418 i

SCREW A HEAD A WASHER, 5X14

Price €0.88
#33 95005-3504520 i

TUBE, 3.5X45 (95005-35001-20M)

Price €1.63
