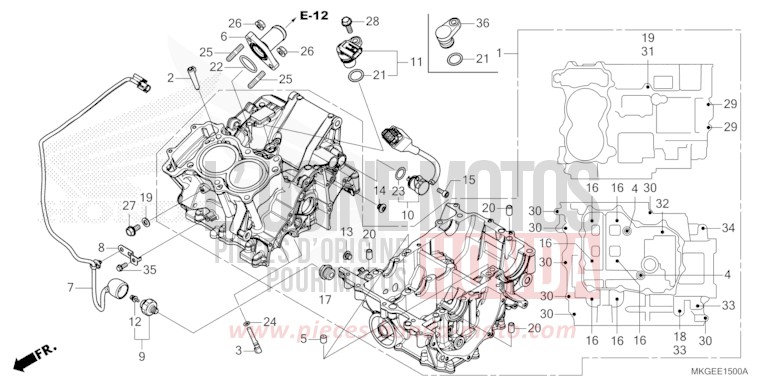

CRANKCASE for CMX500 MAT AXIS GRAY METALLIC (NH303) from 2020

CRANKCASE for CMX500 MAT AXIS GRAY METALLIC (NH303) from 2020
Reference
Product name
#1 11000-MKG-D80

CRANKCASE SET

Price €2,012.60
#2 11103-MGZ-J00

PIN, PARTITION

Price €5.80
#3 11140-MGZ-J00

JET COMP, OIL

Price €23.60
#4 12207-KYJ-900

BOLT, SEALING, 12MM

Price €3.25
#5 15515-MGZ-J00

ORIFICE A, 10MM

Price €3.16
#6 19060-MGZ-J00

JOINT, WATER

Price €22.48
#7 32102-MKG-A30

SUB HARNESS, OIL PRESSURE

Price €11.32
#8 32157-MGZ-J00

STAY, HARNESS CLIP

Price €5.00
#9 35500-MEH-661

SWITCH ASSY, OIL PRESSURE (DENSO)

Price €82.79
#10 35759-MKG-A31

SWITCH ASSY, CHANGE

Price €108.91
#11 37700-MJE-D01

SENSOR ASSY, SPEED (TDK-EPC)

Price €47.42
#12 90002-PA6-003

BOLT-WASHER, 4X8 (DENSO)

Price €6.14
#13 90005-MAZ-000

BOLT, SOCKET, 10MM

Price €5.71
#14 90009-MGZ-J00

BOLT, SOCKET, 10MM

Price €9.90
#15 90011-MGP-000

BOLT, SOCKET KNOCK, 6MM

Price €17.89
#16 90015-MGZ-J01

BOLT, UBS, 8X105

Price €15.95
#17 90048-MY5-600

BOLT, SEALING, 18MM

Price €17.57
#18 90442-028-000

WASHER, SEALING, 8MM

Price €5.71
#19 90463-ML7-000 i

WASHER, SEALING, 65MM

Price €4.62
#20 90701-MV9-670

DOWEL PIN, 10X16

Price €7.63
#21 91303-KF0-003 i

O-RING, 148X24 (ARAI)

Price €6.06
#22 91304-MCP-900

O-RING, 23X24

Price €7.57
#23 91305-KC1-850

O-RING, 165X25

Price €6.06
#24 91305-MCJ-751 i

O-RING, 32X11

Price €4.98
#25 92900-060160E

BOLT, STUD, 6X16

Price €1.98
#26 94050-06000 i

NUT, FLANGE, 6MM

Price €0.79
#27 95701-0601200 i

BOLT, FLANGE, 6X12

Price €1.15
#28 95701-0601800 i

BOLT, FLANGE, 6X18

Price €1.15
#29 95701-0603500 i

BOLT, FLANGE, 6X35

Price €1.34
#30 95701-0604008 i

BOLT, FLANGE, 6X40

Price €1.34
#31 95701-0609500

BOLT, FLANGE, 6X95

Price €3.06
#32 95701-0805500 i

BOLT, FLANGE, 8X55

Price €2.87
#33 95701-0807500

BOLT, FLANGE, 8X75

Price €3.06
#34 95701-1007500 i

BOLT, FLANGE, 10X75

Price €3.73
#35 96001-0601407 i

BOLT, FLANGE, 6X14

Price €1.34
# 11210-MJW-J00

PAN, OIL

Price €156.71
# 15010-MCE-H51 i

FILTER SET, OIL

Price €16.86
# 15010-MKR-305 i

FILTER SET, OIL

Price €16.86
# 15100-MGZ-J00

PUMP ASSY, OIL

Price €65.10
# 15131-MKP-D01

SPROCKET, OIL PUMP DRIVE (22T)

Price €30.46
# 15134-MGZ-J00

SPROCKET, OIL PUMP DRIVEN (16T)

Price €10.92
# 15141-MKP-D01

CHAIN, OIL PUMP (DID 25HT2-56LE)

Price €13.52
# 15150-MGZ-J00

STRAINER COMP, OIL

Price €27.90
# 15154-MAT-000

PACKING, OIL STRAINER

Price €11.04
# 15220-MGZ-J00

VALVE ASSY, RELIEF

Price €30.67
# 15410-MFJ-D01 i

CARTRIDGE, OIL FILTER (TOYO ROKI)

Price €16.86
# 15410-MFJ-D02 i

CARTRIDGE, OIL FILTER (WAKO FILTER)

Price €16.86
# 90010-MGZ-J00

BOLT, FLANGE, 6X28 (NSHF)

Price €2.98
# 90019-MGZ-J00

BOSS, OIL FILTER

Price €6.08
# 90021-MGZ-J00

BOLT-WASHER, 6X12

Price €8.03
# 90131-883-000 i

BOLT, DRAIN PLUG, 12X15

Price €4.84
# 91313-MB0-003 i

O-RING, 147X22 (ARAI)

Price €9.58
# 94109-12000 i

WASHER, DRAIN PLUG, 12MM

Price €1.78
# 94301-08140 i

DOWEL PIN, 8X14

Price €2.05
