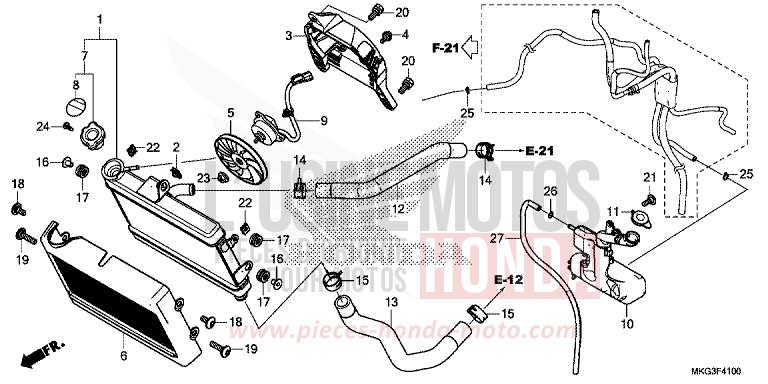

RADIATOR for CMX500 MAT ARMORED SILVER METALLIC (NHB89) from 2017

RADIATOR for CMX500 MAT ARMORED SILVER METALLIC (NHB89) from 2017
Reference
Product name
#1 19010-MKG-D51

RADIATOR COMP (TRAD)

Price €568.73
#2 19014-KEA-003

NUT, SETTING (6MM)

Price €6.47
#3 19015-K87-A01

SHROUD COMP

Price €20.08
#4 19016-KEA-003

SCREW, PAN, 4X85

Price €5.90
#5 19020-KVZ-631

FAN COMP, COOLING

Price €95.21
#6 19032-K87-A00

GRILLE, RADIATOR

Price €43.50
#7 19037-KZZ-G41

CAP COMP, RADIATOR (TRAD)

Price €59.12
#8 19046-MCA-G61

LABEL, RADIATOR CAP (TRAD)

Price €12.17
#9 19080-K87-A01

MOTOR ASSY, FAN

Price €292.70
#10 19101-K87-A00

TANK, RADIATOR RESERVE

Price €37.16
#11 19109-KBP-900

CAP, RESERVE TANK

Price €3.49
#12 19501-MKG-A00

HOSE, RADIATOR UPPER

Price €37.64
#13 19502-MKG-A00

HOSE, RADIATOR LOWER

Price €29.32
#14 19531-MJW-J00

CLIP, WATER HOSE (D27)

Price €5.33
#15 19533-MJW-J00

CLIP, WATER HOSE (D30)

Price €7.16
#16 61102-KTY-D30

COLLAR, RADIATOR MOUNTING

Price €9.36
#17 61304-415-000

RUBBER, HEADLIGHT CASE MOUNTING

Price €7.38
#18 90111-K87-A00

SCREW, SPECIAL, 6X14

Price €3.12
#19 90112-K87-A00

SCREW, SPECIAL, 6X25

Price €2.98
#20 90120-KCR-003

BOLT-WASHER, 6X16

Price €8.38
#21 90134-KPP-T00

SCREW, PAN, 5X14

Price €3.49
#22 90303-MGZ-J40

NUT, CLIP, 6MM

Price €5.10
#23 90315-MFL-003

NUT, FLANGE, 3MM

Price €5.09
#24 93901-22020

SCREW, TAPPING, 3X6

Price €0.62
#25 95002-02100

CLIP, TUBE (B10)

Price €1.06
#26 95002-50000

CLIP, TUBE (C9)

Price €0.77
#27 95005-5041030

TUBE, 5X410 (95005-50001-30M)

Price €6.94
